Quick Details
-
Brand Name:
-
Kampa
-
Theory:
-
inductive sensor
-
Output:
-
DC
-
Description:
-
Proximity Sensor
-
Product name:
-
Inductive Proximity Switch
-
Sensing surface:
-
Front surface
-
Sensing distance:
-
4mm
-
Hysteresis:
-
≤10% of sensing distance
-
Secure sensing distance:
-
≤3.2mm
-
Output form:
-
DC
-
Standard sensing object:
-
Iron 18x18x1mm
-
Operating voltage:
-
DC10~30V
-
Housing:
-
ABS
-
Protection degree:
-
IP67
Quick Details
-
Use:
-
distance sensing
-
Model Number:
-
SN04-N
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kampa
-
Theory:
-
inductive sensor
-
Output:
-
DC
-
Description:
-
Proximity Sensor
-
Product name:
-
Inductive Proximity Switch
-
Sensing surface:
-
Front surface
-
Sensing distance:
-
4mm
-
Hysteresis:
-
≤10% of sensing distance
-
Secure sensing distance:
-
≤3.2mm
-
Output form:
-
DC
-
Standard sensing object:
-
Iron 18x18x1mm
-
Operating voltage:
-
DC10~30V
-
Housing:
-
ABS
-
Protection degree:
-
IP67
SN04-N Inductive Proximity Sensor 4mm Sensing Distance DC10-30V Front Sensing Proximity Switch
Product Features
*Economic and simple operation.
*Long service life,high reliability and strong resistance property state.
*Red LED indicated and available to detect the sensor operating state.
*IP67 protection structive(ICE specification).
Product Description
| Output Method | NPN NO | SN04-N |
| NPN NC | SN04-N2 | |
| PNP NO | SN04-P | |
| PNP NC | SN04- P2 |
| Sensing surface | Front surface |
| Sensing Distance | 4mm |
| Secure Sensing Distance | ≤3.2mm |
| Hysteresis | ≤10% of sensing distance |
| Standard Sensing Object | Iron 18x18x1mm |
| Protection Loop | Polarity loop protection and output short-circuit protection |
| Response Frequency | 600Hz |
| Operating Voltage | 10~30 VDC |
| Current Consumption | ≤8 mA no-load |
| Load Current | 200 mA Max |
| Leakage Current | ≤1.1 mA no-load |
| Residual Voltage | ≤0.7VDC |
| Insulation Resistance | 20 MΩ min (500VDC) |
| Operating Temperature | -25℃ ~ +70 ℃ |
| Housing | ABS |
| Protection Degree | IP67 |
| Wiring Method | pre-wire ∅3.8x2m / 3-wires |
| Weight | Approx. 60g |

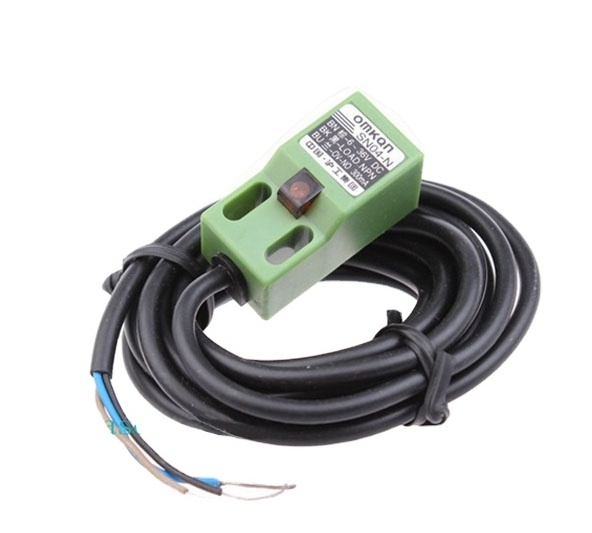

Product Show
