is the professional manufacturer of hydraulic lifts for 12 years. Our factory covers 78500 square meters and has a series of modern production equipment, like auto cutting equipment, automatic equipment, automatic abrasive blasting production rust removal line. spray paint line, automatic welding robot and so on. We have been exporting to different many countries for 5 years on Alibaba.
Welcome to visit our factory and test our machines' quality, Sincerely.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3.0kw
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
1500x1400x800mm
-
Overall Dimensions:
-
1850x1450mmx8300mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
vertical platform lift wall mounted basement hydraulic cargo
-
Power source:
-
AC power available at work place
-
Material:
-
high strength manganese steel
-
Sealing elelments:
-
Valqua, Japan
-
Hydraulic station:
-
Italy & China joint venture brand
-
Working pressure:
-
16Mpa
-
Safety devices:
-
installed
-
Heavy chain:
-
low speed heavy duty precision
-
Limit switch:
-
Omron brand
-
Control mode:
-
electric rise and down
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SUN-LIFT
-
Power:
-
3.0kw
-
Min. Lifting Height:
-
customizable
-
Table Size:
-
1500x1400x800mm
-
Overall Dimensions:
-
1850x1450mmx8300mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
vertical platform lift wall mounted basement hydraulic cargo
-
Power source:
-
AC power available at work place
-
Material:
-
high strength manganese steel
-
Sealing elelments:
-
Valqua, Japan
-
Hydraulic station:
-
Italy & China joint venture brand
-
Working pressure:
-
16Mpa
-
Safety devices:
-
installed
-
Heavy chain:
-
low speed heavy duty precision
-
Limit switch:
-
Omron brand
-
Control mode:
-
electric rise and down
WHY CHOOSE US--
"Quality first, Technology leading, Cooperation and Win-win".
1. Founded
In 2010
, a collection of Scientific Research, Production, Sales of Lifts
Professional Manufacturing Enterprise
2. Advanced Production Equipment , we innovate the products usually.
3. We can Customize products according to customs’ specific requirements.
4. We have advantages of quick delivery, Factory Price & 24/7 service to our customers.
2. Advanced Production Equipment , we innovate the products usually.
3. We can Customize products according to customs’ specific requirements.
4. We have advantages of quick delivery, Factory Price & 24/7 service to our customers.
Product Description

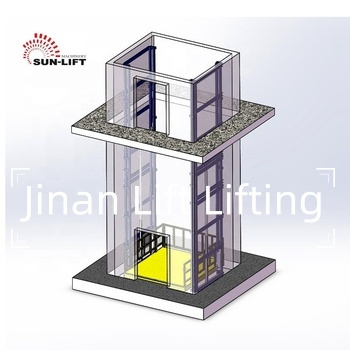

Factory Selling Warehouse small goods lift guide rail electric vertical platform lift wall mounted basement hydraulic cargo lift With CE
The basement hydraulic cargo lift is used for cargo transportation between different floors, with flexible lifting range, wide platform size and large loading capacity, simple operation and reliable which is very convenient for work. It is widely used in the factory, warehouse, shopping centers, supermarkets, airports, stations, buildings etc.
|
Specifications
of
Cargo Lift
(
Customizable
)
|
|
|
|
|
|
|||||
|
Model
|
Rated capacity
|
Max. lifting height
|
Platform size
|
Direction of load or unload
|
Power
|
|||||
|
SJD1.0-4.5
|
1000kg
|
4500mm
|
1500x1600mm
|
1500mm
|
2.2kw
|
|||||
|
SJD2.0-9.4
|
2000kg
|
9400mm
|
4500x4000mm
|
4500mm
|
5.5kw
|
|||||
|
SJD3.5-5
|
3500kg
|
5000mm
|
2600x1800mm
|
1800mm
|
4kw
|
|||||
|
SJD4-11
|
4000kg
|
11000mm
|
3200x2900mm
|
2900mm
|
7.5kw
|
|||||
NOTE : Please let us know the following and we will send you exact good price to you asap:
1) Max. lifting height?
2)Max. loading capacity?
3)Upper platform size (WxD) or shaftway size ( WxD )?
4)Direction of loading or unloading goods?
Main Features
1) Overload protection devices are available.
2) Lift system has the ani-drop function when any failure happens.
3) Hydraulic cylinder as main driving force and the heavy chain and wire rope to guarantee lifting security and stability.
4) Hydraulic lifting system and electric hierarchical control, multi control points at the different floors could be realized.
5)
Its self height is only 150-300mm, usually 150-300mm lift pit or no need to dig lift pit.
6) Emergency manual valve: In case power off, the lift can be lowered by manually
Detailed Images
Upper platform: anti-skid checkered plate
Electric control box and hierarchical control
Hydraulic station
Heavy lifting chain
High quality guardrail
Guide rails:high strength manganese steel
Certifications
Our Service
JINAN LIFT LIFTING MACHINERY CO.,LTD
Pre-Sales Service
* Technical supports and suggestions before you order a machine according to your work place.
* All the machines will be full tested before shipments
* View our Factory.
After-Sales Service
* Operation manual and installation manual
* Engineers available to service machinery overseas.
* 12 months warranty period and we will provide the consumable parts at cost price after the warranty period
* 24-hour technical support by emails, calling or videos
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
as per special model
|
|
|
Weight
|
as per special model
|
|
|
Packaging Details
|
The normal package is plywood case (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
