- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110V/220V
-
Power:
-
60W
-
Dimension(L*W*H):
-
76*50*85
-
Weight (KG):
-
35
Quick Details
-
Machine Type:
-
powder coating machine, Painting Equipment, Coating Equipment
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
DY
-
Voltage:
-
110V/220V
-
Power:
-
60W
-
Dimension(L*W*H):
-
76*50*85
-
Weight (KG):
-
35
Products Description
|
The latest spray gun of powder coating machine produced by our company adopts the latest advanced technology to improve the application performance and optimize the sense of use.
|
|
|
|
|
|
|
|
|
|
|
|
voltage
|
110V/220V
|
|
|
Power
|
50W
|
|
|
Frequency
|
50~60Hz
|
|
|
Max Output Current
|
150 μA
|
|
|
Output Voltage
|
100 KV
|
|
|
Working Temperature Range
|
-10 ~45°C
|
|
The smart controller
The built-in 100kv negative cascade maximizes the loading capacity and can maintain high transfer efficiency even if used for a long time.
The built-in 100kv negative cascade maximizes the loading capacity and can maintain high transfer efficiency even if used for a long time.
* Fast release coupling for easy and effective cleaning during color changes.
* Lightweight and ergonomic design makes it easy for operators to get the job done.
* Strong construction and high quality materials make this gun last longer.
* Compressed air connection 1/4" male quick release
* Compressed air connection 1/4" male quick release
* Max. input pressure 10 bar / 145 psi
* Min. input pressure (while unit in operation) 6 bar / 87 psi
* Max. water vapor content of the compressed air 1.3 g/m³
* Max. oil vapor content of the compressed air 0.1 mg/m³
Specification

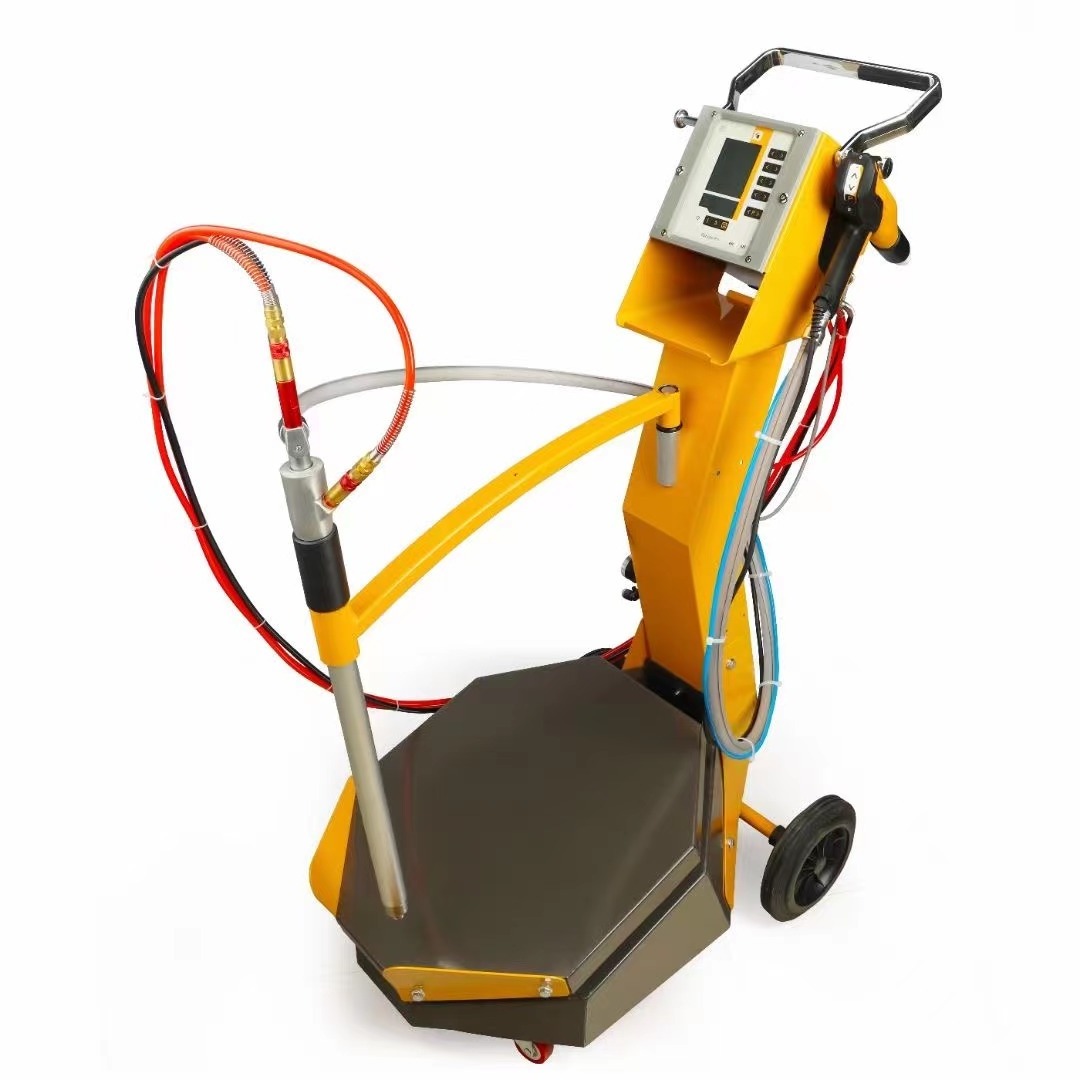

Controller electrostatic metal powder coating sprayer with gun
1) Intelligence
2) Multi-functional
3) Deep Angle, repaint one key operation
4) Gun remote high-pressure control
5) All numerical values are displayed
Powder pump
1) Insert with pure Teflon material, which is not easy to stick powder
2) The conductive ring is connected with the powder tube
3) Reduce the possibility of powder adsorption on the powder pump
4) Reduce the damage of high-speed fluidized powder to the pump body
Powder gun
1) Anti-static wear-resistant materials for spray guns
2) Ensure high voltage and service life
3) The remote control button is on the back of the gun
4) The amount of powder and procedure can be adjusted at any time.
Spare part
Flat mouth + round mouth + duster sleeve
Powder hose
1) High quality rubber material.
2) Good flexibility, can be bent at any Angle, no crease.
3) Including ground wire.
Reduce the possibility of powder adsorption on the powder hose.
4) Extend the service life of the powder hose.
Suction tube
1) The use of high-quality aluminum alloy, not easy to deformation, long service life.
2) Self-cleaning, easy to change color.
3) Use the bottom fluidization ring of the shaking table.
4) The fluidizing ring further fluidizes the powder.
The fluidization effect is the best.
|
No
|
Item
|
Data
|
|
1
|
Voltage
|
110v/220v
|
|
2
|
Frenquency
|
50/60HZ
|
|
3
|
Input power
|
50W
|
|
4
|
Max. output current
|
200ua
|
|
5
|
Output power voltage
|
0-100kv
|
|
6
|
Input Air pressure
|
0.3-0.6Mpa
|
|
7
|
Powder consumption
|
Max 550g/min
|
|
8
|
Polarity
|
Negative
|
|
9
|
Gun weight
|
480g
|
|
10
|
Length of Gun Cable
|
4m
|
