Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
gigabit poe switch
-
Connector Type:
-
7 x 10/100/1000M copper RJ-45 port+1uplink port
-
Bandwidth:
-
16Gbps
-
PoE Standard:
-
NO
-
Data transmission distance:
-
100m
-
shell:
-
steel case
-
Operating temperature:
-
0 ~ 55°C
-
Voltage:
-
12V/24VDC
-
Power pin:
-
45+,78-
-
Warranty:
-
36 month
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
gigabit poe switch
-
Connector Type:
-
7 x 10/100/1000M copper RJ-45 port+1uplink port
-
Bandwidth:
-
16Gbps
-
PoE Standard:
-
NO
-
Data transmission distance:
-
100m
-
shell:
-
steel case
-
Operating temperature:
-
0 ~ 55°C
-
Voltage:
-
12V/24VDC
-
Power pin:
-
45+,78-
-
Warranty:
-
36 month

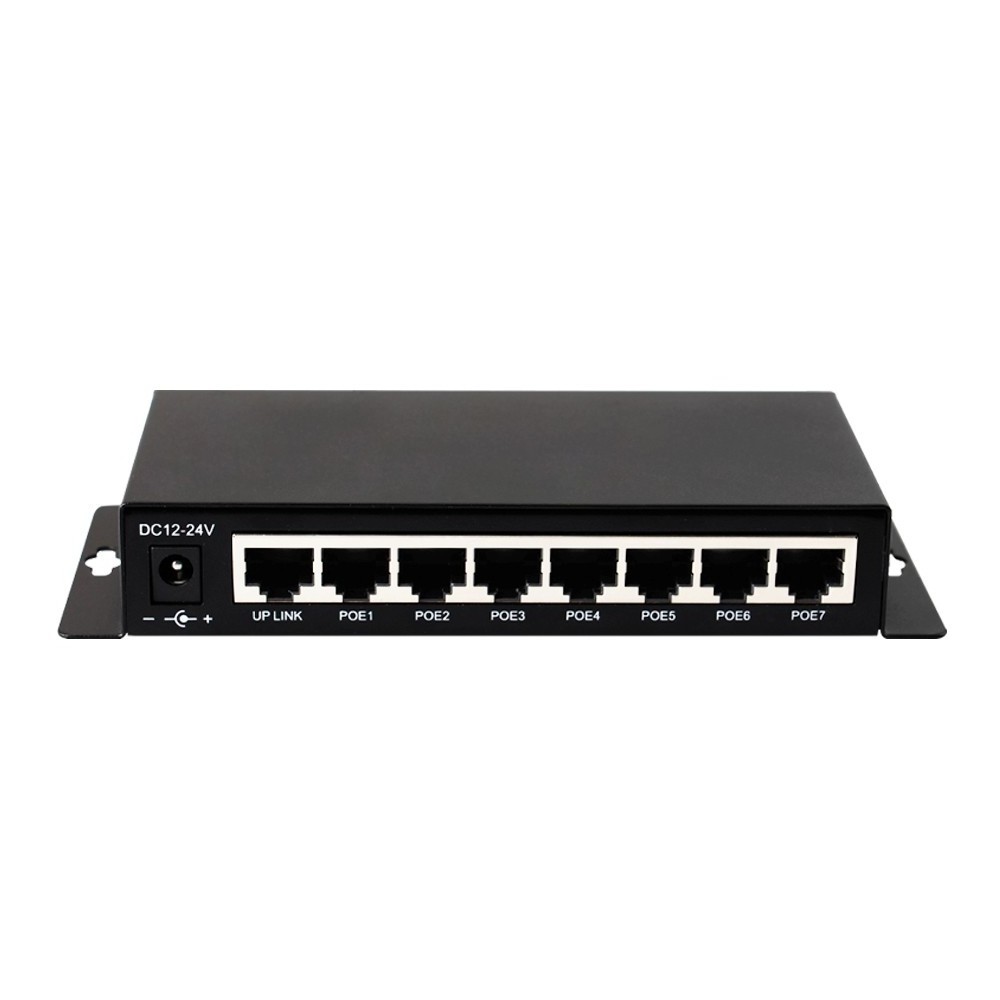

Stable quality 45+ 78- power pin 8 port passive gigabit poe switch
Technical Parameter
| Product Name |
8-Port Non-standard POE swit ch - 30m / 12V / Mid-span 100 m / 24V / Mid-span |
| Model | HR-FBG-71 |
| Connector Type | 8x 10/100/1000M copper cable RJ45 ports(7 PoE ports+1 Uplink) |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| Bandwidth | 16Gbps (non-blocking) |
| Address Database Size | 1K |
| MTBF | 190,000 hours (about 21 years) |
| Forwarding Mode | Store-And-Forward |
| Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
| LED Display | System: power supply; Every Port: connecting, PoE working status |
| Power Supply | Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
| PoE Ports | Port1-7 support POE |
|
PoE Port
Power |
15.4W for each POE port |
| PoE Standard | NO |
| PoE Feature | All ports support MDI/MDIX |
|
Working
Environment |
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%,non-condensing |
| Certification | 3C,CE Mark ,commercial; CE/LVD EN60950, RoHS |
| Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
| Transmission Distance | 100m |
| Dimension | 15.2*7.2*2.6cm, Net Weight: 0.91kg |
| Power Pin | 45+,78- |
| Warranty | 3 year warranty(1 yeas warranty for power adapter) |
