- Product Details
- {{item.text}}
Quick Details
-

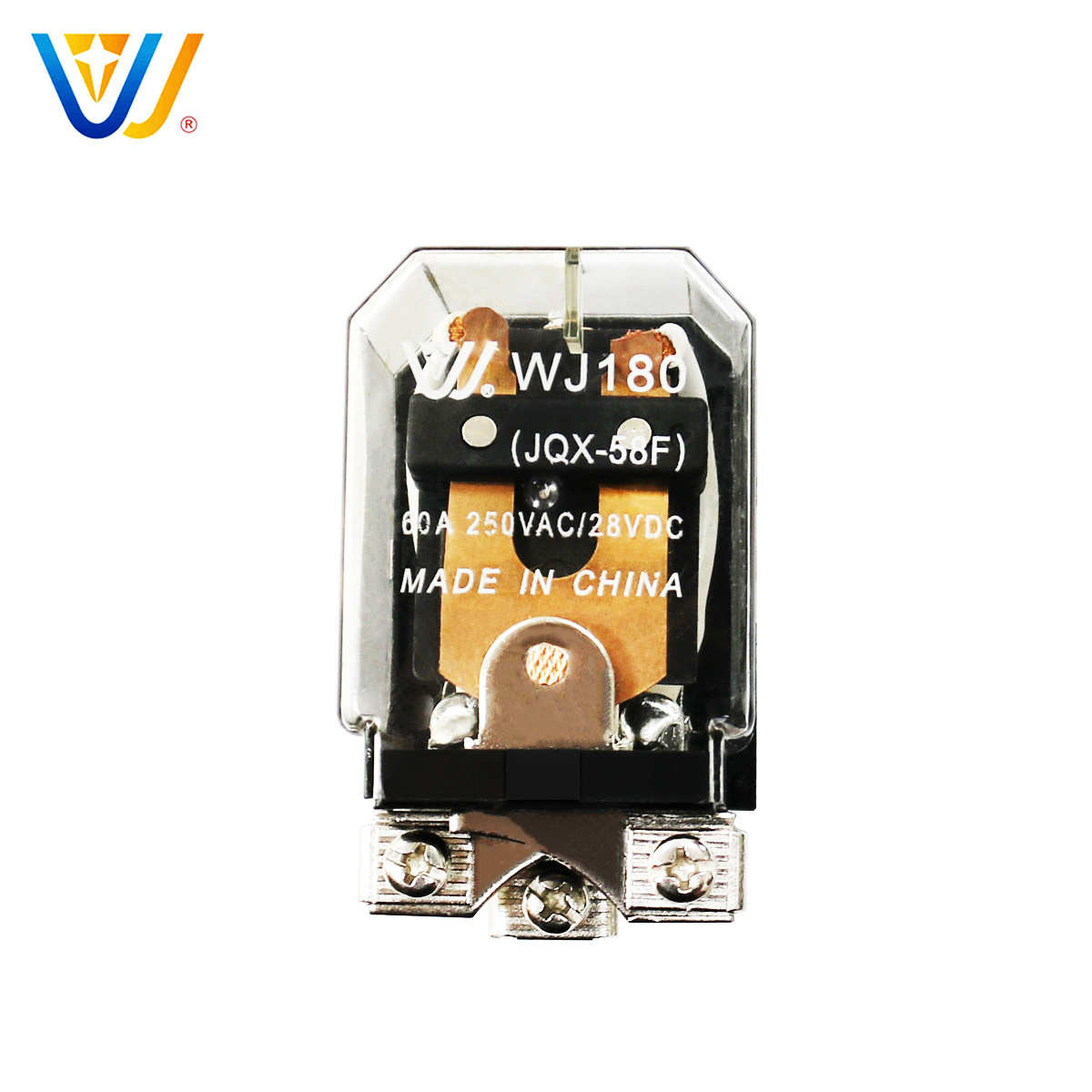

Model Number:
-
WJ180
-
Product name:
-
electrical equipment supplies 60a 250vac relay
-
Type:
-
General Purpose Power Relays
-
Condition:
-
100% Original
-
Load Current:
-
60A
-
Certifications:
-
TUV CCC CE RoHS
-
Color:
-
White
-
Contact material:
-
AgSnO2
-
Shipping By:
-
DHL\UPS\Fedex\EMS\China Post\HongKong Post
-
Coil voltage:
-
6/9/12/24VDC
-
Application:
-
Widely Used Relay
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
wanjia star
-
Model Number:
-
WJ180
-
Product name:
-
electrical equipment supplies 60a 250vac relay
-
Type:
-
General Purpose Power Relays
-
Condition:
-
100% Original
-
Load Current:
-
60A
-
Certifications:
-
TUV CCC CE RoHS
-
Color:
-
White
-
Contact material:
-
AgSnO2
-
Shipping By:
-
DHL\UPS\Fedex\EMS\China Post\HongKong Post
-
Coil voltage:
-
6/9/12/24VDC
-
Application:
-
Widely Used Relay
|
Main Parameters
|
|
|
||
|
Contact Arrangement
|
|
1A、1B、1C
|
||
|
Contact Material
|
|
Silver Alloy
|
||
|
Contact Resistance
|
|
Max.50mΩ
|
||
|
|
|
60A 250VAC
|
||
|
|
|
60A 28VDC
|
||
|
Max. Switching Voltage
|
|
28VDC/250VAC
|
||
|
Max. Switching Current
|
|
60A
|
||
|
Max. Switching Power
|
|
1680W/15000VA
|
||
|
Electrical Life
|
|
2×10
4
|
||
|
Mechanical Life
|
|
1×10
7
|
||
|
|
DC
|
2.6W
|
||
|
|
AC
|
5.5VA
|
||
|
|
DC
|
6～220VDC
|
||
|
|
AC
|
6～220VAC
|
||
|
Other Parameters
|
|
|
|
|||
|
Pick-up Time
|
|
|
Max.25ms
|
|||
|
Release Time
|
|
|
Max.25ms
|
|||
|
|
Coil Contacts
|
|
2500VAC,(50/60Hz),1 min.
|
|||
|
|
Open Contacts
|
|
1500VAC,(50/60Hz),1 min.
|
|||
|
Insulation Resistance
|
|
|
Min. 1000MΩ (500 VDC)
|
|||
|
Environment Temperature
|
|
|
-40℃～+55℃
|
|||
|
Operation Humidity
|
|
|
45%~85% RH
|
|||
|
|
Functional
|
|
Min. 10G
|
|||
|
|
Destructive
|
|
Min. 100G
|
|||
|
|
Functional
|
|
1.5mm（DA）10~55 Hz
|
|||
|
|
Destructive
|
|
1.5mm（DA）10~55 Hz
|
|||
|
Weight
|
|
|
≤180g
|
|||
