Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
Z5140B
-
Weight (KG):
-
1350 KG
-
Core Components:
-
OTHERS
-
Max. drilling diameter:
-
50
-
Application:
-
Metal processing
-
After-sales Service Provided:
-
Online support
Quick Details
-

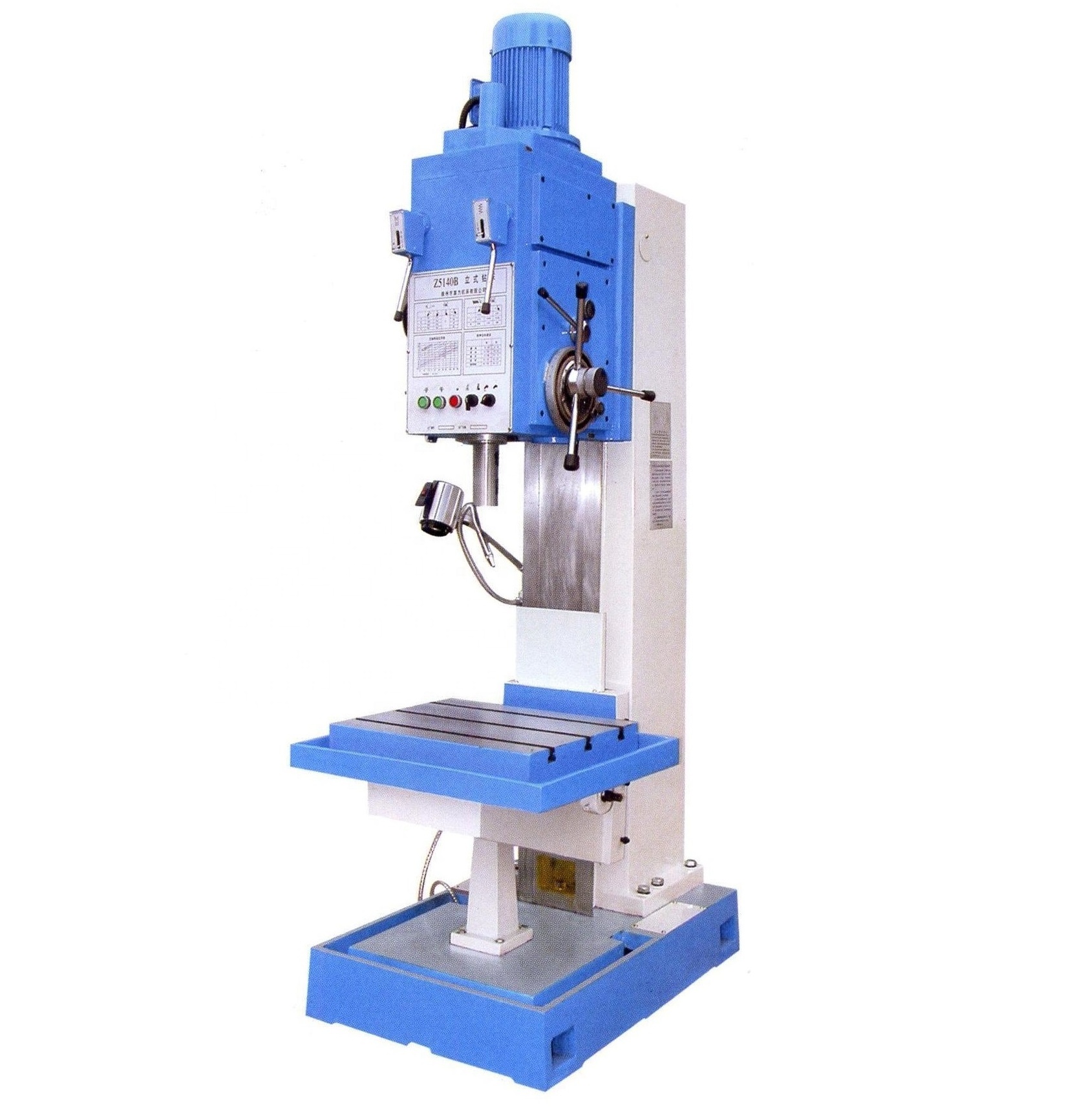

type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
50
-
Range of Spindle Speed(r.p.m):
-
31 - 1400 r.p.m
-
Place of Origin:
-
China
-
Model Number:
-
Z5140B
-
Weight (KG):
-
1350 KG
-
Core Components:
-
OTHERS
-
Max. drilling diameter:
-
50
-
Application:
-
Metal processing
-
After-sales Service Provided:
-
Online support
PRODUCT DESCRIPTION
|
Specific ation
|
Z5140B
|
|
Max drilling diameter
|
50mm
|
|
Spindle taper
|
MT4
|
|
Max taping capacity
|
M30X3
|
|
Stroke of spindle quill
|
250mm
|
|
Spindle box travel(manual)
|
200mm
|
|
Spindle speed step
|
12
|
|
Spindle speed range
|
31.5-1400r.p.m
|
|
Spindle feed step
|
9
|
|
Spindle feed range
|
0.056-1.80mm/min
|
|
Table size
|
560x480mm
|
|
Vertical travel
|
300mm
|
|
Max distance between spindle and table surface
|
750mm
|
|
Main motor power
|
3kw
|
|
Motor of cooling pumps
|
40w
|
|
Speed of cooling pumps
|
25L/min
|
|
T-slot NO./width/distance of table
|
3/18/150 mm
|
|
Overall size
|
1090x910x2465mm
|
|
Net weiaht
|
1350kg
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
