Quick Details
-
Productivity:
-
100/55 m3/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Chinese Top Brand
-
Weight:
-
35000 kg
-
Model:
-
ZLJ5360THBJF 52X-6RZ
-
Driving type:
-
6*4
-
Chassis:
-
Sinotruk
-
Theoretical output:
-
100m³/h
-
Max.reach height:
-
29.6m
-
Product name:
-

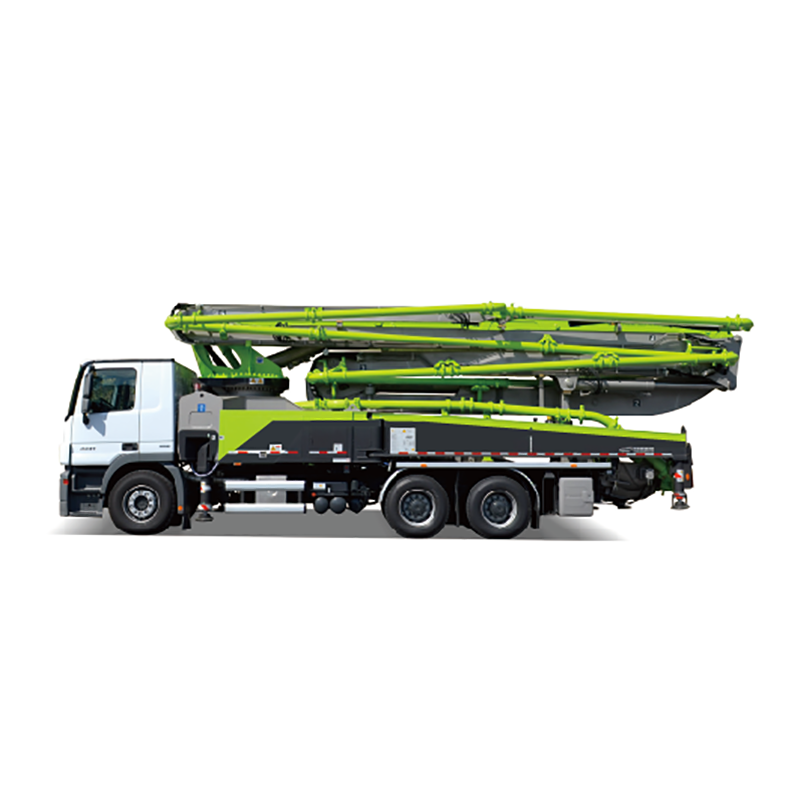

Truck-Mounted Concrete Boom Pump
-
Chassis model:
-
Arocs 346E6 6X4
-
Emission Standards:
-
Tire 6
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
48.6M
-
Max. horizontal conveying distance:
-
43.6M
-
Productivity:
-
100/55 m3/h
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Chinese Top Brand
-
Weight:
-
35000 kg
-
Model:
-
ZLJ5360THBJF 52X-6RZ
-
Driving type:
-
6*4
-
Chassis:
-
Sinotruk
-
Theoretical output:
-
100m³/h
-
Max.reach height:
-
29.6m
-
Product name:
-
Truck-Mounted Concrete Boom Pump
-
Chassis model:
-
Arocs 346E6 6X4
-
Emission Standards:
-
Tire 6
Contact me
Super Su Sales manager
Phone number/Whatsapp：+86 18569431204
Email:super@sinomada.com
Web: www.sinomada.com
Any machines pls feel free to contact me. Looking forward to your news!
Product Details
Product Description
• Compact in design, 52m pump mounted on a 4-axle truck
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data agement,
real-time diagnostics, alarm logging, and service interval notice.
real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual -machine interface system.
• PWM+CAN dual communication mode remote control.
• Compact in design, 52m pump mounted on a 4-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data
agement, real-time diagnostics, alarm logging, and service interval notice.
agement, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Damping technology boom.
• Boom stabilization control.
• Multilingual -machine interface system.
• PWM+CAN dual communication mode remote control.
Product parameters
|
Pump Unit
|
Max. Output
|
180 m3/h
|
|
|
Max. Concrete Output Pressure
|
9 MPa
|
|
|
Rated Working Pressure
|
35 Mpa
|
|
|
Pumping Frequency
|
27 min-1
|
|
|
Hopper Capacity
|
600 L
|
|
|
Filling Height
|
1540 mm
|
|
|
Hydraulic System Type
|
Closed Loop
|
|
|
Distribution Valve
|
S valve
|
|
|
Oil Cylinder Dia.*Stroke
|
ψ130*2100 mm
|
|
|
Concrete Cylinder Dia.*Stroke
|
ψ 230*2100 mm
|
|
|
Hydraulic Oil Cooling
|
Wind cooling
|
|
|
Max. Aggregatte Dimension
|
40 m
|
|
|
|
|
|
Boom Section
|
Placing Depth
|
52 m
|
|
|
Max. Horizontal Distance
|
48 m
|
|
|
Max. Placing Depth
|
37.6 m
|
|
|
Slewing Angle
|
±270°
|
|
|
Boom Number
|
6
|
|
|
The Length of Boom Section
|
10410/9120/8690/9680/6600/3500 mm
|
|
|
Sections Folding Angle
|
90°/180°/180°/240°/195°/210°
|
|
|
Pipe Diameter
|
125 mm
|
|
|
End Hose Length
|
3000 mm
|
|
|
Min. Height of Opening Placing Boom
|
10900 mm
|
|
|
Outriggers Span(front*rear*side)
|
9300*11975*10422 mm
|
