Quick Details
-
Brand Name:
-
JSY
-
Model Number:
-
JSY-MK-339
-
Accuracy Class:
-
±1
-
Output Voltage:
-
0-380V
-
Operating Temperature:
-
-20~+60℃
-
Dimensions:
-
/
-
Product name:
-

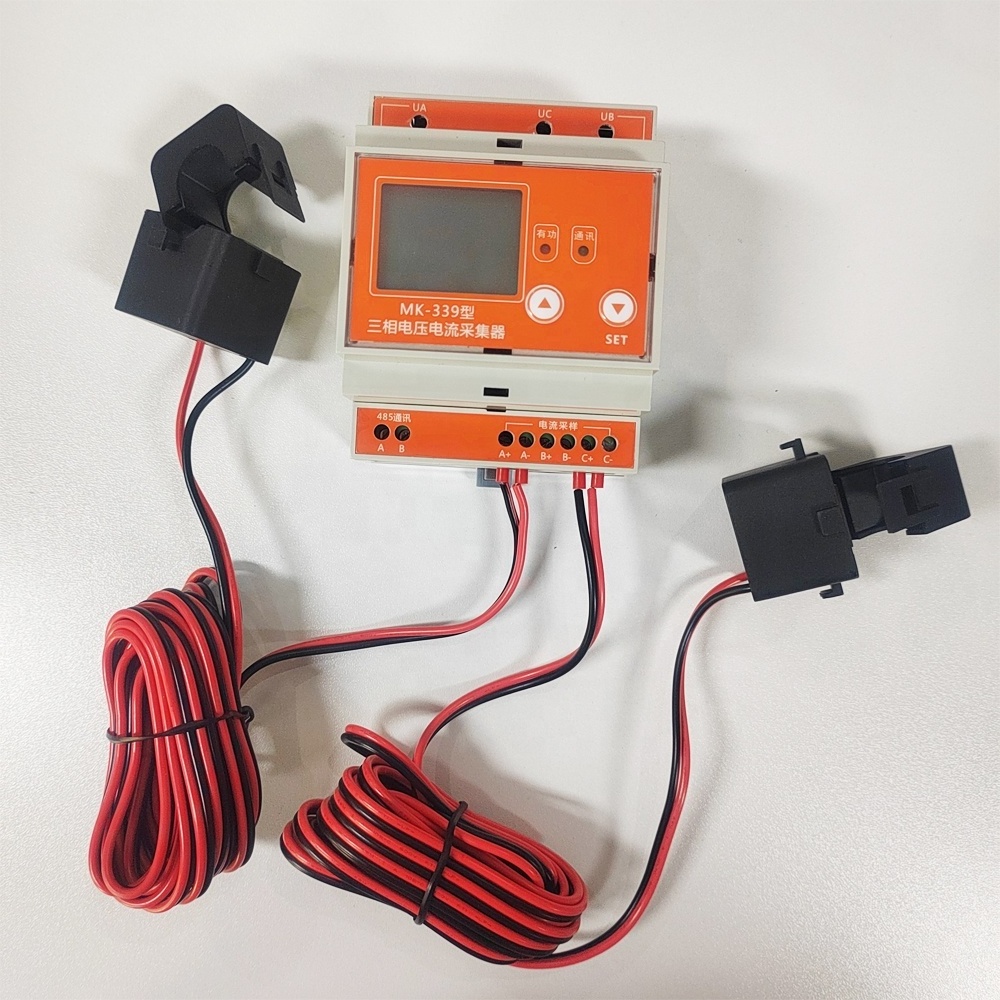

Three-phase energy meter
-
Voltage range:
-
AC 0-380V
-
Current range:
-
AC 0-100A
-
Voltage resolution:
-
0.01V
-
Current resolution:
-
0.1mA
-
Power resolution:
-
0.01kWh
-
Communication protocol:
-
MODBUS-RTU
-
Application:
-
Measurement Voltage
-
Measure:
-
Active Electronic Power Metering
-
Keyword:
-
Energy meter
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-9999kwh
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JSY
-
Model Number:
-
JSY-MK-339
-
Accuracy Class:
-
±1
-
Output Voltage:
-
0-380V
-
Operating Temperature:
-
-20~+60℃
-
Dimensions:
-
/
-
Product name:
-
Three-phase energy meter
-
Voltage range:
-
AC 0-380V
-
Current range:
-
AC 0-100A
-
Voltage resolution:
-
0.01V
-
Current resolution:
-
0.1mA
-
Power resolution:
-
0.01kWh
-
Communication protocol:
-
MODBUS-RTU
-
Application:
-
Measurement Voltage
-
Measure:
-
Active Electronic Power Metering
-
Keyword:
-
Energy meter
|
Project
|
|
Technical parameter
|
|
|
Measurement
|
Load type
|
Three-phase communication
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage range
|
100V, 220V, 380V, etc. optional
|
|
|
|
Current range
|
5A, 20A, 50A, 100A, 200A, 300A, 400A, 500A, etc. optional; external open-ended current transformer models are optional
|
|
|
|
Voltage resolution
|
0.01V
|
|
|
|
Current resolution
|
0.1mA
|
|
|
|
Power resolution
|
0.01W
|
|
|
|
Power resolution
|
0.01kWh
|
|
|
communication
|
Interface Type
|
1 RS485 communication interface
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Communication protocol
|
MODBUS-RTU
|
|
|
|
Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2"Data Format
|
Can be set, "n,8,1", "e,8,1", "o,8,1", "n,8,2"; default "n,8,1"
|
|
|
|
Baud rate
|
Can be set to 2400, 4800, 9600bps, the baud rate defaults to 9600bps
|
|
|
|
|
|
|
|
|
mailing address
|
The default address is 1, which can be set
|
|
|
performance
|
Typical power consumption
|
≤10mA
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power supply
|
AC 3x220V/380
|
|
|
|
Overload capacity
|
1.2 Imax sustainable
|
|
|
working environment
|
Operating temperature
|
-30～+70℃; storage temperature: -40～+85℃
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Relative humidity
|
5～95%, no condensation (under 40℃)
|
|
|
|
working environment
|
There is no explosion, corrosive gas and conductive dust, no significant shaking, vibration and impact place
|
|
|
size
|
size
|
90.2*71*57.5mm
|
|
|
Installation method
|
Installation method
|
35mm standard DIN rail installation or screw fixed installation hole distance is 104*70M
|
|
