Quick Details
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
2.8*1.2*0.9M
-
Application:
-
furniture, Plywood Boards
-
Weight (KG):
-
600 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
120mm
-
Max. Length of Workpiece (mm):
-
280mm
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
cnc wood panel cutting saw
-
Color:
-
Support Customized
-
length of cut::
-
3100mm
-
Cutting material:
-
Plywood MDF
-
Function:
-
Cutting Shape
-
Spindle speed::
-
4000/6000mm
-
Feature:
-
Eco-Friendly
-
weight:
-
600kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guandiao
-
Usage:
-
Wood Cutting
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
2.8*1.2*0.9M
-
Application:
-
furniture, Plywood Boards
-
Weight (KG):
-
600 KG
-
Power (kW):
-
5.5
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
120mm
-
Max. Length of Workpiece (mm):
-
280mm
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
cnc wood panel cutting saw
-
Color:
-
Support Customized
-
length of cut::
-
3100mm
-
Cutting material:
-
Plywood MDF
-
Function:
-
Cutting Shape
-
Spindle speed::
-
4000/6000mm
-
Feature:
-
Eco-Friendly
-
weight:
-
600kg

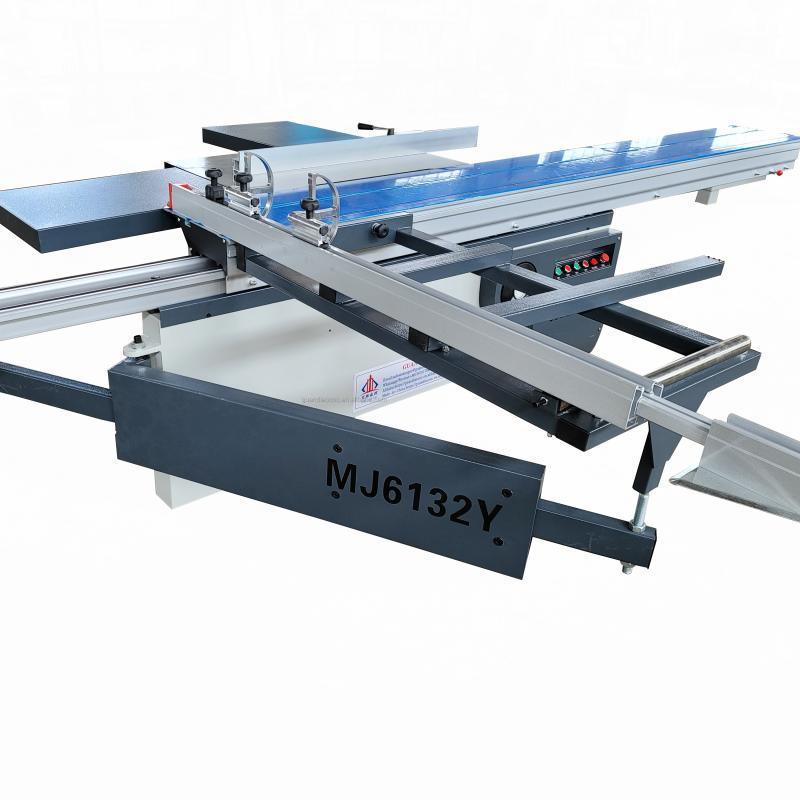

multi-blade manufacturer price Woodworking panel saw MDF kitchen cabinet sliding table saw for large wooden keel square wood
Product Description
Specification
|
Mode
|
2.8m 45° MJ45YD
|
2.8m 90° MJ90YD
|
|
|
||
|
Dimension of sliding table
|
2800X320mm
|
2800*320mm
|
|
|
||
|
Length of cut between saw blade and rip fence
|
2750mm
|
2750mm
|
|
|
||
|
Width of cut between saw blade and rip fence
|
1250mm
|
1250mm
|
|
|
||
|
Saw blade diameter
|
300mm
|
300mm
|
|
|
||
|
Height of cut
|
80mm
|
80mm
|
|
|
||
|
Speed of main saw spindle
|
4000/6000rpm
|
4000/6000rpm
|
|
|
||
|
Main spindle diameter
|
30mm
|
30mm
|
|
|
||
|
Tilting saw blade
|
0-45°
|
90°
|
|
|
||
|
Main motor
|
4.0/5.5kw
|
4.0/5.5kw
|
|
|
||
|
Scoring saw blade diameter
|
120mm
|
120mm
|
|
|
||
|
Speed of scoring saw blade
|
8000rpm
|
8000rpm
|
|
|
||
|
Scoring saw diameter
|
20mm
|
20mm
|
|
|
||
|
Scoring motor
|
0.75/1.1kw
|
0.75/1.1kw
|
|
|
||
|
Overall dimension
|
2850*3050*900mm
|
2850*3050*900mm
|
|
|
||
Show details
