- Product Details
- {{item.text}}
Quick Details
-
Throat Depth (mm):
-
400 mm
-
Width of Working Table (mm):
-
140 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
DURMAPRESS
-
Weight (KG):
-
15000
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
New Product 2023
-
Power:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hydraulic Press Brake
-
Usage:
-
Sheet Folding
-
Type:
-
Hydraulic Bending Tools
-
Voltage:
-
480V/380V/220V
-
Product name:
-
CNC Press Brake
-
Application:
-
Galvanized Sheet
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3300mm
-
Slider Stroke (mm):
-
200 mm
-
Throat Depth (mm):
-
400 mm
-
Width of Working Table (mm):
-
140 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
DURMAPRESS
-
Weight (KG):
-
15000
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
New Product 2023
-
Power:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hydraulic Press Brake
-
Usage:
-
Sheet Folding
-
Type:
-
Hydraulic Bending Tools
-
Voltage:
-
480V/380V/220V
-
Product name:
-
CNC Press Brake
-
Application:
-
Galvanized Sheet
Product Description

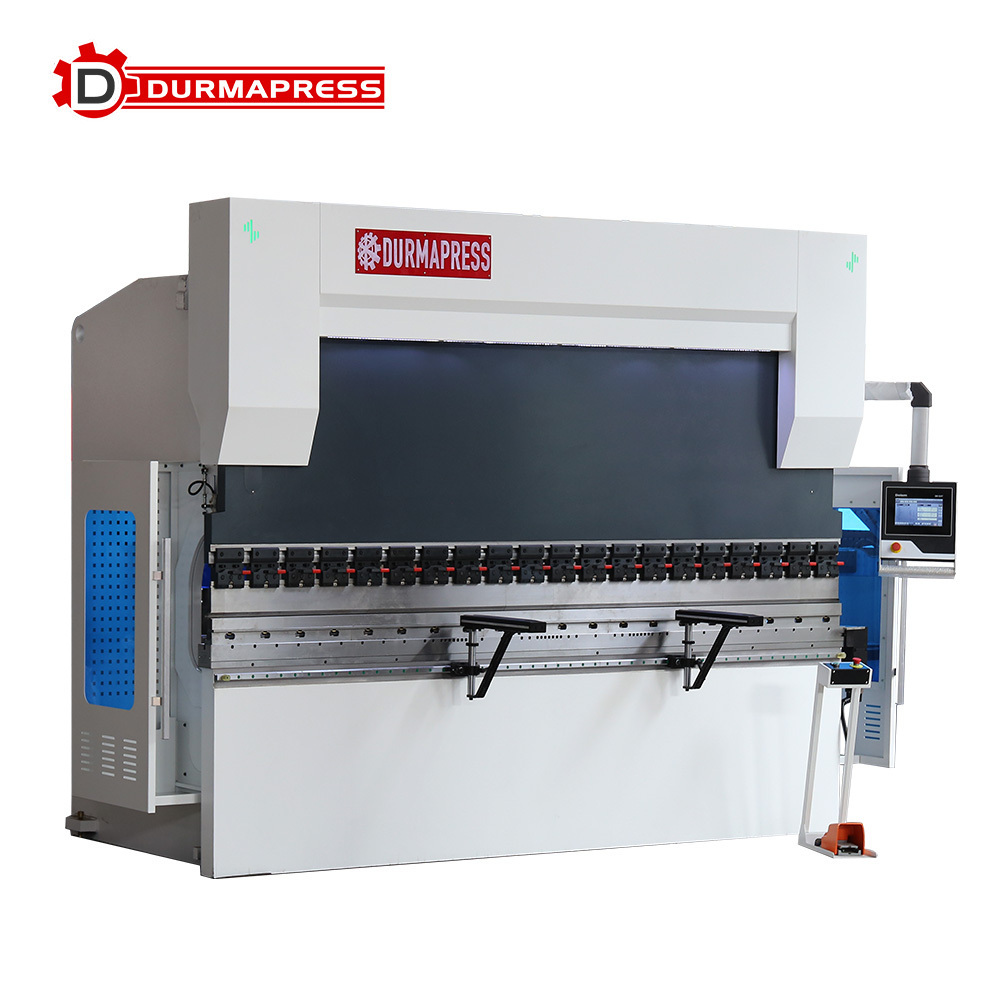

CNC Press Brake
The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries
.
Upper and Lower Die Table
Manual Fine Adjustment of The Finger
Scimitar
|
Axes
|
X1
|
X2
|
R1
|
R2
|
Z1
|
Z2
|
|
Stroke（mm）
|
750
|
750
|
200
|
200
|
under the request
|
under the request
|
|
Speed（mm/s)
|
500
|
500
|
500
|
500
|
2200
|
2200
|
|
Accuracy（mm）
|
0.01
|
0.01
|
0.01
|
0.01
|
0.05
|
0.05
|
|
Type of Motor
|
Servo Drive
|
Servo Drive
|
Servo Drive
|
Servo Drive
|
Servo Drive
|
Servo Drive
|
|
Mechancial System
|
Ball Screw
|
Ball Screw
|
Ball Screw
|
Ball Screw
|
Ball Screw
|
Ball Screw
|
Factory Profile
Our company
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
