Quick Details
-
Output Speed:
-
100
-
Applicable Industries:
-
plastic machinery
-
Weight (KG):
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Specification:
-
ZLYJ146-10
-
Rated Power:
-
11Kw
-
Input speed:
-
1000
-
Output speed:
-
100
-
Output torque:
-
1050 N.m
-
Length -diameter ratio:
-
25:1
-
Warranty:
-
1 year
-
Delivety time:
-
45 days
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
1050 N.m
-
Input Speed:
-
1000
-
Output Speed:
-
100
-
Applicable Industries:
-
plastic machinery
-
Weight (KG):
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Specification:
-
ZLYJ146-10
-
Rated Power:
-
11Kw
-
Input speed:
-
1000
-
Output speed:
-
100
-
Output torque:
-
1050 N.m
-
Length -diameter ratio:
-
25:1
-
Warranty:
-
1 year
-
Delivety time:
-
45 days
|
Type |
Spec |
Input Power(kw) |
N( enter) |
N(output) |
Output Torque |
Permitted axial thrust of output shaft(KN) |
Screw Diameter |
Length-diameter ratio |
|
(N·m) |
||||||||
|
ZLYJ gearbox |
112-8 |
5.5 |
800 |
100 |
525 |
35 |
Ø35 |
25:01:00 |
|
133-8 |
8 |
800 |
100 |
764 |
39 |
Ø50 |
25:01:00 |
|
|
146-10 |
11 |
1000 |
100 |
1050 |
54 |
Ø55 |
25:01:00 |
|
|
173-10 |
18.5 |
900 |
90 |
1962 |
110 |
Ø65 |
25:01:00 |
|
|
200-12.5 |
30 |
1000 |
80 |
3581 |
155 |
Ø75 |
25:01:00 |
|
|
225-12.5 |
45 |
1000 |
80 |
5371 |
180 |
Ø90 |
25:01:00 |
|
|
250-16 |
55 |
1120 |
70 |
7503 |
192 |
Ø105 |
25:01:00 |
|
|
280-16 |
75 |
960 |
60 |
7643 |
258 |
Ø110 |
25:01:00 |
|
|
315-16 |
85 |
960 |
60 |
13528 |
287 |
Ø120 |
25:01:00 |
|
|
330-16 |
110 |
960 |
60 |
17507 |
360 |
Ø135 |
25:01:00 |
|
|
375-16 |
132 |
960 |
60 |
21008 |
390 |
Ø150 |
25:01:00 |
|
|
395-16 |
185 |
960 |
60 |
29442 |
400 |
Ø160 |
25:01:00 |
|
|
420-16 |
160 |
960 |
60 |
31831 |
430 |
Ø160 |
25:01:00 |
|
|
420-16 |
220 |
960 |
60 |
31831 |
430 |
Ø170 |
25:01:00 |
|
|
450-20 |
213 |
1000 |
60 |
40640 |
500 |
Ø160/Ø170 |
25:01:00 |
|
|
560-17 |
540 |
1000 |
50 |
84034 |
700 |
Ø200 |
25:01:00 |
|
|
630-10 |
540 |
1000 |
50 |
103132 |
770 |
Ø250 |
25:01:00 |

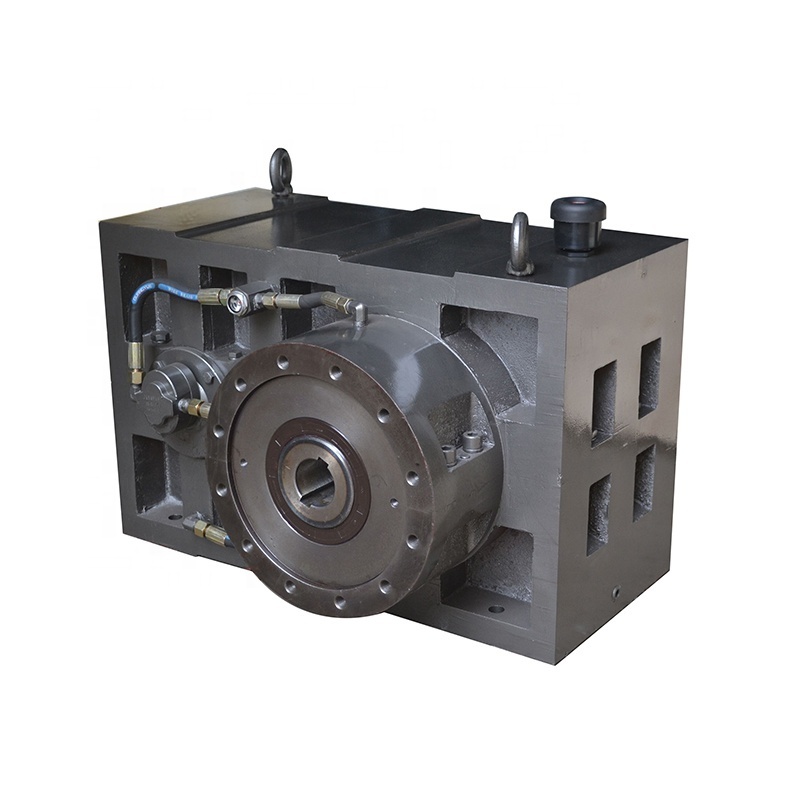

ZLYJ gearbox series are transmission devices, which are specially designed for single-screw extruder with high precision, hard gear surface, accompany with thrust. Adopting
the technical specifications stipulated in JB/T9050. 1-1999,all ZLYJ gearboxes are designed accordingly.
2.Main Features:
1.The material of gear is the high strength alloy steel, it is manufactured by carburizing, quenching (and other heat treatment), gringding process at last. The gear is in high precison ( 6 grade ) and high hardness ( reaches HRC54-62). Besides, it features low noise when operating.
2. It contains high bearing ability thrust, which is performed reliable and can withstand larger axial thrust.
3.All the items are treated by forced lubrication and cooling system except very few small specificationproducts
4. ZLYJ series gearbox is adopted by six-side processing box. Its normal installation is horizontal, butcan also be changed to vertical installation according to customer's requirment.
