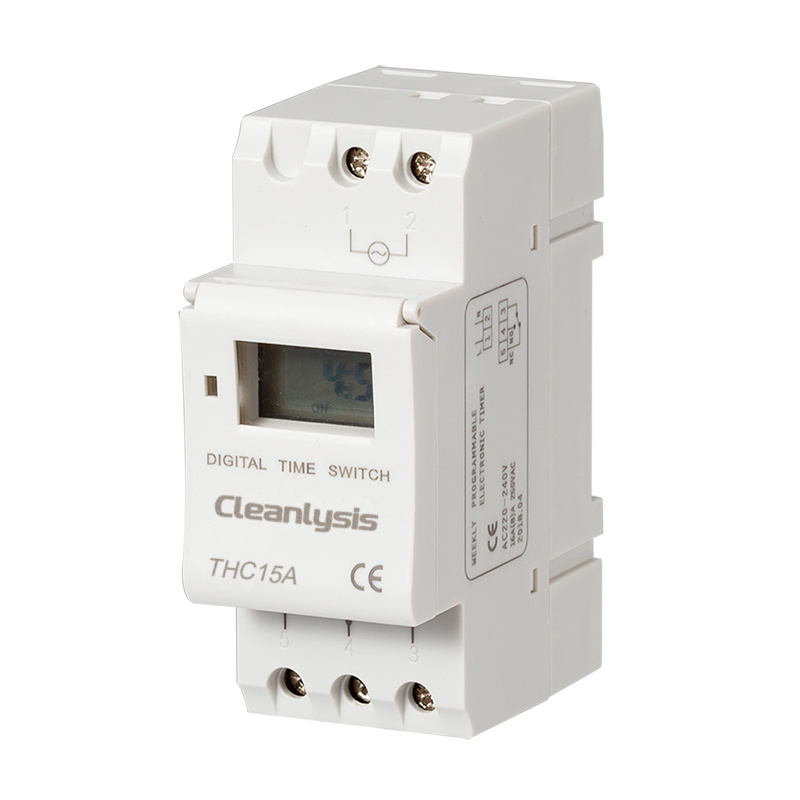

Quick Details
-
Model Number:
-
THC15W
-
Max. Current:
-
25A
-
Color:
-
White
-
Certification:
-
None
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cleanlysis
-
Model Number:
-
THC15W
-
Max. Current:
-
25A
-
Color:
-
White
-
Certification:
-
None
| Type | THC15W | ||
| Working Voltage | 100, 110, 115, 120, 127 VAC | 220, 230, 240VAC | 12, 24, 36VDC |
| Resistance Load Switch Capacity | 25A | 16A | 25A |
| Power Consumption | <1W | <2W | <1W |
| Voltage Range | 85~110% | ||
| Power Source Frequency | 50/60HZ | / | |
| Power Reserve Time | 5 Years | ||
| Control Electrical Life | 10 5 Times | ||
| Mechanical Life | 10 7 Times | ||
| Display | LCD | ||
| Setting Switch | 8 Times Open and 8 Times Off | ||
| Timing Control Range | 1 min - 168 hours(1 week) | ||
| Average Error | <0.5s/24h at 25℃ | ||
| Minimum Interval | 1 min | ||
| Temperature | -25℃ ~ +60℃ | ||
| Relative Humidity | <95% | ||
| Weight | 115g | ||
| Dimensions | 87mm * 36mm * 65mm | ||
| Installation | Din Rail 35mm & Panel | ||
| Housing Material | PC Material, Proof Flame | ||
Q: How to choose the right model of the timers?
A: 1. Three basic types of timers: Digital, mechanical, astronomical timers.
It depends on your preference. Mechanical timers can be set more intuitively. While digital timers have smaller time intervals.
If the timer should be adjusted along with the season changes, an astronomical timer is the only option.
2. Dimensions.
Check up the space for installation. And compare the space with the dimensions of the timers. Make sure the timer can be fit in.
3. Load capacity: Max. voltage, max. current.
For digital types of timers, KG316 has larger load capacity than THC15A and CN101A. If there is enough space for installation, KG316 will be a better choice for large load capacity.
Times can be customized with higher load capacity. Contact us if you have a special requirement.
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
