Quick Details
-
Color:
-
Optional
-
Usage:
-
Semi-trailer,truck,trailer
-
Provide:
-
OEM,ODM
-
Certification:
-
TS16949 and ISO9001:2000
-
Track(mm):
-
200,1600,1840,2120
-
Capacity(T):
-
8,12,14,16,28,32,40
Quick Details
-
Max Payload:
-
6T
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LAHOO
-
Color:
-
Optional
-
Usage:
-
Semi-trailer,truck,trailer
-
Provide:
-
OEM,ODM
-
Certification:
-
TS16949 and ISO9001:2000
-
Track(mm):
-
200,1600,1840,2120
-
Capacity(T):
-
8,12,14,16,28,32,40

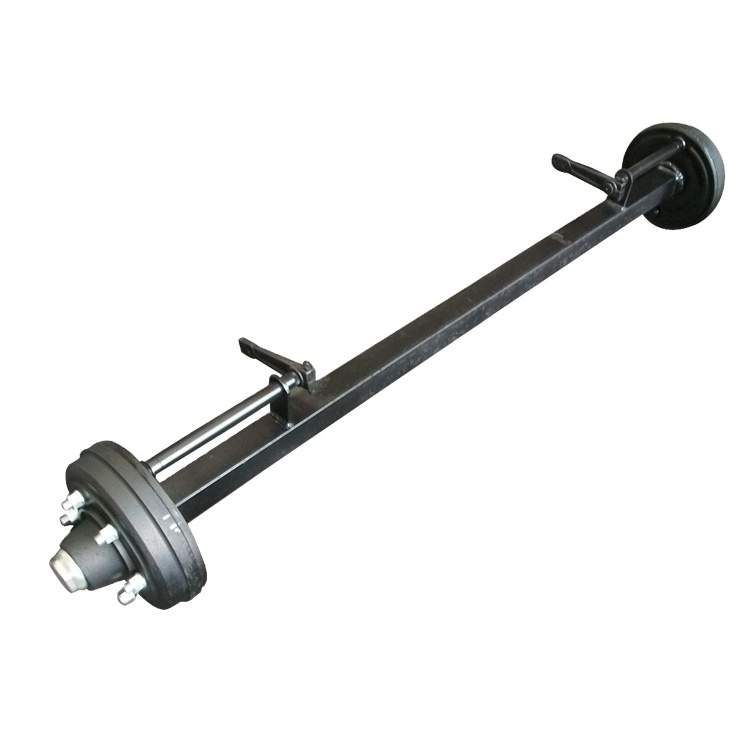

Utility trailers with galvanized axle tubes
Xiamen Lahoo Autoparts supplies various of agricultural axle and stub axle used in Tractors, small Trailers, Agricultural Trailers, Boat trailers etc.
2. Capacity: 1~8 Tons;
3. Track: can be customized;
4. Axle Beam: Round, Square for optional;
5. Brake System: with or without brake for your choice;
6. Supply professional solution for customer's trailer;
7. Good price and high quality;
| AGRICULTURE AXLE | ||||||||
| Item No. | Capacity (T) | Track (mm) | Axle Beam(mm) | Brake lever position(mm) | Brake Spec.(mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| L2 | D1×D2 | Inner/Outer | ||||||
| LHAH01-AG01 | 1 | 1600 | 40 | no | no | 4×M14×Φ130×84 | 30205-20207 | 35 |
| LHAH01-AG02 | 1.5 | 1600 | 45/45 | no | no | 6×1/2"×Φ139.7 | LM68149/10 LM12749/10 | |
| LHAH02-AG01 | 2 | 1600 | 50/50 | no | no | 6×1/2"×Φ139.7 | 25580/20 15123/15245 | |
| LHAD03-AG01B | 3 | 1600 | 50 | 470 | 255×60 | 6×M18×Φ205×160 | 30206-30209 | 65 |
| LHAH05-AG01 | 5 | 1600 | 60 | no | no | 6×M18×Φ205×160 | 30207-30211 | 60 |
| LHAD05-AG01B | 5 | 1600 | 60 | 470 | 255×60 | 6×M18×Φ205×160 | 30208-30211 | 100 |
| LHAH06-AG01 | 6 | 1600 | 70 | no | no | 6×M18×Φ205×160 | 30208-30213 | 85 |
| LHAD06-AG01B | 6 | 1600 | 70 | 470 | 300×60 | 6×M18×Φ205×160 | 30208-30213 | 120 |
| The track can be met according to customers' request. | ||||||||
Axles: American type & German type with different capacity.
Mechanical suspension: 1axle, 2axle & 3axle with different steel plate thickness, German type,American type
Trailer air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie suspension: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Wheel rim: Tube type , different size for truck, semi-trailer
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Wheel hub and brake drum with different size.
1. We supply many kinds of axles with diferent capacity.
2. American and German Type Axle ,Agricultural axle are all available.
3. Besides general size axles, we can make by customers' request or drawings.
