Quick Details
-
Dimension:
-
14500mmX750mmX850mm
-
Place of Origin:
-
Shanxi, China
Quick Details
-
Displacement:
-
125CC
-
Brand Name:
-
HUA YU
-
Tire Size:
-
6/7
-
Dimension:
-
14500mmX750mmX850mm
-
Place of Origin:
-
Shanxi, China
Shanxi Huayu Technology Development Co., Ltd. manufactures 110CC 125CC ATVs, as well as 500W electric ATVs and 800W electric ATVs.
For detailed parameters of this paragraph, please refer to the following table.
125CC ATV parameters:
| 1 | Vehicle size | 1450mmX750mmX850mm |
| 2 | Start method | Electric start |
| 3 | engine | 125CC ( automatic wave ) |
| 4 | Maximum power | 2.3KW/8500Rpm |
| 5 | maximum torque | 2.7N.M/6500R/min |
| 6 | transfer method | chain drive |
| 7 | Brake system | The front disc brake drum |
| 8 | Damping system | Hard spring damping |
| 9 | top speed | 65KM/H |
| 10 | Seat height | 600mm front track |
| 11 | front wheel distance | 430mm |
| 12 | rear wheel distance | 420mm |
| 13 | tire size | Front and rear (16x8-7) iron wheels |
| 14 | weight | 95KG |
| 15 | Chassis height | 150mm |
| 16 | fuel tank | 20L |
500W/800W Electric ATV :
| 1 | Electric machinery | 500W / 800W |
| 2 | Vehicle dimensions | 1450mmX750mmX850mm |
| 3 | tire size | 145/70-6 Tubeless Tire |
| 4 | Battery | 36V20AH 48V20AH |
| 5 | charging time | 8H |
| 6 | battery life | 30-35km |
| 7 | climbing | 30% |
| 8 | brake | handbrake |
| 9 | tire size | 6 inch/7 inch optional |
| 10 | Automobile gear | Three gears |
| 11 | Gear can be adjusted | front, rear, neutral |
| 12 | Screen | Display battery |
| 13 | speed | 30KM/H |
| 14 | Load Line | 150KG |
| 15 | color | customizable |

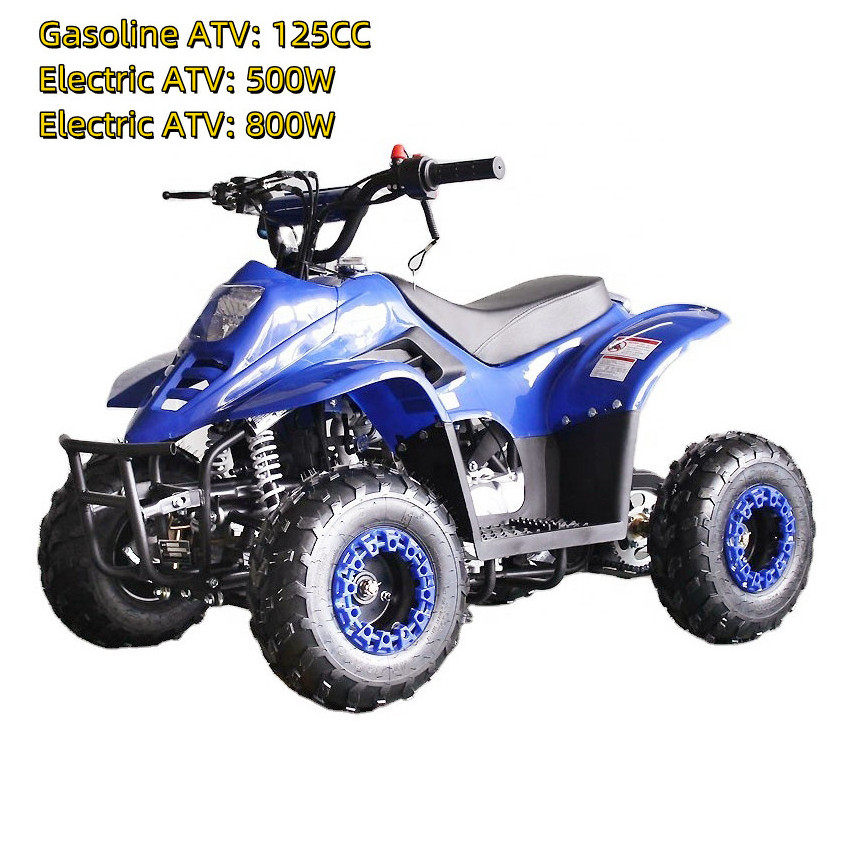

Photo example :
To confirm the details, please contact customer service.
