0.7mm 0.8mm 1mm Polycarbonate corrugated sheets Corrugated plastic sheets

0.7mm 0.8mm 1mm Polycarbonate corrugated sheets Corrugated plastic sheets

FOB Reference Price: Get Latest Price

≥500 Kilograms

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: any color

Thickness:: 0.8mm-2.5mm

Certification:: ISO9001:2008, CE,ROHS,SGS

Length:: no limit(max length 11.8m)

Quick Details

Place of Origin:: Zhejiang, China

Product Name:: Polycarbonate corrugated sheets Corrugated plastic sheets

Material:: Polycarbonate

Color:: any color

Thickness:: 0.8mm-2.5mm

Certification:: ISO9001:2008, CE,ROHS,SGS

Length:: no limit(max length 11.8m)

PC Corrugated Sheet

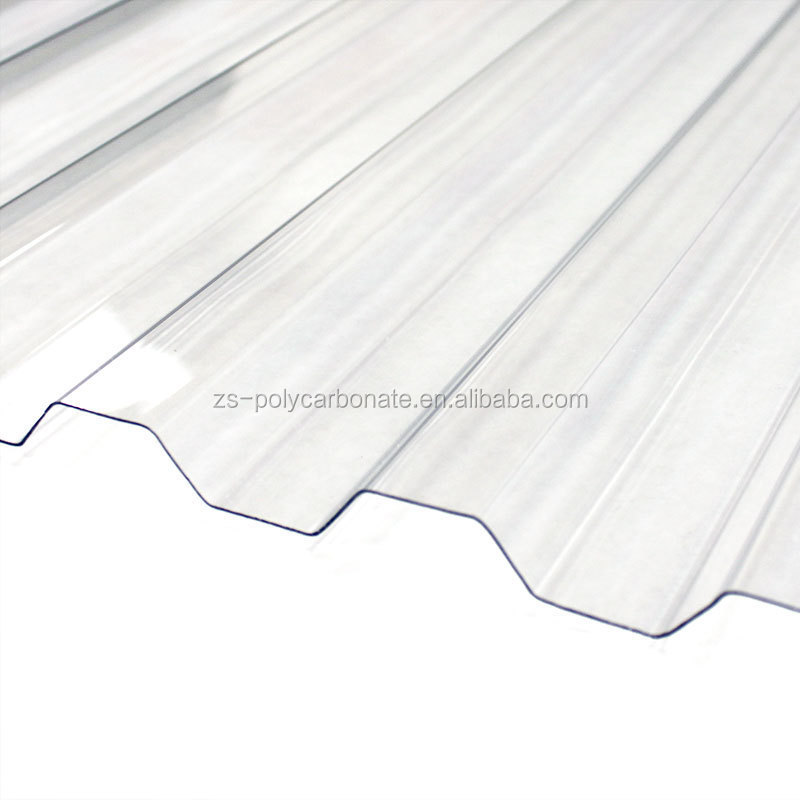

Polycarbonate corrugated sheet

The corrugated polycarbonate sheet is lightweight and virtually unbreakable. It is designed to match the specific profiles of metal sheets in the steel building industry. This material is easily cleaned and its non-breakability feature makes this corrugated polycarbonate a tough product for the greenhouse environment.

Each sheet is supplied with a UV (ultra-violet) protected surface on one side giving it excellent durability to weathering. With a light transmission of up to 90% for clear sheets, its optical property is almost equal to that of glass.

The panels are treated with a factory applied condensation control which causes water to spread into a thin sheet, eliminating condensation drop formation and retaining a high level of transparency.

model number	effective width (mm)	projection width (mm)	thickness (mm)	weight (kg/m)	flatten width (mm)
Y-76	1216	1292	0.8	1.39	1453
Y-76	1216	1292	1.0	1.74	1453
Y-76	1216	1292	1.2	2.09	1453
Y-76	1216	1292	1.5	2.62	1453
Y-76	1216	1292	1.8	3.14	1453
Y-76	1216	1292	2.0	3.49	1453

model number	effective width (mm)	projection width (mm)	thickness (mm)	weight (kg/m)	flatten width (mm)
Y-32	1216	1248	0.8	1.50	1419
Y-32	1216	1248	1.0	1.88	1419
Y-32	1216	1248	1.2	2.26	1419
Y-32	1216	1248	1.5	2.82	1419
Y-32	1216	1248	1.8	3.39	1419
Y-32	1216	1248	2.0	3.76	1419

model number	effective width (mm)	projection width (mm)	thickness (mm)	weight (kg/m)	flatten width (mm)
F-76	1216	1268	0.8	1.50	1568
F-76	1216	1268	1.0	1.88	1568
F-76	1216	1268	1.2	2.26	1568
F-76	1216	1268	1.5	2.82	1568
F-76	1216	1268	1.8	3.39	1568
F-76	1216	1268	2.0	3.76	1568

model number	effective width (mm)	projection width (mm)	thickness (mm)	weight (kg/m)	flatten width (mm)
F-210	840	910	0.8	0.96	1000
F-210	840	910	1.0	1.2	1000
F-210	840	910	1.2	1.44	1000
F-210	840	910	1.5	1.8	1000
F-210	840	910	1.8	2.16	1000
F-210	840	910	2.0	2.4	1000
