Product Description

_______________________________________________________________________ _________________

Feed-through terminal blocks

Feed-through terminal blocks are characterized by two terminal points and a compact design. The large cross-section range of the feed-through terminal blocks allows universal use in every application. Along with the standard feed-through terminal blocks for wiring with copper litz wires, for example, Phoenix Contact also provides Al/Cu terminal blocks. The universal terminal blocks enable the connection of aluminum and copper conductors in just one terminal block.

_______________________________________________________________________ _________________

Multi-conductor terminal blocks

Even more compact wiring is possible with the multi-conductor terminal blocks from Phoenix Contact. Multi-conductor terminal blocks are feed-through terminal blocks with three or four connections that are all routed via the same current bar. This allows you to connect up to four conductors with individual wiring per terminal block. The design of the terminal blocks means that fewer terminal blocks and supply lines are required for wiring. Along with an improved overview, this also enables wiring or potential distribution in tight spaces.

_______________________________________________________________________ _________________

Double-level terminal blocks

Compared to the feed-through terminal blocks, the double-level terminal blocks enable even higher wiring density and greater flexibility than the multi-conductor terminal blocks. To put it simply, double-level terminal blocks are two feed-through terminal blocks in one terminal block. To make this possible, the terminal blocks have two levels, each of which carries a potential. If necessary, these levels can be quickly and easily connected with vertical PV bridges, which means that the double-level terminal blocks can also be used as multi-conductor terminal blocks.

_______________________________________________________________________ _________________

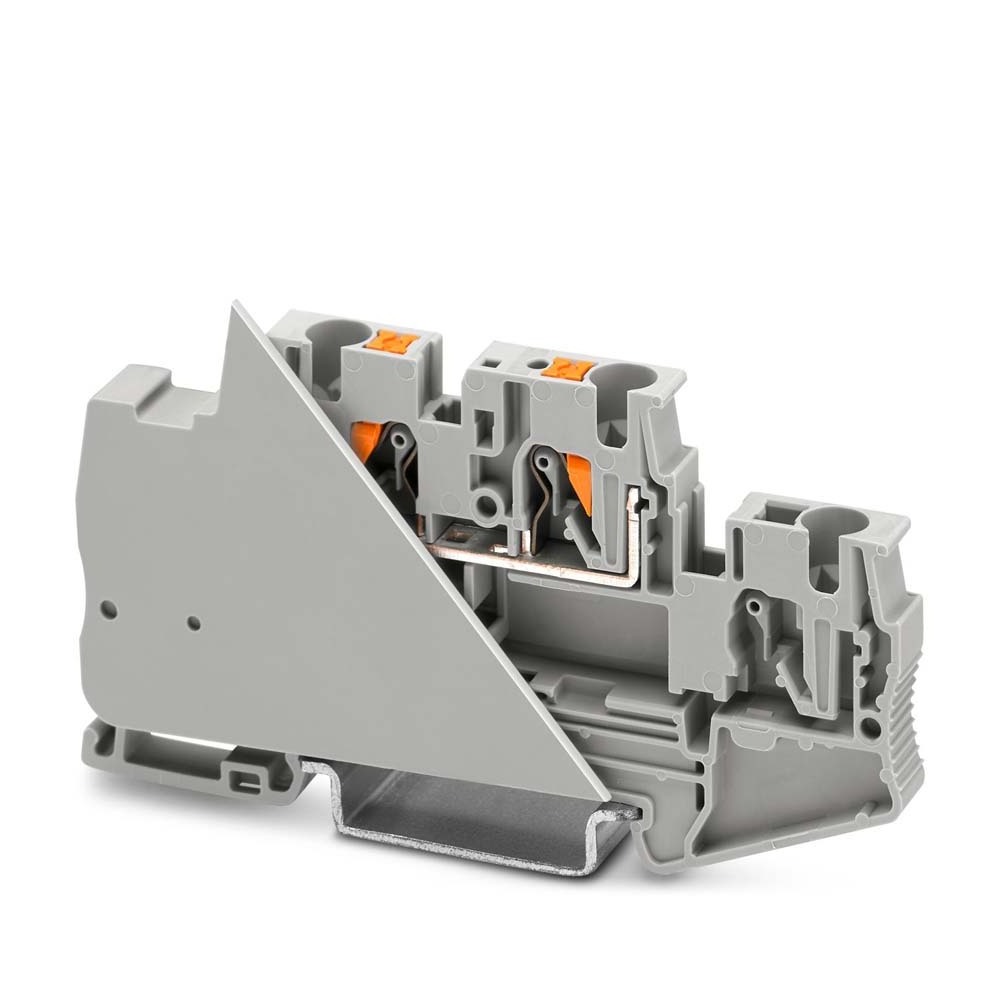

Multi-level terminal blocks

Multi-level terminal blocks are terminal blocks that have multiple levels. Unlike double-level terminal blocks, they usually have three or four levels, but are similar in design to double-level terminal blocks. Each of the levels carries its own potential. Depending on the terminal block version, either just the top two levels or all levels can be connected easily with vertical bridging. In addition to the normal versions, those with integrated PV bridging are also available. With those, manual bridging is not necessary because all levels are connected at the factory. In addition to the simple feed-through versions, the range of four-level terminal blocks and three-level terminal blocks also include versions with one or more functional levels.

_______________________________________________________________________ _________________

Efficient planning with PROJECT complete

Intuitive configuration, intelligent functions, and a customizable user interface: The PROJECT complete planning and marking software is the innovative solution for the easy planning of your terminal strips and the straightforward creation of the corresponding markings.

From the transfer of data from electrical planning to delivery of your finished product, the software features individual and convenient process support.

Packaging & Shipping

FAQ

Q: Are you trading company or manufacturer?
A: Yes, trading company. Who can give you one-stop station automation purchasing.

Q: Do you have any stock or need buy from other suppliers?
A: We saved lots of stocks for selling. RTS is our advantage, we have our own warehouse.

Q: Is there any engineer can help for technical supporting?
A: Sure, we have. Our technical team can help you for selectingPLCs,HMI, Servo motor & drive, VFD, low-voltage products, and softwares. If you need any help, you can contact our technicaldepartment directly.

Q: Do you supply 100% original and new products?
A: Of course yes. No copy, no fake, no refurbished. Original only.

Q: Do you sell obsolete products? even very old products?
A: If there is new type to replace, we will suggest you to use new one; if not easy for change, we will help to check the old one with good condition. If used or other conditions, we will tell you the truth.

Q: How about Customs Duty & Handling Fee?
A: For all customers` orders.
