High purchase air heat pump full dc inverter R32 Hybrid series monoblock heat pump ipm inverter module

High purchase air heat pump full dc inverter R32 Hybrid series monoblock heat pump ipm inverter module

FOB Reference Price: Get Latest Price

≥2 Pieces

US $1552

≥50 Pieces

US $1498

≥100 Pieces

US $1335

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Air Source Heat Pump

Place of Origin:: Guangdong, China

Brand Name:: Pool World

Model Number:: PD30-CRL-DC-MD

Function:: House Heating Cooling Hot Water

Compressor:: Pana-sonic* Inverter Twin Rotary Compressor

Refrigerant:: R32

Material:: Galvanized Sheet

Heat source:: Air Source 75%+electricity25%

Evaporator:: Finned Tube Heat Exchanger

Expansion Valve:: Emerson

Feature:: Easy Install

Noise:: 37~54dB(A)

Certification:: CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc

Quick Details

Warranty:: 2 years

Application:: Hotel, Commercial, Household

Power Source:: Electric

Type:: Air Source Heat Pump

Place of Origin:: Guangdong, China

Brand Name:: Pool World

Model Number:: PD30-CRL-DC-MD

Function:: House Heating Cooling Hot Water

Compressor:: Pana-sonic* Inverter Twin Rotary Compressor

Refrigerant:: R32

Material:: Galvanized Sheet

Heat source:: Air Source 75%+electricity25%

Evaporator:: Finned Tube Heat Exchanger

Expansion Valve:: Emerson

Feature:: Easy Install

Noise:: 37~54dB(A)

Certification:: CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc

Products Description

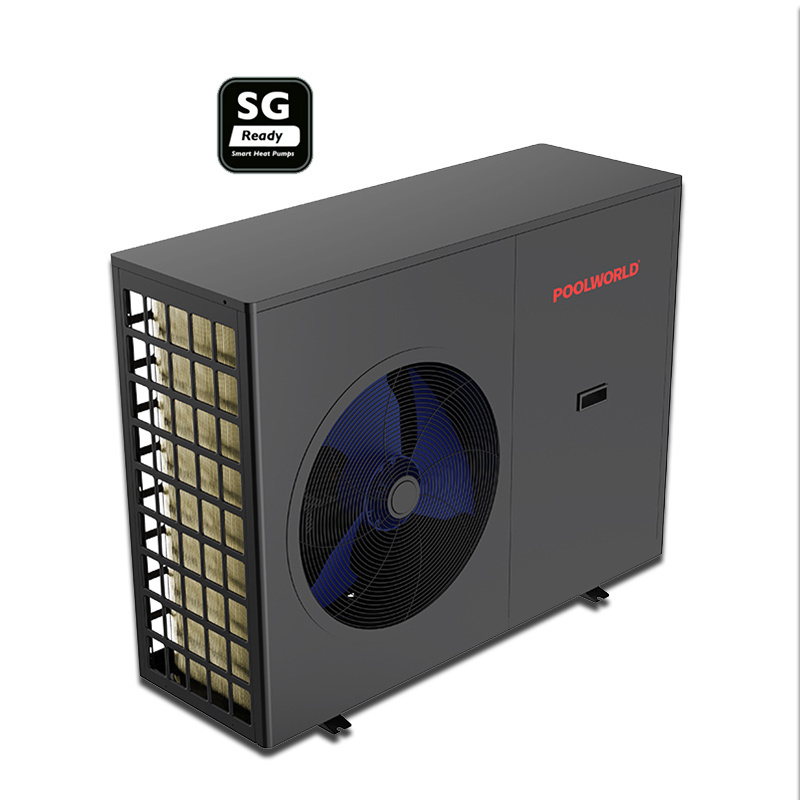

Pool World HYBRID SERIES EVI DC Inverter Heat Pump

Hybrid Series full DC inverter heat pump is a widely used and powerful unit that can be connected to a solar system and boiler system. Combined with the vapor injection technology, the unit can operate normally at -30℃ ambient temps and output 65℃(Max.) hot water stably, providing users with a stable and reliable heating/cooling guarantee throughout the year.

R32 ECO-FRIENDLY REFRIGERANT

Compared to the R410A with a GWP of 2100, the R32 has a GWP of only 675 and zero ODP. Moreover, it has higher heat exchange efficiency and less refrigerant charge, which not only reduces carbon emissions but also saves costs for users. It is one of the best choices to replace R410A products.

2 ZONES TEMPERATURE CONTROL

There are 2-zone temperature control options, users can set the temperature of different zones according to the actual application scenario, making the zone temperature control more flexible and accurate.

*Dual-zone water temperature *Single-zone room temperature *Single-zone water temperature

*Dual-zone water temperature + room temperature

SUPER SILENT

The space where the compressor is located adopts a fully enclosed design, and the entire whole is treated with suction and sound insulation; The compressor is wrapped with sound-absorbing material, and the triple noise reduction measures of sound absorption, sound insulation, and buffering ensure low noise operation.

ENERGY EFFICIENCY CLASS A+++ AT 35℃, A++ AT 55℃

The higher the energy efficiency level, the more energy saving. Hybrid series heat pump has passed the TUV test, and the ERP report shows that its energy level can reach A+++ at 35℃, and the COP is as high as 5.36.

PANASONIC EVI INVERTER COMPRESSOR

One of the key features that provide Hybrid Series heat pumps with their powerful performance is our highly efficient compressor. Combined with the vapor injection technology, it can ensure that the unit operates efficiently and stably in extremely cold regions of -30°C and outputs 65°C(Max.) hot water.

CASCADE CONTROL FUNCTION(RS485)

Integrated terminal load control signal terminals, such as external circulation pump, heating auxiliary electric heating, water tank auxiliary electric heating,electromagnetic three-way valve, electric boiler and other external heat sources that can be switched on and off, anti-freezing electric heating, lower return water pump, solar water pump, mixed water pump,defrost indication, fault indication.

BUILDING MANAGEMENT SYSTEM（BMS）

The central control in this system is a highlight. The customer provides the host computer communication port to connect the heat pump to the customer's BMS control center, and controls the heat pump through the RS485 communication protocol. The format, baud rate and communication address of the communication protocol can be set in the parameters of the system.

SMART GRID READY(SG-READY)

The SMART GRID is connected to the heat pump through the SG and EVU switch interfaces. The heat pump judges the power status of the grid through the status of the SG and EVU interfaces. According to different grid conditions, the heat pump automatically adjusts the operation mode to achieve energy saving.

SMART HOME CONTROL SOLUTIONS

The new controller has a large 4-inches and bright color display, 6keys smart touch control, and 13 language options. It can be installed anywhere in your house and allows you to set the different temps and different modes in a different zone.

IOT CUSTOMER MANAGEMENT PLATFORM

POOL WORLD’s IoT customer management platform can effectively save labor costs for dealers. It can be connected with WIFI or DUT to realize remote monitoring of data and record all the operating parameters of the units and synchronize it to the management background of dealers and manufacturers. If the heat pump has an error report, the dealer can quickly provide users with the best solutions according to this report.

MAIN COMPONENTS

All the main parts of the Hybrid Series heat pump, including wires, controllers, etc. are made by well-known manufacturers, with first-class configuration, more stable and reliable products, and lower failure rate

Model	PD30-CRL-DC-MD	PD40-CRL-DC-MD/S	PD40-CRL-DC-MD	PD50-CRL-DC-MD	PD60-CRL-DC-MD
Heating Condition - Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：30/35℃
Heating Capacity Range (kW)	3.2~8.0	4.8~12.0	4.8~12.0	7.3~18.0	8.8~22.0
Heating Power Input Range(kW)	0.61~1.88	0.93~2.88	0.93~2.88	1.36~4.14	1.67~5.15
COP Range	4.26~5.23	4.17~5.18	4.17~5.18	4.35~5.36	4.27~5.28
DHW Condition-Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：15/55℃
Heating Capacity Range (kW)	2.9~7.2	4.3~10.8	4.3~10.8	6.0~15.0	7.4~18.5
Heating Power Input Range(kW)	0.64~1.97	0.97~3.03	0.97~3.03	1.29~4.00	1.63~5.05
COP Range	3.65~4.54	3.56~4.45	3.56~4.45	3.75~4.64	3.66~4.55
cooling Condition - Ambient Temp.（DB/WB）:35/24℃，Water Temp.（In/Out）：12/7℃
Cooling Capacity Range (kW)	2.5~6.2	3.3~8.2	3.3~8.2	5.1~12.6	6.0~15.0
Cooling Power Input Range(kW)	0.79~2.27	1.06~3.11	1.06~3.11	1.58~4.53	1.88~5.49
EER Range	2.73~3.15	2.64~3.10	2.64~3.10	2.78~3.23	2.73~3.19
ErP Level (35°C)	A+++	A+++	A+++	A+++	A+++
ErP Level (55°C)	A++	A++	A++	A++	A++
Power supply	230V/1Ph/50Hz/60Hz			380V/3Ph/50-60Hz
Diameter of pipe (mm)	DN25	DN25	DN25	DN25	DN25
Water Flow(m3/h)	1.2	1.5	1.5	2.5	2.8
Water Pressure Drop (max) kPa	30	35	35	40	45
Water pump type	Adjustable DC inverter
Max water head(m)	9	9	9	12	12
Auxiliary electric heater(kW)	3	3	3	3	3
Expansion vessel(L)	2	5	5	5	5
Safety valve(MPa)	0.3	0.3	0.3	0.3	0.3
Noise dB(A)	≤45	≤48	≤48	≤53	≤55
Net Weight (kg)	105	115	115	160	165
Net Dimension (L/W/H) mm	1150×460×820	1150×460×960	1150×460×960	1260×480×1060	1260×480×1060
Operation Ambient Temp. (℃)	-30~43℃
Operating water temperature (℃)	20~55℃（DHW ）
Operating water temperature (℃)	20~50℃（Heating）
Operating water temperature (℃)	7~35℃（Cooling）
