2.
Light (3 kg / ㎡), thin (3-6 mm), transparent, and arbitrary cut, joker modelling, beautiful atmosphere, simple installation is the biggest trend of countries better film screen, the better the development of film screen, is committed to meet the needs of global LED film screen, using our specific raw silicon chip, the components of solid loading on the high of PCB board, through the special cover process, The display module is integrated into an optical lens substrate with high transparency and luminescent display.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Pixel Pitch:
-
P4P5P6P8P10 P16 P20 P25 P30 P40 P50 P60 P100, P4P5P6P8P10 P16 P20 P25 P30 P40 P50 P60 P100
-
Product name:
-
Led Film screen
-
Usage:
-
Adertising
-
Warranty:
-
2~5 Years
-
Display Function:
-
Video Picture Graphic Text Message
-
Life span:
-
100000 Hours
-
Certificate:
-
CE ROHS FCC
-
Refresh rate:
-
3840Hz-6240Hz
-
Control system:
-
NOVA Star
-
Weight:
-
1.5kg
-
Pixel density:
-
P4X8 P5X10 P6 P6.5 P8 P10 P16 P20 P25 P30 P40 P50 P60 P50X100 P100
Quick Details
-
Application:
-
Indoor, Outdoor, Semi-outdoor
-
Color:
-
Full Color
-
Panel Size:
-
960x(256 320 192 208 )
-
Place of Origin:
-
Guangdong, China
-
Pixel Pitch:
-
P4P5P6P8P10 P16 P20 P25 P30 P40 P50 P60 P100, P4P5P6P8P10 P16 P20 P25 P30 P40 P50 P60 P100
-
Product name:
-
Led Film screen
-
Usage:
-
Adertising
-
Warranty:
-
2~5 Years
-
Display Function:
-
Video Picture Graphic Text Message
-
Life span:
-
100000 Hours
-
Certificate:
-
CE ROHS FCC
-
Refresh rate:
-
3840Hz-6240Hz
-
Control system:
-
NOVA Star
-
Weight:
-
1.5kg
-
Pixel density:
-
P4X8 P5X10 P6 P6.5 P8 P10 P16 P20 P25 P30 P40 P50 P60 P50X100 P100
Product introduction
1.
LED film screen is a high-end product that breaks the conventional LED display. Sunrise focuses on transparent display, innovates boldly, breaks the traditional thinking, and invests a lot in RESEARCH and development. It has the main control right from IC bare crystal structure and functional design, LED bracket, LED packaging and electronic circuit design. Currently has the world's leading return to zero code patent technology, dozens of film screen related inventions and practical patent technology, powerful technology to push transparent screen to a new height
|
Mode No.
|
Aurora-P4*8
|
Aurora-P5*10
|
Aurora- P6
|
Aurora-P6.5
|
Aurora-P8
|
Aurora-P10
|
Aurora-P16
|
|
Module size（mm)
|
960x256
|
960x320
|
960x192
|
962X208
|
960x256
|
960x320
|
960x192
|
|
Transparent rate
|
55%
|
68%
|
50%
|
60%
|
65%
|
68%
|
75%
|
|
Film weight（Kg/㎡）
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
|
Film thickness（mm）
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
Pixel pitch（mm)
|
4X8
|
5X10
|
6X6
|
6.5X6.5
|
8X8
|
10X10
|
16X16
|
|
Pixel density（点/㎡）
|
31250
|
20000
|
27777
|
23716
|
15625
|
10000
|
3906
|
|
Brightness（cd/㎡）
|
1500-4500
|
1500-4500
|
1500-4500
|
1500-4500
|
1500-4500
|
1500-4500
|
1500-3000
|
|
Brightness scope
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
|
View angle（ °）
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
|
Pixel configure
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|
Rfresh rate（Hz）
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
|
Averange power（w/㎡）
|
≤200
|
≤200
|
≤200
|
≤200
|
≤200
|
≤240
|
≤200
|
|
Max power（w/㎡）
|
≤600
|
≤600
|
≤600
|
≤600
|
≤600
|
≤800
|
≤600
|
|
Working temper.（℃）
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
|
Working humidity（RH）
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
|
Dtive type
|
static
|
static
|
static
|
static
|
static
|
static
|
static
|
|
Control system
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novasta
|
|
Mode No.
|
Aurora-P20
|
Aurora-P25
|
Aurora-P30
|
Aurora-P40
|
Aurora-P50
|
Aurora-P60
|
Aurora-P50-100
|
Aurora-P100
|
|
Module size（mm)
|
960x320
|
1000x400
|
960x480
|
960X480
|
1000x400
|
960x480
|
1000x500
|
1000x500
|
|
Transparent rate
|
85%
|
88%
|
90%
|
90%
|
90%
|
92%
|
95%
|
98%
|
|
Film weight（Kg/㎡）
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
1~3
|
|
Film thickness（mm）
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
≤3
|
|
Pixel pitch（mm)
|
20X20
|
25X25
|
30X30
|
40X40
|
50X50
|
60X60
|
50X100
|
100X100
|
|
Pixel density（点/㎡）
|
2500
|
1600
|
1100
|
625
|
400
|
278
|
200
|
100
|
|
Brightness（cd/㎡）
|
1500-3000
|
1500-3000
|
1500
|
1000
|
1000
|
800
|
500
|
500
|
|
Brightness scope
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
±0.003
|
|
View angle（ °）
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
160
|
|
Pixel configure
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|
Rfresh rate（Hz）
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1920
|
≥1080
|
≥1080
|
|
Averange power（w/㎡）
|
≤200
|
≤200
|
≤150
|
≤100
|
≤100
|
≤100
|
≤100
|
≤100
|
|
Max power（w/㎡）
|
≤600
|
≤600
|
≤450
|
≤300
|
≤300
|
≤300
|
≤300
|
≤300
|
|
Working temper.（℃）
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
-20℃-55℃
|
|
Working humidity（RH）
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
|
Dtive type
|
static
|
static
|
static
|
static
|
static
|
static
|
static
|
static
|
|
Control system
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novastar
|
Novasta
|
Novastar
|

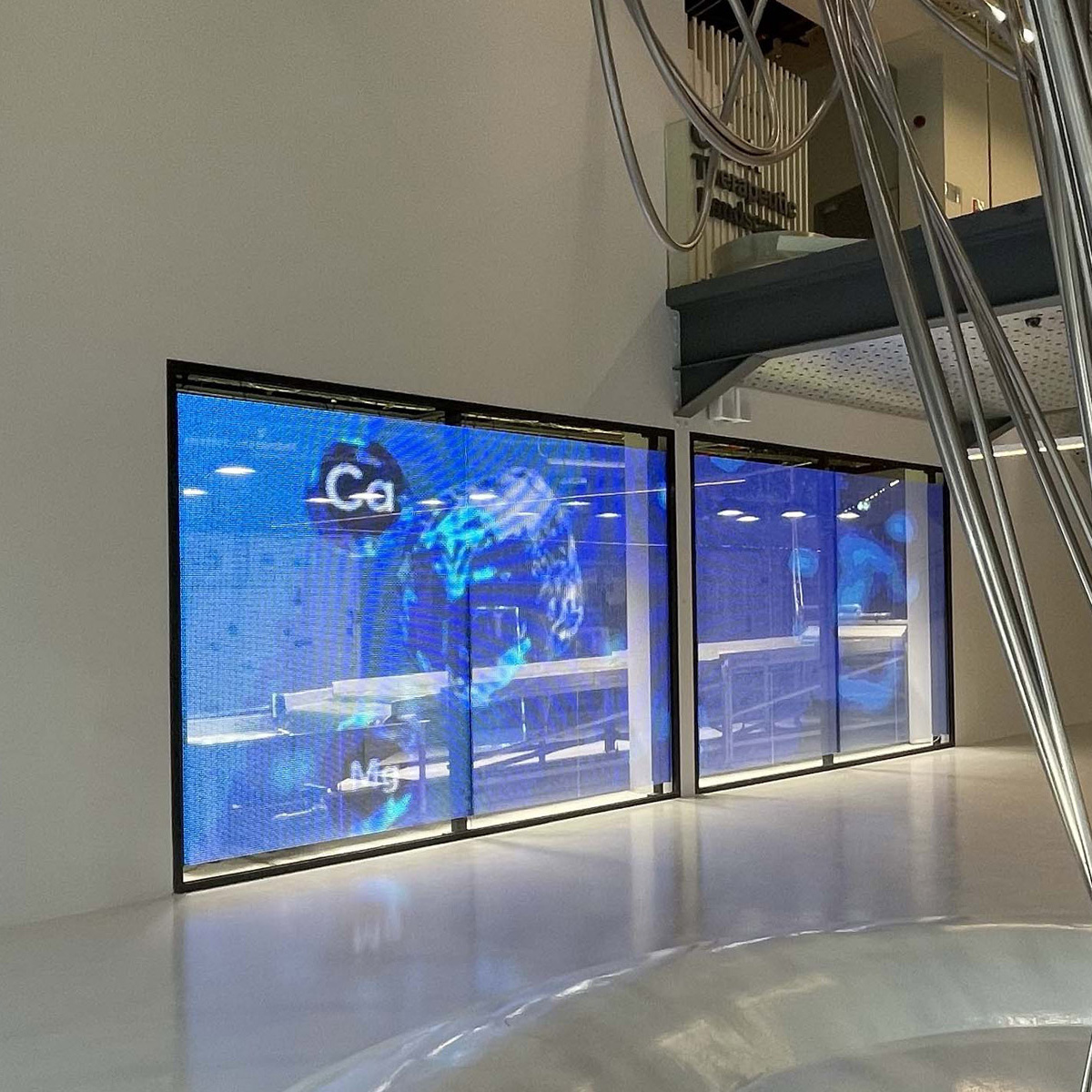

Some Cases
Viewing from the backside
Design concept
1.
Practicality:
perfect combination of transparent screen customization and glass curtain wall decoration, customized according to the glass size, can play the same video, also can play multiple video areas, perfect combination of technology and fashion. It has good commercial value. The film transparent screen is located on the glass curtain wall of the shopping mall, with a large flow of people and good commercial value. Under the condition of not affecting the high light transmittance of the glass curtain wall, the film transparent screen with strong sense of science and technology is fully matched with the glass curtain wall.
2.Reliability:
the hardware and software of the whole system can run stably for a long time to ensure the smooth progress of exhibitions and major activities.
3.Forward-looking:
System design is highly scalable and moderately advanced. The hardware and software systems adopted have enough extended interfaces, support corresponding protocols and upgrade capability. The system design has enough advanced, including the use of network cluster control technology, automatic detection technology.
4.Security:
fully consider the requirements of the system for information security, ensure the safe and reliable operation of all kinds of information and systems in the multimedia cloud, and prevent all leaks and unauthorized operations.
5.Integration:
the system controls all display screens in the cloud, and the playback materials are integrated on the management platform for unified management, unified push, unified play, unified record and unified archive.
6.Ease of use:
on the basis of fully meeting the requirements of landscape display, the system equipment and network are easy to operate and maintain.
7.Compatibility:
The system can access various professional multimedia platforms and databases and seamlessly access private clouds.
8.Advanced:
using the latest advanced technology and single equipment for construction, to ensure the advancement of the system, so that it can meet the practical application and in a leading position in a period of time.
9.Economy:
the composition of the whole system fully considers the specific use demand and application environment, to achieve the best cost performance; Make the whole system have good economy.
LED film transparent screen
The PCB lamp board is as transparent and clean as the surface of ice, without IC, capacitance and resistance components, the overall structure is reasonable, and the appearance looks more beautiful and tidy. From the front view of the screen body, there is no black spot, can achieve the display of high quality picture. In order to solve the problem that PCB light board is prone to dust accumulation and moisture failure, an ultra-thin transparent PC is installed at the back of PCB light board, which can play an insulating role and prevent PCB light board from short circuit.
Traditional transparent screen
Conventional transparent screen usually IC, capacitor, resistance and other components are designed on the back or side, from the positive and negative sides to see where there are black spots, affecting the appearance, PCB horizontal dress, affecting the permeability, PCB lamp board directly exposed outside, easy to dust accumulation and moisture, not clean.
LED film transparent screen
There is no power supply box in the middle, only the left and
right sides of the narrow profile frame, the clever of this design lies in that the left and right narrow frame can act as the frame of the screen body, and the power supply can be installed on the left and right sides, while the wire is hidden in these two positions, to ensure that the display effect in the middle of the screen body reaches the best state. Traditional transparent screen At present, the power box of the ice screen on the market is installed in the middle of the screen. The size of the power box is too wide, resulting in a small transparent area of the screen. The processing technology of the lamp board is not guaranteed, and
the lamp distance is not guaranteed, resulting in a
thick vertical bright line of the screen
right sides of the narrow profile frame, the clever of this design lies in that the left and right narrow frame can act as the frame of the screen body, and the power supply can be installed on the left and right sides, while the wire is hidden in these two positions, to ensure that the display effect in the middle of the screen body reaches the best state. Traditional transparent screen At present, the power box of the ice screen on the market is installed in the middle of the screen. The size of the power box is too wide, resulting in a small transparent area of the screen. The processing technology of the lamp board is not guaranteed, and
the lamp distance is not guaranteed, resulting in a
thick vertical bright line of the screen
Traditional transparent screen
At present, the power box of the ice screen on the
market is installed in the middle of the screen. The
size of the power box is too wide, resulting in a small
transparent area of the screen. The processing
technology of the lamp board is not guaranteed, and
the lamp distance is not guaranteed, resulting in a
thick vertical bright line of the screen.
At present, the power box of the ice screen on the
market is installed in the middle of the screen. The
size of the power box is too wide, resulting in a small
transparent area of the screen. The processing
technology of the lamp board is not guaranteed, and
the lamp distance is not guaranteed, resulting in a
thick vertical bright line of the screen.
FAQ
Q1: How could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2: How to install led display?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2: How to install led display?
A:
We will provide drawings of steel structure or Teamviewer to help you install. If you need our engineers to help you, we can sent them to your installation place. But all the fees including air tickets(back and forth), transportation, living and
salary(USD80/per day/per person) need to be paid by you.
Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
Q4: How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5: What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment term.
Q6: Can I do wireless?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 10-15 working days after we get
your payment.
Q7: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
salary(USD80/per day/per person) need to be paid by you.
Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
Q4: How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5: What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment term.
Q6: Can I do wireless?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 10-15 working days after we get
your payment.
Q7: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
