Quick Details
-
Dimension(L*W*H):
-
11800*1140* 1850 mm
-
Weight:
-
2500 KG
-
Output product name:
-
chocolate machine
-
name:
-
chocolate Temper Production Line
-
keyword:
-
chocolate Temper Production Line
-
capacity:
-
200-400kg/h
-
total power:
-
113.7Kw
-
compressor air:
-
0.3M3/min
-
stroke speed:
-
0-18 moulds/min
-
Usage:
-
Chocolate Making
-
Function:
-
Chocolate Production Line
-
Material:
-
304 Stainless Steel
-
Suitable for:
-
Chocolate products making
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Power:
-
40kw
-
Dimension(L*W*H):
-
11800*1140* 1850 mm
-
Weight:
-
2500 KG
-
Output product name:
-
chocolate machine
-
name:
-
chocolate Temper Production Line
-
keyword:
-
chocolate Temper Production Line
-
capacity:
-
200-400kg/h
-
total power:
-
113.7Kw
-
compressor air:
-
0.3M3/min
-
stroke speed:
-
0-18 moulds/min
-
Usage:
-
Chocolate Making
-
Function:
-
Chocolate Production Line
-
Material:
-
304 Stainless Steel
-
Suitable for:
-
Chocolate products making

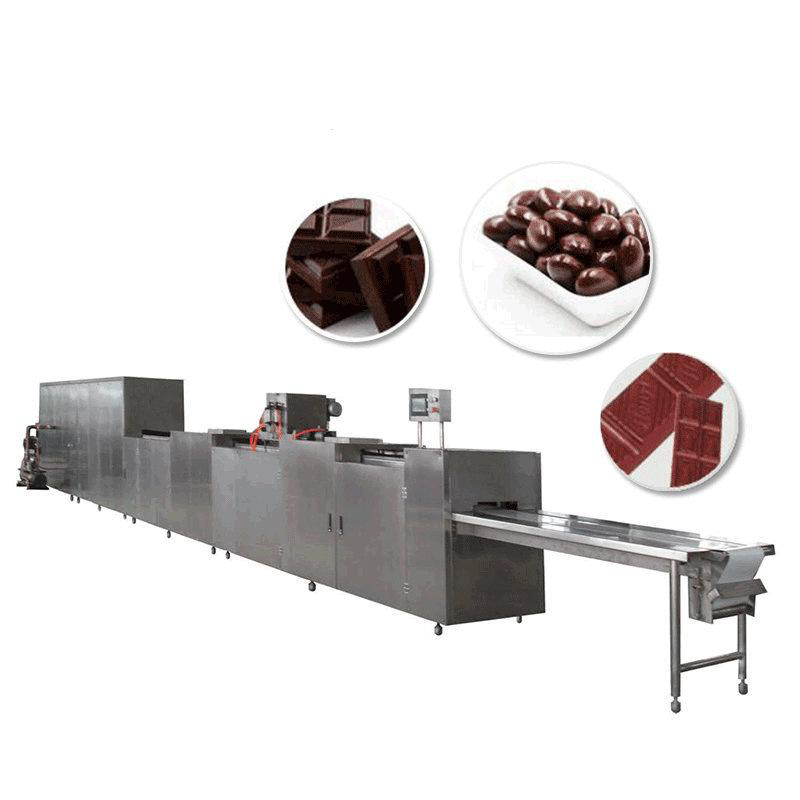

factory price Automatic Chocolate Bar Making Machine chocolate Temper Production Line
Product description :
This machine services as advanced chocolate pour-Forming equipment that integrates mechanical control and electric control. Full automatic work program is applied throughout the flow of production, including mould drying, pour, vibration, cooling, demould and conveyance. This machine helps to produce pure chocolate, chocolate with filling, two-color chocolate and chocolate with granule mixed-poured. The products enjoy attractive appearance and smooth surface. The machine can accurately fix the feed quantity.
A.capacity:200- 4 00kg/h
B.stroke speed:0-1 8 moulds/min
C.voltage:380V
D.total power:113.7Kw
E.compressor air:0.3M 3 /min
F.compressor air pressure:0.4-0.6 Mpa
G.workshop environment:temperature:<25℃,humidity:<55%
Technical of Parameters Of Chocolate Making Machine
|
No. |
Model |
Capacity |
Power (Kw) |
Dimensions (mm) |
|
1 |
Sugar Grinding Machine |
250kg/h |
9 |
1100*750*1800mm |
|
2 |
Cocoa Fat Melting Tank |
500L |
6 |
Ø1000*1200 |
|
3 |
Chocolate grinding machine |
1000L |
29.5 |
2970*1320*1790mm |
|
4 |
Chocolate storage tank |
1000L |
6.2 |
1220*1850mm |
|
5 |
Continuous chocolate tempering machine |
500Kg/h |
10.57 |
1200*1000*1900mm |
|
6 |
Chocolate moulding machine |
6-15Template block/min |
19 |
16000*1000*1600mm |
|
7 |
Chocolate pump |
|
|
780*390*350mm |
