Quick Details
-
Nature:
-
Tuner to IP Converter
-
Input:
-
8*Tuner
-
Tuner in standard:
-
DVB-S/S2/C/ATSC
-
Output:
-
246*SPTS or 16*MPTS over IP(GigE)+2*ASI(independent)
-
Scrambling:
-
DVB-CSA scrambling(optional).
-
CI slot:
-
unavailable
-
Other function:
-
BISS decryption,
-
More function:
-
Multiplexing, SimulCryption
-
Application:
-
Digital TV Head-end System
-
Protocol:
-
HTTP/RTSP/RTMPS/RTMP/UDP/ONVIF2.4
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST/DTVANE
-
Model Number:
-
DMB-9008B
-
Nature:
-
Tuner to IP Converter
-
Input:
-
8*Tuner
-
Tuner in standard:
-
DVB-S/S2/C/ATSC
-
Output:
-
246*SPTS or 16*MPTS over IP(GigE)+2*ASI(independent)
-
Scrambling:
-
DVB-CSA scrambling(optional).
-
CI slot:
-
unavailable
-
Other function:
-
BISS decryption,
-
More function:
-
Multiplexing, SimulCryption
-
Application:
-
Digital TV Head-end System
-
Protocol:
-
HTTP/RTSP/RTMPS/RTMP/UDP/ONVIF2.4

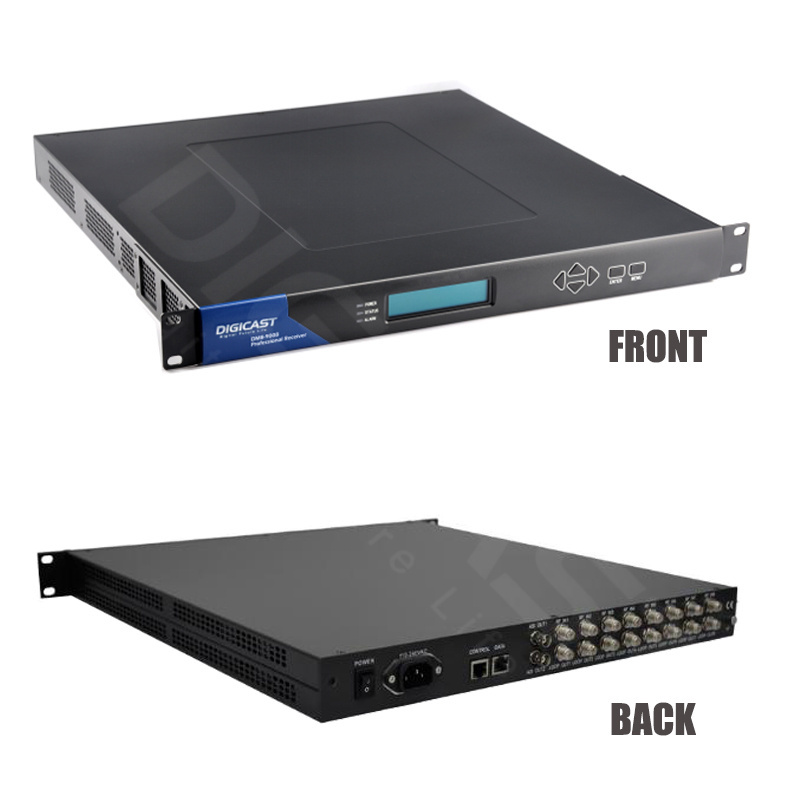

(DMB-9008B) IPTV Broadcasting System 8 channels DVB-S/S2 FTA Receiver Tuner to IP Converter
FEATURES
l Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option
l Each Tuner input with loop out interface, for the convenience of next device
l Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE
l IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
l Capable of multiplexing, SimulCryption, BISS decryption.
l Realize optimum transmission performance in low latency
l Easy and convenient operation, with keyboard on front panel and LCD display
l Web-based managemen t
|
SPECIFICATION |
|
|
Transport Stream Input Interfaces |
|
|
Tuner Input |
Interface: 8*Tuner(DVBS/S2/T/T2/C/ISDBT/Tb) input and loop out RF input range: 950MHz~2150MHz(DVBS/S2) Input level: 65~25dBm Connector: Ffemale type, 75ohm Symbol rate: 2~45Msps for QPSK/8PSK Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ; DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Standard: DVB S comply to EN300421 DVB S2 comply to EN302307 LNB Power Output: 0V/+DC 13V/18V, Imax=400mA |
|
Transport Stream Output Interfaces |
|
|
ASI Output |
2 x ASI(independent), impendence 75Ω , BNC Female 188/204 Bytes MPEG TS per packet length Bit Rate≤100Mbps each |
|
IP Output |
Output: 246*SP TS or 14*MPTS over IP Interface: GigE port(100/1000M baseT Ethernet),RJ45 Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol Transmission mode: Unicast or Multicast TS packet Length: 7 x 188Byte |
|
Transport Stream Processing |
|
|
Re-multiplexing |
Capable of multiplexing, BISS decryption |
|
GENERAL OPTIONS |
|
|
Control and Management |
Interface: 1*RJ45,10/100 BaseT network interface Remote control: web-based management Local operation: keyboard on front panel, LCD display
|
|
Physical Parameters |
Voltage: 90~260VAC, 50/60Hz Consumption: 25W Operating temperature: 0~50°C Storage temperature: 10~70°C Relative humidity: 10%~90%(non-condensing) Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU) Weight: 4 KGS
|
Overview
DMB-9008B 8Channel Professional Receiver works with TS over IP technology. De-modulate the Tuner signals to DVBASI signals, encapsulating TS over IP signals transmission. Meanwhile capable of multiplexing, SimulCryption, BISS decryption. This Multichannel Professional Receiver can accept 8*Tuner(DVBS/S2/T/T2/C/ISDBT/Tb) input signals, demodulate to 2*ASI(independent) output and encapsulate to IP packet, then output 246*SPTS or 14*MPTS over IP addresses or ports. Adopting Gigabit Ethernet interface, DMB9008B 8Channel Professional Receiver features high I/O bit rate, powerful correction capability, low error rate, etc.. It has become the bridge between the new generation IP network and traditional DVB network, which is suitable for IPTV & OTT headend contribution system.
