Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Voltage:
-
AC380V 3P 50HZ
-
Dimension(L*W*H):
-
4820 * 2200 * 1860mm
-
Weight (KG):
-
1500
-
Motor:
-
Stepper/ Servo
-
Spindle power:
-
3.5KW / 4.5KW / 6KW
-
Guide:
-
Taiwin Hiwin Linear Guide
-
Transmission:
-
Helical Rack and Pinion
-
Control System:
-
DSP/Nc Studio
-
Table Structure:
-
T-Slot Table
-
Dust Collector:
-
Double Bag Dust Collector
-
Working Speed:
-
8-15m /Min
-
Software:
-
Artcam Software
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Voltage:
-
AC380V 3P 50HZ
-
Dimension(L*W*H):
-
4820 * 2200 * 1860mm
-
Weight (KG):
-
1500
-
Motor:
-
Stepper/ Servo
-
Spindle power:
-
3.5KW / 4.5KW / 6KW
-
Guide:
-
Taiwin Hiwin Linear Guide
-
Transmission:
-
Helical Rack and Pinion
-
Control System:
-
DSP/Nc Studio
-
Table Structure:
-
T-Slot Table
-
Dust Collector:
-
Double Bag Dust Collector
-
Working Speed:
-
8-15m /Min
-
Software:
-
Artcam Software
Product Description

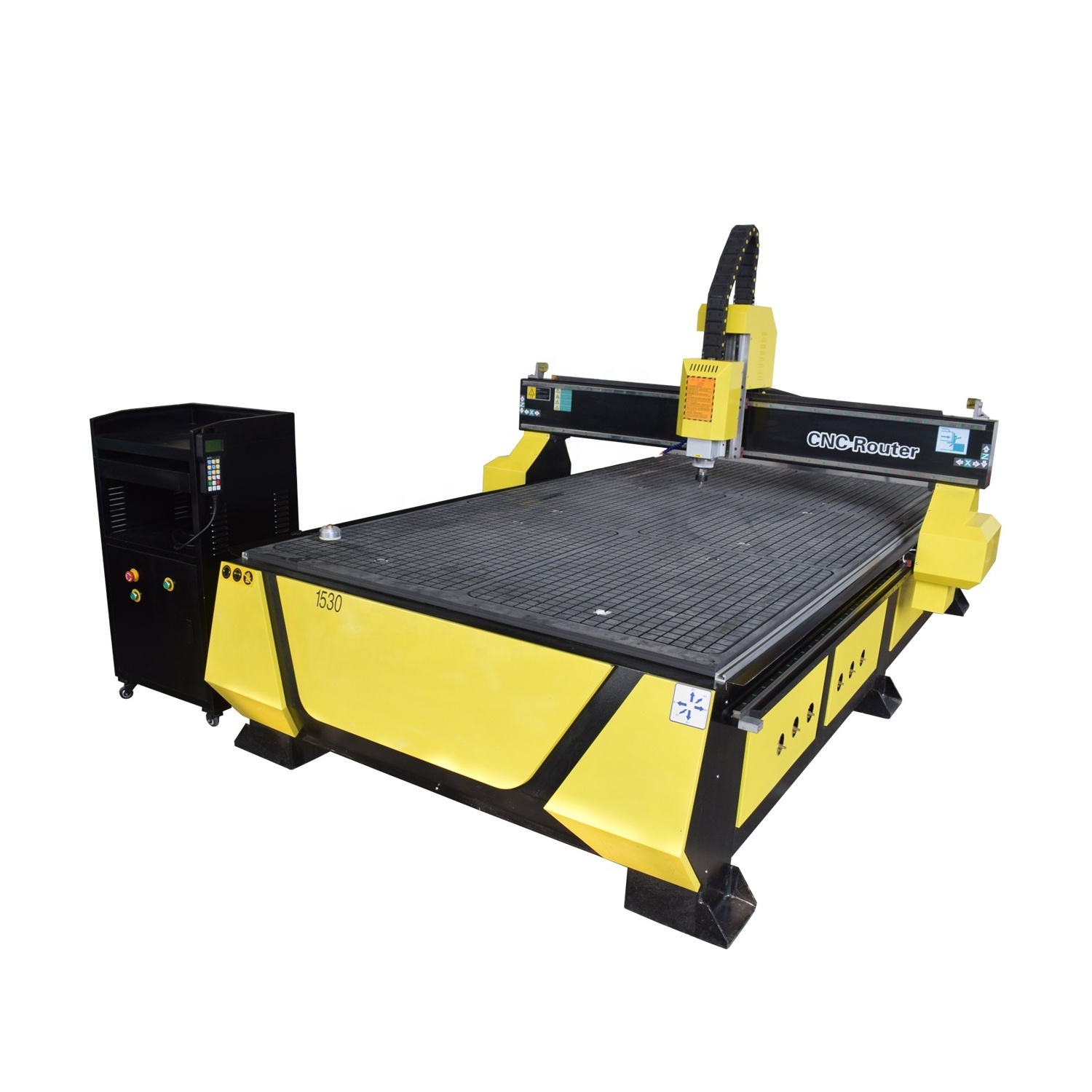

This is promotion type FM1325 cnc router for agent customers, T-slot table, NCstudio control system, step motor and drivers, 3.0kw water cooling spindle etc.
Also have FM1530, FM2030, FM2040 ETC. Machine model can be customized.
2 Years warranty the whole life technical support, online training also can send engineer do training at foreign factory.
2 Years warranty the whole life technical support, online training also can send engineer do training at foreign factory.
Specification
|
Description
|
Parameter
|
|
X, Y, Z Working Area
|
3000*1500*200mm
|
|
X, Y, Z Traveling Positioning Accuracy
|
±0.02/300mm
|
|
X, Y, Z Repositioning Accuracy
|
±0.02mm
|
|
Table Surface
|
T-slot table
|
|
Frame
|
Welded steel tube structure
|
|
Spindle
|
3.5KW Air cooling spindle
|
|
Control system
|
NCstudio control system/ DSP / NK series
|
|
Guide rail
|
Taiwan HIWIN square rail
|
|
Ball screw
|
Taiwan TBI ball screw
|
|
Transmission way
|
Rack and Pinion Drive
|
|
Motor
|
Leadshine step motor / servo motor
|
|
Software
|
Artcam /Type3
|
|
Dust collector
|
Double bag
|
|
Voltage
|
380V 3P 50HZ / 220V 3P 50HZ
|
Machine Main Parts
Application Industry and Materials:
Woodworking Industry:
CNC router can be used for solid wood furniture, mahogany furniture, MDF paint doors, solid wood doors, composite doors, cupboard doors and windows, beside cabinets, folding screen etc.
The advertising Industry:
The advertising Industry:
CNC router can engrave all kinds of signage, logo products, trademarks, nameplates, badges, decorative gift, embossed Medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards(drilling and engraving), Double color boards, acrylic etc.
Artwork Industry:
In the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Exhibition Industry: Showcases, etc.
Exhibition Industry: Showcases, etc.
