LED High Quality Indoor Outdoor Round Screen LED Circle Display Video Wall Circular TV Screen

LED High Quality Indoor Outdoor Round Screen LED Circle Display Video Wall Circular TV Screen

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9530

≥3 Pieces

US $9500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: full color

Panel Size:: diameter 3 m

Place of Origin:: Guangdong, China

Model Number:: ROUND 54

Brightness:: Indoor 600-850 cd/㎡/Outdoor 3500-4500 cd/㎡

pixel density:: custom

Contrast Ratio:: custom

Color Depth:: full color

Lifespan (hours):: 100000

IP Rating:: Indoor IP32 / Outdoor IP65

HS Code:: 8528591090

Resolution:: custom

View Angle（H/V）:: 120°

LED Configuration:: SMD2020

Scan mode:: 1/8 Scan / 1/9 Scan / 1/5 Scan

Control method:: Asynchronous/synchronous(WIFI/4G cloud service/computer etc.

Maintenance method:: Front-maintenance

Screen weight:: Custom made according to size

Installation method:: Hanging installation, fixed in the wall, fixed to the wall

Quick Details

Application:: Indoor, Outdoor

Type:: LED

Brand Name:: XD Vision

Color:: full color

Panel Size:: diameter 3 m

Place of Origin:: Guangdong, China

Model Number:: ROUND 54

Brightness:: Indoor 600-850 cd/㎡/Outdoor 3500-4500 cd/㎡

pixel density:: custom

Contrast Ratio:: custom

Color Depth:: full color

Lifespan (hours):: 100000

IP Rating:: Indoor IP32 / Outdoor IP65

HS Code:: 8528591090

Resolution:: custom

View Angle（H/V）:: 120°

LED Configuration:: SMD2020

Scan mode:: 1/8 Scan / 1/9 Scan / 1/5 Scan

Control method:: Asynchronous/synchronous(WIFI/4G cloud service/computer etc.

Maintenance method:: Front-maintenance

Screen weight:: Custom made according to size

Installation method:: Hanging installation, fixed in the wall, fixed to the wall

Products Description

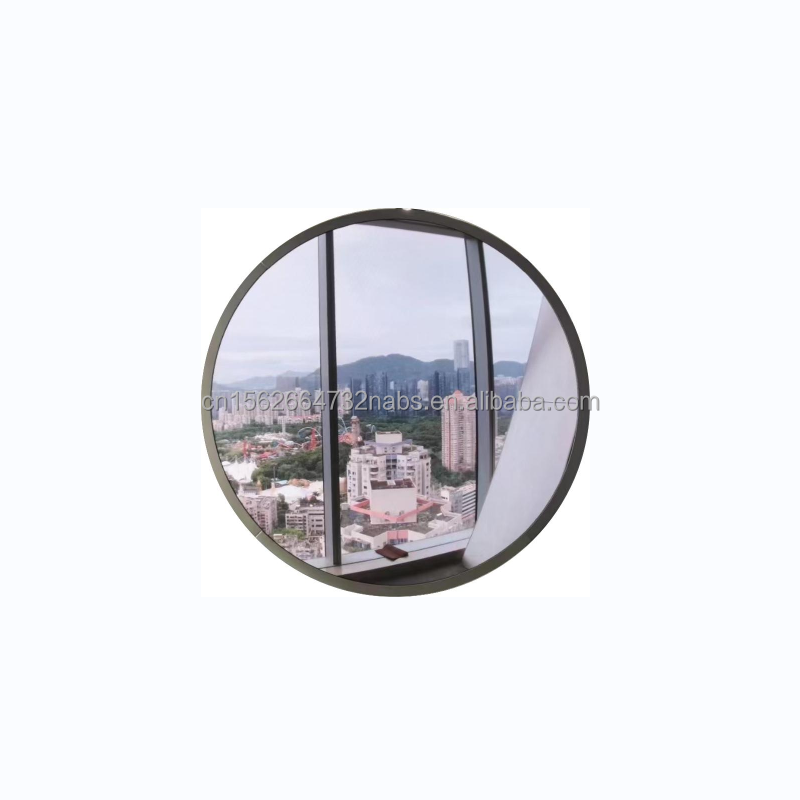

XD VISION Indoor and Outdoor Round/Circular LED display

True color screen, 360° viewing angle, all-round display

Stylish design, seamless assembly, make your ad more attractive

Various pitches and flexible sizes

Our round LED screens are available in a variety of pitch options

It also has flexible dimensions and is available in our modular designs

The circular LED display is both practical and artistic

Whether you need a simple and practical logo sign or a artistic and beautiful LED screen, the XD Vision circular screen can meet your needs:

Multiple Shapes

From the simplest LED circular screen, XD Vision has derived a variety of shapes such as semicircle, double circle, ring, ellipse oblong oval, drop and arch shape.

Multiple Way of Installation

Can be lifted, wall mounted, side mounted, good-looking and easy to use.

Wide Range of Applications

Round/Round LED Displays are great for creative designs and solutions,

Such as retail advertisements, shops, exhibitions, stage backdrops, DJ booths, events, bars and more.

SUPPORT A VARIETY OF CONTROL METHODS

Wired, wireless WiFi, USB playback， support realize many tasks such as advertisement publish, updating, management etc.

IP65 WATERPROOF

Outdoor round display with IP65 grade waterproof, 2500-4500nits high brightness, adjustable, anti-dust,anti-static

FRONT MAINTENANCE

It is convenient for maintenance, and only half of the modules needs to be removed for maintenance

XD Vision insists on producing high quality products

Outdoor and Indoor, Single and Double side for Choice

Can be customized with or without edges

Creative smooth edge frame, beautiful and generous

Simple and easy to installIt

It could show logo picture/text/video .

24/7 hours available service in English. Provide free training in factory with our professional engineer. Technical Support: Our engineer can provide instruction during installation, also on-site service

Product Paramenters

INDOOR ROUND LED DISPLAY

Pixel pitch	2mm	2.5mm	3.125mm	3.91mm	4mm
Pixel composition	1R1G1BLED(SMD1515)	1R1G1BLED(SMD2020)	1R1G1BLED(SMD2020)	1R1G1BLED(SMD2020)	1R1G1BLED(SMD2020)
Size, Diameter	120mm/480mm/840mm/1200mm/560mm/2040mm2520mm/3000mm	250mm/400mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm	250mm/500mm/1000mm/1500mm/2000mm/2500mm/3000mm	250mm/500mm/1000mm/1500mm/2000mm/ 2500mm/3000mm	69.216mm
LED package form	Kinglight/Nationstar	Kinglight/Nationstar	Kinglight/Nationstar	Kinglight/Nationstar	Kinglight/Nationstar
Maximum white balance brightness	600-850 cd/㎡	600-850 cd/㎡	600-850 cd/㎡	600-850 cd/㎡	600-850 cd/㎡
Refresh rate	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz	≥1920Hz
Control method	Asynchronous/synchronous(WIFI /4G cloud service/computer etc.	Asynchronous/synchronous(WIFI /4G cloud service/computer etc.	Asynchronous/synchronous(WIFI /4G cloud service/computer etc.	Asynchronous/synchronous(WIFI /4G cloud service/computer etc.	Asynchronous/synchronous(WIFI /4G cloud service/computer etc.
Waterproof grades and materials	Indoor use IP32	Indoor use IP32	Indoor use IP32	Indoor use IP32	Indoor use IP32
Maintenance method	Front-maintenance	Front-maintenance	Front-maintenance	Front-maintenance	Front-maintenance
Screen weight	Custom made according to size	Custom made according to size	Custom made according to size	Custom made according to size	Custom made according to size
Installation method	Hanging installation, fixed in the wall, fixed to the wall	Hanging installation, fixed in the wall, fixed to the wall	Hanging installation, fixed in the wall, fixed to the wall	Hanging installation, fixed in the wall, fixed to the wall	Hanging installation, fixed in the wall, fixed to the wall

OUTDOOR ROUND LED DISPLAY

Pixel composition	1R1G1BLED （SMD1921）
Pixel pitch	3.076mm/4mm/4.68mm/5.926mm/8mm
Size	Diameter 3500mm,(ph3)600mm(ph4, ph4.68), 640mm(ph5.926, ph8),
Module resolution	64X64 / 54X54 / 40X40
LED package form	Kinglight / Nationstar
Maximum white balance brightness	3500-4500 cd/㎡
Device drive	1/8 Scan / 1/9 Scan / 1/5 Scan
Refresh rate	≥1920Hz/3840HZ
Control method	Asynchronous/synchronous(WIFI/4G cloud service/computer etc.
Waterproof grades and materials	IP65
Maintenance method	Front-maintenance
Screen weight	≤16Kg/Pcs
