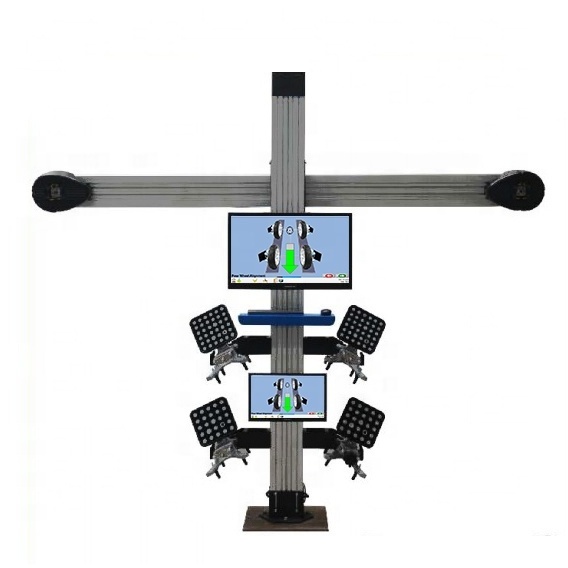

AIOV3 Wheel Alignment Machine Without Cabinet, Optional Auto Lifting Device Integrated Machine

AIOV3 Wheel Alignment Machine Without Cabinet, Optional Auto Lifting Device Integrated Machine

Features:

1. The products have complete independent intellectual property rights.

2. Vehicle selection supports manual input and brand inquiry, which is really convenient and fast.

3. The system supports two measure methods: Rollback, no-rollback. It supports five functions: One-key fast detection, standard detection, four-wheel subsection detection, two-wheel positioning and single-wheel positioning.

4. Supports 21 languages.

5. The target does not have electronic components, waterproof and anti falling, more stable.

Intelligent recognition system, built-in image backing removal function, more real and effective data acquisition, high measurement accuracy.

6. The 3D camera has built-in cache processing, data will not be lost and transmission is fast.

7. It has the functions of intelligent exposure, infrared compensation and automatic adjustment. Strong light, weak light, polarized environment are adaptable. Wide range of use, longer service life.

8. Aluminum column.

Technical Data:

Machine Configuration:

Hardware Standard Configuration: Standard Control Cabinet, Fixed Column, Beam Assembly, Wheel Clamp, Targets, Turntables, Safety Rope, Rubber Block, Brake Fixer, Steering Holder, Computer, Monitor.

Hardware Options: Camera 1.3/5 IMX; Targets 5''/8''/12'', Visible/Invisible Types; Monitor: Single/Double Screen; Printer.

Fuction - SDK

Contains the standard dynamic link library, examples of procedures and documentation. For customers to develop high precision V3D vision measurement system. Mainly has the following functions:

1. 3D camera internal parameters acquisition, exposure time, infrared light intensity control.
2. Image acquisition, image enhancement, image display.
3. Radial lens distortion, tangential distortion, nonlinear distortion correction.
4. High accuracy elliptical contour extraction, ellipse fitting.
5. Elliptical center projection error correction.
6. Mark pattern extraction, obtaining the target disk plane position and direction.
7. Relationship between the calculated 3D camera.
8. Rolling radius and the rolling wheel plane calculation.

Technical Support:

Software

Full Screen Reading

21 National/Regional Languages

Pad Remote Link

Three-dimensional Animation Car Marshalling

Graphic Report

Operation Manual
