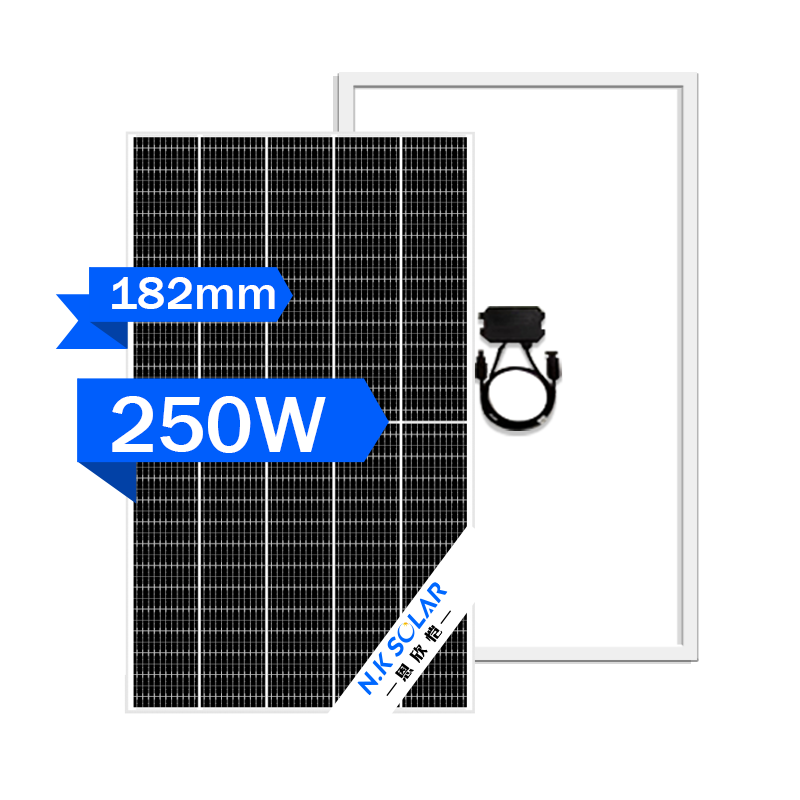

Quick Details
-
Warranty:
-
25YEARS Power Output Warranty
-
Brand Name:
-
N.K Solar
-
Model Number:
-
N.K-250W-120
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1650*992*30mm
-
Weight:
-
16.5KG/Pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
monocrystalline silicon
-
Junction Box:
-
IP67: 3 Bypass Diode
-
Packaging:
-
31pcs/ Pallet 1160pcs/ 40'HQ Container
-
Power Tolerance:
-
0~+3%
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Certificate:
-
IEC61215;IEC61730:ISO9001
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
15.27%
-
Warranty:
-
25YEARS Power Output Warranty
-
Brand Name:
-
N.K Solar
-
Model Number:
-
N.K-250W-120
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1650*992*30mm
-
Weight:
-
16.5KG/Pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
monocrystalline silicon
-
Junction Box:
-
IP67: 3 Bypass Diode
-
Packaging:
-
31pcs/ Pallet 1160pcs/ 40'HQ Container
-
Power Tolerance:
-
0~+3%
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Certificate:
-
IEC61215;IEC61730:ISO9001
Products Description
Product Paramenters
|
Electrical Parameters at STC
|
|
|
|
|
|
|
||||||
|
Maximum Power (Pmax/W)
|
250
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Module Efficiency(%)
|
15.27%
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
||||||
|
Open Circuit Voltage (Voc/V)
|
35.88
|
49.15
|
49.35
|
49.55
|
49.75
|
49.95
|
||||||
|
Short Circuit Current (lsc/A)
|
8.85
|
13.74
|
13.82
|
13.89
|
13.97
|
14.05
|
||||||
|
Voltage at Pmax (Vmp/V)
|
30.07
|
41.27
|
41.45
|
41.62
|
41.80
|
41.97
|
||||||
|
Current at Pmax (Imp/A)
|
8.32
|
12.85
|
12.91
|
12.98
|
13.05
|
13.11
|
||||||
|
Temperature Coefficient of Isc
|
+0.046%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
|
-0.276%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
|
-0.350%℃
|
|
|
|
|
|
||||||
|
Mechanical Specification
|
|
|
|
|
|
|
||||||
|
Dimension
|
1650*992*30mm
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Weight
|
16.5kg/pcs
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
||||||
|
Solar Cell
|
120pcs(5*24)
|
49.15
|
49.35
|
49.55
|
49.75
|
49.95
|
||||||
|
Junction Box
|
IP67, 3 bypass diode
|
13.74
|
13.82
|
13.89
|
13.97
|
14.05
|
||||||
|
Connector
|
MC4, 4mm
2
, (+)700mm,(-)700mm [customizable]
|
41.27
|
41.45
|
41.62
|
41.80
|
41.97
|
||||||
|
Packing
|
31Pcs/Pallet
|
12.85
|
12.91
|
12.98
|
13.05
|
13.11
|
||||||
Details Images
High Transmittance Tempered Glass
High Temperature Resistance, Strong Thermal Stability
A+ Class Solar Cell
JA Solar 182mm Solar Cell Improve Module Power Output and Reliability.
Anti-Corrosion Frame
35mm-50mm Anodised Aluminium Alloy (Black or Sliver Optional)
EVA Film
Good Encapsulation And Protect Cells From Vibration With Longer Durability.
Quality Control
1.Solar Cell Slicing
2.Automatic Layout
3.
EL Test Before Lamination
4.Lamination
5Appearance Inspection
6.Final EL Test
7.IV Test
8.Packing
