Quick Details
-
Brand Name:
-
NOYARK
-
Model Number:
-
SMF-C/C
-
Color:
-
White, gray, blue black
-
Thickness:
-
0.11mm
-
Width:
-
≤1.2m
-
Length:
-
Cut to size
-
Working Voltage:
-
36VAC
-
Control Mode:
-
Car ACC and window lifter button
-
Power Consumption:
-
<4W/m2
-
Transparency:
-
>85%
-
Installation Method:
-
Self-adhesive
-
Lifespan:
-
≥10 years
Quick Details
-
Material:
-
Plastic
-
Size:
-
Custom
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
NOYARK
-
Model Number:
-
SMF-C/C
-
Color:
-
White, gray, blue black
-
Thickness:
-
0.11mm
-
Width:
-
≤1.2m
-
Length:
-
Cut to size
-
Working Voltage:
-
36VAC
-
Control Mode:
-
Car ACC and window lifter button
-
Power Consumption:
-
<4W/m2
-
Transparency:
-
>85%
-
Installation Method:
-
Self-adhesive
-
Lifespan:
-
≥10 years
Cheap price self adhesive electrochromic window tint for vehicle
21st century air travel, train travel and car travel includes the ability to dynamically adjust your windows and sunroofs at the touch of a button, with over 99% UV protection
Upgrade and modernize your transportation environment and services by providing the ability to adjust light and privacy, which creates comfort for both passengers and operators.
Designed to retrofit to existing glass surfaces, smart pdlc tint film by Noyark provides a simple and cost effective alternative to other switchable smart film technologies.
It is manufactured with 1 PDLC layer, 2 ITO films, 2 PET films and a self-adhesive cling layer on one side (peel and stick) which makes it easy to apply to car window glass surfaces (no specialist installation equipment required).

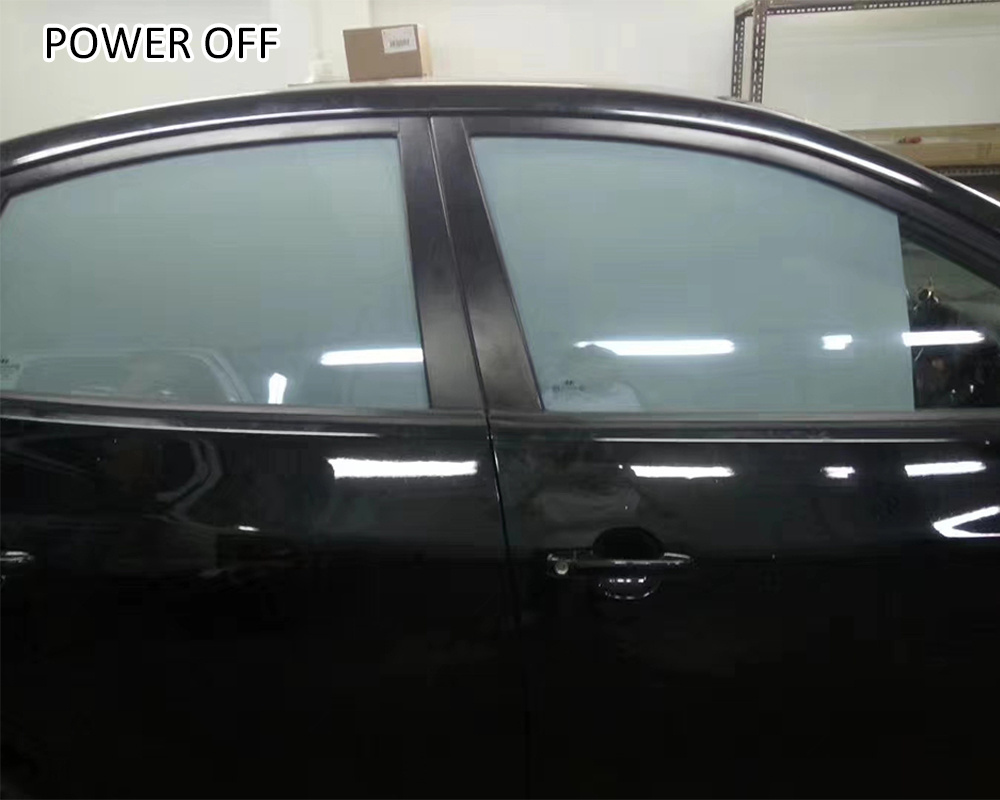

A simple ON - OFF mode switches the film from being clear(transparent) to frosted(opaque).
Custom shapes and sizes are available, we have manual cutting machine, automatic cutting machine and laser cutting machine.
|
Item |
Power |
Value |
|
|
Optical Parameters |
Visible Light Transmission |
ON |
≥85% |
|
OFF |
≥60% |
||
|
Parallel Light Transmittance |
ON |
≥ 83% |
|
|
OFF |
≤5% |
||
|
Haze |
ON |
≤5% |
|
| OFF | ≥96% | ||
|
Viewing Angle |
ON | >150º | |
|
Electrical Parameters |
Operating Voltage |
ON |
36VAC |
|
Power Consumption |
ON |
<4W/m2 |
|
|
Control Mode |
ON & OFF |
Car ACC and window lifter button |
|
|
Dimmer |
ON |
N/A |
|
|
Response Time |
ON-->OFF |
<10ms |
|
|
OFF-->OFF |
<10ms |
||
|
Physical Parameters |
Color |
ON & OFF |
White, gray, blue black |
|
Thickness |
ON & OFF |
0.11mm |
|
|
Width |
ON & OFF |
≤1.2m |
|
|
Length |
ON & OFF |
Cut to size |
|
|
Lifespan |
ON |
>10 years |
|
|
Environmental Parameters |
Working Temperature |
ON |
-35℃—+75℃ |
|
Storage Temperature |
OFF |
-50℃—+120℃ |
|
1. Car Window Size Measurement
1.1 Lifting Type Windows: Measure the maximum size for length and height. Add extra 10cm to the smaller size and extra 5cm to the bigger size, they are the precut smart film sizes.
1.2 Fixed Windows: Measure the maximum size for length and height, add extra 5cm of each and they are the precut smart film sizes.
1.3 Front and rear windshield are not applicable.
2. Control Mode: Car ACC and Car Window Lifter Button.
3. Important Notices
3.1 The installation is wet stick.
3.2 No water or aqueous liquids are allowed during the whole cleaning and installation process. The smart film can only contact with neutral substances. Acid and alkaline substances will corrode the smart film.
3.3 Special installation liquid is needed. The installation liquid formula and installation manual will be sent on the receipt of your specific inquiry.
Noyark smart pdlc tint film can be used in the Car Window, Business Class Partitions, Cockpit Partitions and Driver Privacy Screens of Automobile/Train/Metro/Airplane/Marine/Yacht, etc.
