Quick Details
-
Lift Speed:
-
7 m/min
-
Weight (KG):
-
500 kg
-
Product name:
-
workshop 5 ton wire rope electric hoist for single girder crane
-
Color:
-
Customised
-
Application:
-
Construction Site Lifter
-
Capacity:
-
0.5-32t
-
Type:
-
Liftling Equipment
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control Method:
-
Pendant +Remote(Customized)
-
MOQ:
-
1 Set
-
Protection Class:
-
IP44/IP54
-
Package:
-
Plywood Case Package
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dejun
-
Lift Speed:
-
7 m/min
-
Weight (KG):
-
500 kg
-
Product name:
-
workshop 5 ton wire rope electric hoist for single girder crane
-
Color:
-
Customised
-
Application:
-
Construction Site Lifter
-
Capacity:
-
0.5-32t
-
Type:
-
Liftling Equipment
-
Power supply:
-
110V/220V/230V/380V/440V
-
Control Method:
-
Pendant +Remote(Customized)
-
MOQ:
-
1 Set
-
Protection Class:
-
IP44/IP54
-
Package:
-
Plywood Case Package
Product Details

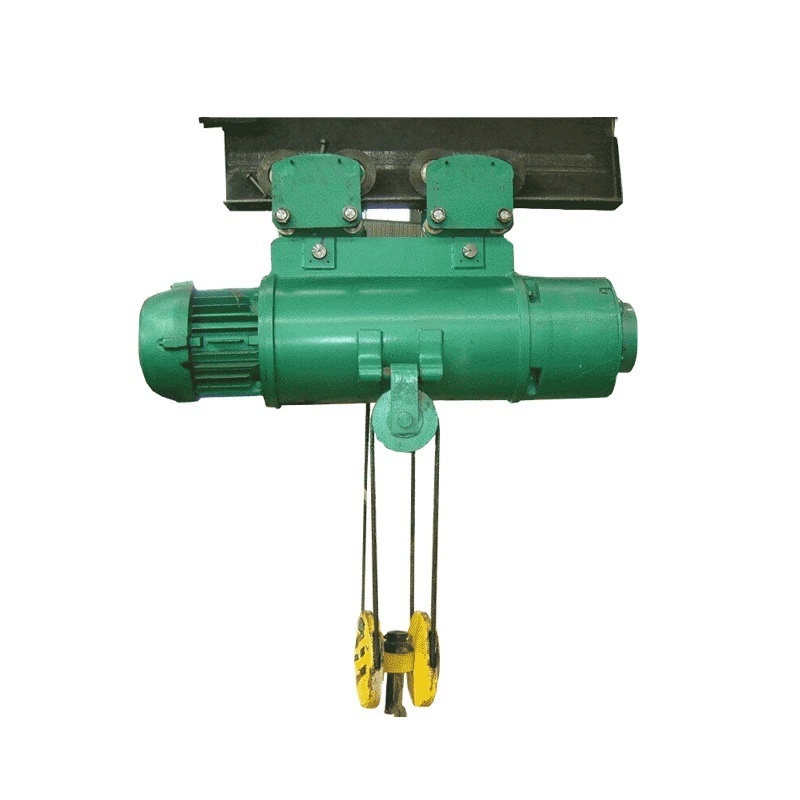

CD/MD type wire rope pulling hoist
CD/MD type wire rope electric hoist is a kind of small lifting equipment, which is fixed on winch beam, used for lifting goods or for crane, gantry crane, cantilever crane and other industrial and mining crane enterprises.
The lifting weight of single speed wire rope electric hoist is 0.5-32 tons, the working level is M3 and M4.
Parameters
|
Type
|
CD/MD type wire rope electric hoist
|
|
|
|
|
|
|
|
|||||||
|
Capacity (t)
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
16
|
|||||||
|
Lifting height (m)
|
3, 6, 9
|
6, 9, 12
|
6, 9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
6, 9, 12, 18, 24, 30
|
|||||||
|
Lifting speed (m/min)
|
8(0.8/8)
|
|
|
|
|
|
7(0.7/7)
|
3.5(0.35/3.5)
|
|||||||
|
Travel speed (m/min)
|
20
|
20/30
|
|
|
|
|
|
18
|
|||||||
|
Rope dia (mn)
|
3.6
|
4.8
|
7.4
|
11
|
13
|
15
|
|
17.5
|
|||||||
|
Rope specification
|
6*19
|
6*37
|
|
|
|
|
|
|
|||||||
|
Power source
|
380V 50HZ 3P
|
|
|
|
|
|
|
|
|||||||
