Quick Details
-
USB protocol:
-
USB2.0 HS/FS
-
Audio:
-
Built-in Mic
-
size:
-
/
-
Special Features:
-
Synchronization Dual Lens USB Camera, USB CAMERA
-
UVC compliance:
-
Plug and play, driverless
-
Resolution:
-
2Megapixel Full HD 1920x1080P
-
interface:
-
High peed USB2.0
-
OTG:
-
support
-
Support OS:
-
Windows, Linux, Android, Mac
-
Function:
-
USB CAMERA
-
Video Compression Format:
-
MJPEG \ YUY2
-
Data Storage Options:
-
USB CAMERA
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HQCAM
-
Model Number:
-
HQ-RY9231831
-
USB protocol:
-
USB2.0 HS/FS
-
Audio:
-
Built-in Mic
-
size:
-
/
-
Special Features:
-
Synchronization Dual Lens USB Camera, USB CAMERA
-
UVC compliance:
-
Plug and play, driverless
-
Resolution:
-
2Megapixel Full HD 1920x1080P
-
interface:
-
High peed USB2.0
-
OTG:
-
support
-
Support OS:
-
Windows, Linux, Android, Mac
-
Function:
-
USB CAMERA
-
Video Compression Format:
-
MJPEG \ YUY2
-
Data Storage Options:
-
USB CAMERA

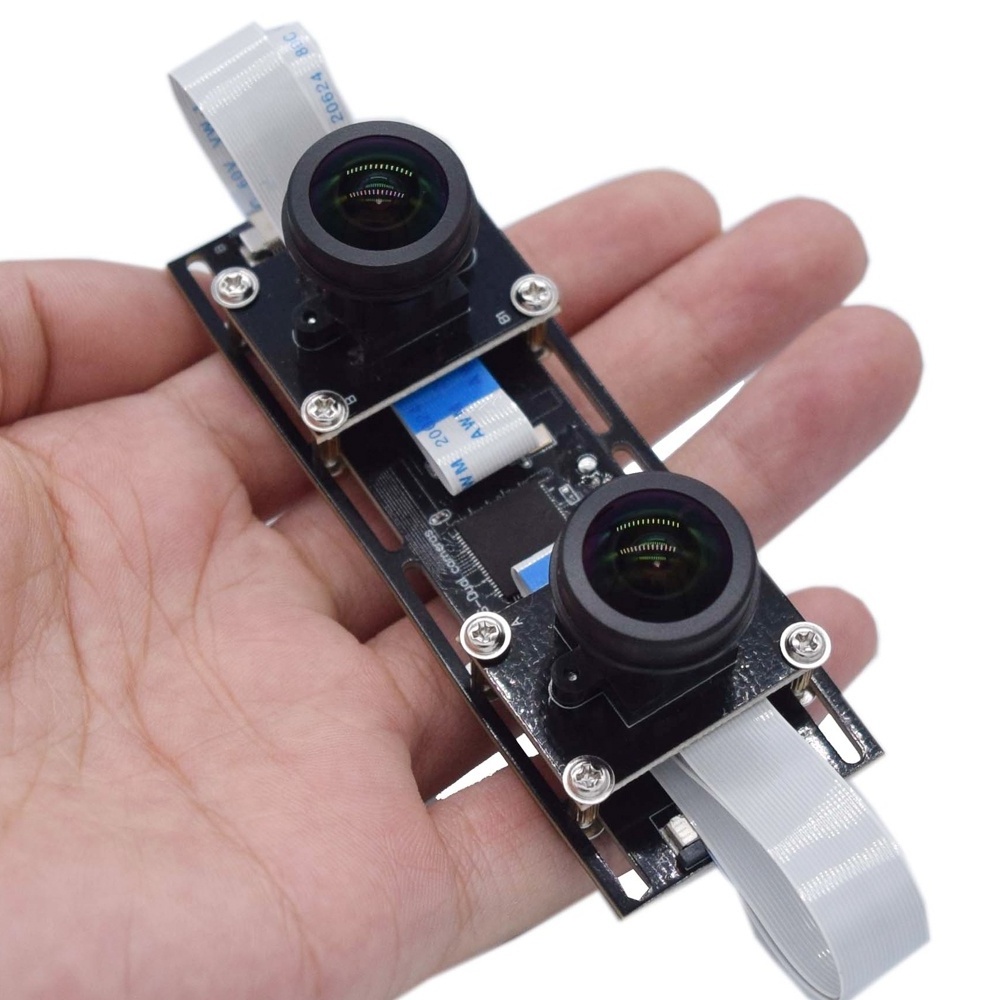

HD 1080P Fisheye Wide-angle Flexible Synchronization Stereo Webcam Dual Lens 30FPS USB Camera Module 3D Video VR Virtual Reality
| DSP | MK656 2.0 standard, compatible with 2.0 |
| Imaging speed | < 0.8 seconds |
| The resolution of the | 1280 * 480128 * 960 (2560 * 960) |
| The sensor | 1/3cmos hd, dual sensor (magnesium light) |
| Image color | 24 |
| Image format | YUY2, MJPEG |
| interface | usb |
| The light source | Evenly fill light |
| system | Windows XP WIN7 SP2, Vista, Linux 2.6.26, ANDRIOND |
| Distortion index | < 2% |
| The white balance | Automatic, manual |
| Exposure control | Automatic, manual |
| Signal to noise ratio | The < 50 db |
| Scope of object distance | 10MM to infinity. |
| Frame rate | 30 frames per second |
| LENS | 4P |
eature:
Synchronization 5Megapixel HD 1080P Stereo USB2.0 Camera Module with Flexible Cable
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows, Linux, Android, Mac
OTG support
Product detail:
Synchronization Dual Lens
960P USB Camera Module
High Spead USB2.O
Typical application
1: ATM,Kiosk,POS,TV box
2: advertising cameras
3: one camera
4: Smart TV built-in camera
5: Construction Equipment
6: Banking equipment
7: body switch
8: Scanner
9: a mobile terminal device
10: Medical diagnostic image acquisition
11: fingerprints, palm prints image acquisition
12:video door phone
13:HD surveillance
Remarks:
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.
Parameter description:
Photoreceptor: 1/3.OV4689
The highest effective pixels: 3040 (H) *1520 (V),
Sensitivity:1900mV/Lux-sec
Pixel Size:2 m x2 M
Image area:5440 m x 3072 M
The output image format: MJPEG / YUV2 (YUYV)
Camera board assembly technology: SMT (ROSH)
Focus: automatic
Distance: 5CM-100M
Central definition: 1000LW/PH (Center)
Signal to noise ratio (s/n RATION): 39.3dB
Dynamic range: 64.6dB
Frame rate:MJPG :3040*1080/30fps,
3040*1520/
30fps,
2560*720/
30fps,
1280*480/
30fps,
2560*960/
30fps,
1600*600/
30fps
YUY2:
3040*1080/1fps,
3040*1520/
1fps,
2560*720/
1fps,
1280*480/
5fps,
2560*960/
1fps,
1600*600/
3fps
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
AEC: support for automatic exposure control
Automatic white balance AEB support
Automatic gain control AGC support
Can adjust the exposure parameters of brightness and contrast color saturation color resolution gamma white balance negative contrast
Size: 1/3 lens specifications, Relative Illumination (Sensor): 70%
Infrared filter: 650 + 10nm
Power supply interface: USB BUS and POWER 4P-2.0mm socket
Voltage: DC5V
Current: 170mW (1280*480); 180mW (2560*960);
Size: 900*330mm, the lens can be extended, movable and fixed
Storage temperature: -30 C to 70 degree C
Working temperature: 0 degree C to 60 degree C
USB wire: 1.2 meter data line, customizable length
Working humidity: 15%-85%
System support: Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4 or above with UVC
Lens: 5MP 1.8mm,5MP 1.7mm,5MP 3mm Zero distortion,5MP 4mm Zero distortion,5MP 3.6mm
Angle(FOV): 1.8mm 170°,1.7mm 180°,3mm 95°,4mm 85°,3.6mm 92°
usb
| PRODUCT CATEGORIES | ||||||||
| web camera | usb camera size 15x15mm | 4K | OTG | |||||
| endoscopic | Iris recognition | Global Shutter | Binocular camera | |||||
(2x1920)x1080 MJPEG 30fps, YUY2 30fps
(2x1280)x720 MJPEG 30fps, YUY2 30fps
(2x640)x480 MJPEG 30fps, YUY2 30fps
Focus: Manual
Synchronization: Yes
Resolution & frame :
(2x1920)x1080 MJPEG 30fps, YUY2 30fps
(2x1280)x720 MJPEG 30fps, YUY2 30fps
(2x640)x480 MJPEG 30fps, YUY2 30fps
Compression format: MJPEG \ YUY2
Interface: USB2.0
Lens Parameter : 3.6mm(2.1/2.8/6/8/12/16mm,fisheye optional), 30-180 degree optional
Voltage: DC5V
USB Video Class(UVC): Support
OTG: Support
Auto exposure AEC: Support
Auto white blance AEB: Support
Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB
Dimension: Board 90mm(L)x30mm(W),Cable 100mm(L),other size can be customized
Operating Temperature: -20°C to 70°C
Support OS: Windows, Linux, MAC, Android
