* For all applications (live or dead cables) without additional instruments
* Set includes a transmitter and a receiver
* Proven digitally coded sender signal guarantees clear signal identification
* Transmitter with LC-display for transmitting level, transmitting code and external voltage
* Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
* Automatic or manual adjustment of receiving signal sensitivity
* Acoustical receiving signal switchable
* Auto-Power-Off
* Additional torch lamp function for working in dark environments
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FLUKE
-
Model Number:
-
2042
-
Product name:
-
FLUKE
-
Model:
-
2042
-
Voltage measurement range:
-
12 V, 50 V, 120 V, 230 V, 400 V
-
Frequency range:
-
0 - 60 Hz
-
Output signal:
-
125 kHz
-
Tracing depth cable location:
-
Tracing depth cable location
-
Main voltage detection:
-
0 - 0.4 m
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
FLUKE
-
Model Number:
-
2042
-
Product name:
-
FLUKE
-
Model:
-
2042
-
Voltage measurement range:
-
12 V, 50 V, 120 V, 230 V, 400 V
-
Frequency range:
-
0 - 60 Hz
-
Output signal:
-
125 kHz
-
Tracing depth cable location:
-
Tracing depth cable location
-
Main voltage detection:
-
0 - 0.4 m
Product Description
Safety Conformance
All inputs of the Fluke 2042 is protected to EN61010-1 CAT III 300V rating.
All inputs of the Fluke 2042 is protected to EN61010-1 CAT III 300V rating.

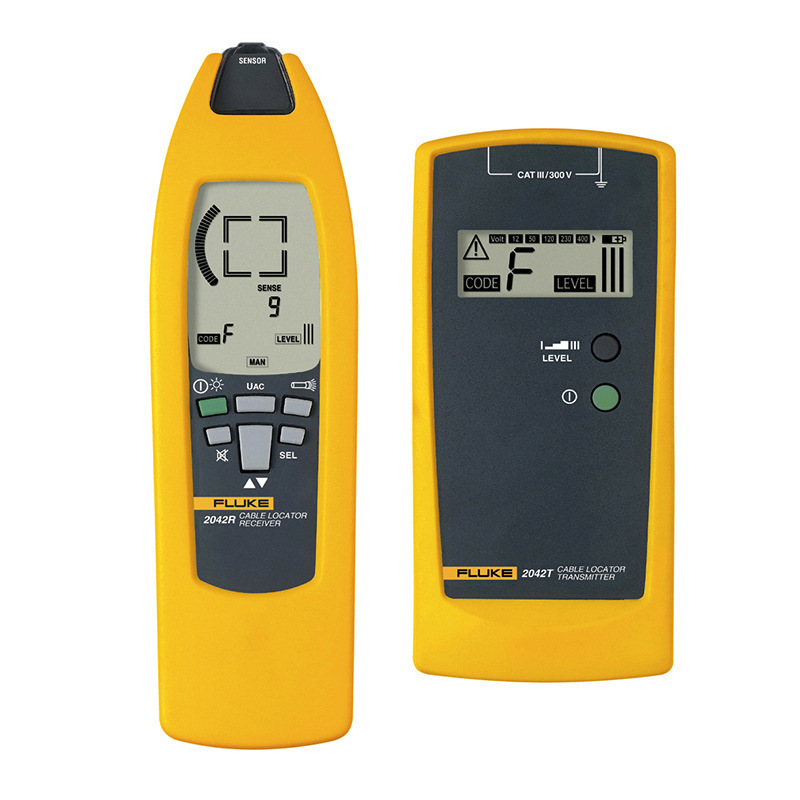

The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.
Fluke 2042 Professional General Purpose Cable Locator for Live or Dead Cables
The FLUKE Cable Locator consists of a transmitter and a receiver. The signal generated by the transmitter is made of a modulated current, generating an electro-magnetic field around a conductor. This electro-magnetic field induces a voltage within the receiving coil. The induced voltage is amplified, decoded, and converted to the original signal by the receiver, and finally displayed on the screen.The connecting parameter for the transmitter during an application must be a closed current circuit.
Specification
|
Voltage measurement range
|
Transmitter
|
12 V, 50 V, 120 V, 230 V, 400 V
|
|
Frequency range
|
Transmitter
|
0 - 60 Hz
|
|
Output signal
|
Transmitter
|
125 kHz
|
|
Voltage
|
Transmitter
|
Up to 400 V AC/DC
|
|
Tracing depth cable location
|
Receiver
|
0 - 2.5 m wall/underground cables
|
|
Main voltage detection
|
Receiver
|
0 - 0.4 m
|
