Quick Details
-
Weight:
-
1450 KG
-
Horse power:
-
25hp-260hp
-
Transmission:
-
Gear box
-
Tire:
-
9.5-24/11.2-24/12.4-24
-
Clutch:
-
Single Stage Clutch
-
Gear shift:
-
8F+2R shift
-
Engine type:
-
4 cylinder Engine
-
PTO Speed:
-
540/760 540/1000 r/min
-
Steering:
-
Hydaulic Steering
-
Linkage:
-
3-point
-
Differential lock:
-
Yes
Quick Details
-
Brand Name:
-
Tavol
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
LAIDONG/Xichai/YTO/Yunnei
-
Weight:
-
1450 KG
-
Horse power:
-
25hp-260hp
-
Transmission:
-
Gear box
-
Tire:
-
9.5-24/11.2-24/12.4-24
-
Clutch:
-
Single Stage Clutch
-
Gear shift:
-
8F+2R shift
-
Engine type:
-
4 cylinder Engine
-
PTO Speed:
-
540/760 540/1000 r/min
-
Steering:
-
Hydaulic Steering
-
Linkage:
-
3-point
-
Differential lock:
-
Yes
Product Description
Assemble the high quality tractors with the best hearts, fight for the smiles of billions of farmers around the world!!
Engine
In terms of power, this product uses a domestic first-line brand diesel engine, which has high reliability, stable quality and long service life.
Shift
8+8 gear, side shift; Reinforced chassis
More scope of use, bringing more benefits:
Higher strength, longer service life
Front Axle
Nreinforced front axle
Better sealing, higher strength, Longer service life
Clutch
9-inch double acting clutch, with first-line optimization Quality products
Good reliability and long service life, get more uses and benefits
Hydraulic Pump
Constant flow pump and gear pump, selected from the first line of high-quality Products
Good reliability and long service life
Hydraulic Steering System
Full hydraulic steering system, constant flow pump
More comfortable driving
Specification
|
Model
|
|

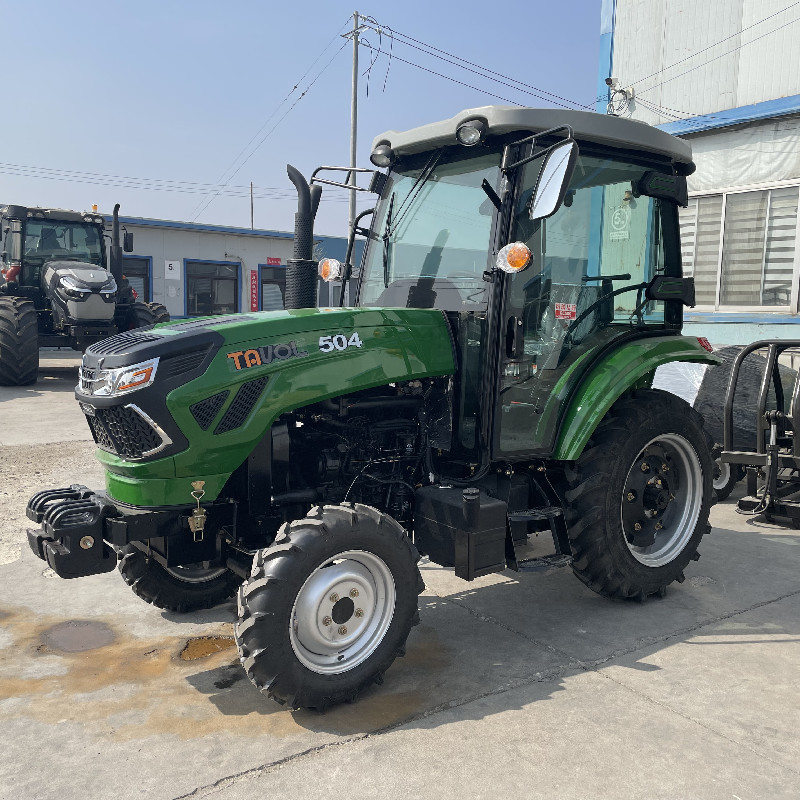

Tavol-504
|
||
|
Machine parameters
|
Type
|
4×4
|
||
|
|
Rated Traction( KN)
|
16.2
|
||
|
|
PTO Max Power (KW)
|
36.7
|
||
|
|
Dimensions(mm)
|
3560×1650×2350
|
||
|
Wheelbase(mm)
|
|
1965
|
||
|
Track(mm)
|
Front wheel(mm)
|
1150
|
||
|
|
Rear wheel(mm)
|
1200-1360
|
||
|
Ground clearance(mm)
|
Minimum ground clearance(mm)
|
330
|
||
|
Minimum turning cricle radius
|
Use unilateral braking
|
2.85±0.20
|
||
|
|
Not unilateral braking
|
3.15±0.30
|
||
|
Minimum use quality
|
|
1660
|
||
|
Gearbox
|
8F+2R Shuttle Shift
|
|
||
|
Steering System
|
hydraulic steering gear
|
|
||
|
Drive Train
|
Clutch
|
singal clutch
|
||
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
≥10
|
||
|
|
Suspension mechanism
|
Three-piont suspension type 1
|
||
|
PTO shaft
|
PTO Spedd(r/min)
|
540/760
|
||
|
Tire
|
Front wheel specifications
|
6.5-16
|
||
|
|
Rear wheel specifications
|
11.2-24
|
||
|
Engine
|
Type
|
Inline, 4 stroke, Water cooled
|
||
|
|
Cylinder
|
4
|
||
|
Optional
|
Cabin
|
AC/Heater
|
||
|
|
Roll bar
|
|
||
|
|
Canopy
|
|
||
|
Perfusion volume
|
Radiater(L)
|
10
|
||
|
|
Fuel tank(L)
|
60
|
||
|
|
Engine oil pan(L)
|
5
|
||
|
|
Driveline oil (L)
|
20
|
||
|
|
Lifter(L)
|
9.5
|
||
|
This parameter table is for reference only, everything is based on actual products
|
|
|
||
Customer Photos
Project in Australia
Project in Bulgaria
Project in Bosnia and Herzegovina
Project in Germany
Project in France
Project in the Philippines
Project in Colombia
Project in Ghana
Project in Mongolia
Packing & Delivery
We can use 20GP, 40HC containers for transportation, or we can use iron frames and wooden boxes to pack and then carry out LCL
transportation.
