Quick Details
-
Insulation Material:
-
silicone rubber
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
triumph flexible silicone wire
-
Model Number:
-
flexible silicone wire
-
conductor type:
-
stranded copper
-
insulate:
-
silicone rubber
-
rating temperature:
-
-60~200°C
-
colors:
-
red,black,blue,yellow,white...
-
size range:
-
30~6AWG
-
unit length:
-
100m,200m,300m per roll
-
overall diameter range:
-
0.950~12.5mm
-
Product name:
-
Heat-resistant silicone wire 5 7 9 11 13 15 17 19 AWG inventory
Quick Details
-
Application:
-
RC model,auto ,lighting...
-
Conductor Material:
-
tinned copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
silicone rubber
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
triumph flexible silicone wire
-
Model Number:
-
flexible silicone wire
-
conductor type:
-
stranded copper
-
insulate:
-
silicone rubber
-
rating temperature:
-
-60~200°C
-
colors:
-
red,black,blue,yellow,white...
-
size range:
-
30~6AWG
-
unit length:
-
100m,200m,300m per roll
-
overall diameter range:
-
0.950~12.5mm
-
Product name:
-
Heat-resistant silicone wire 5 7 9 11 13 15 17 19 AWG inventory

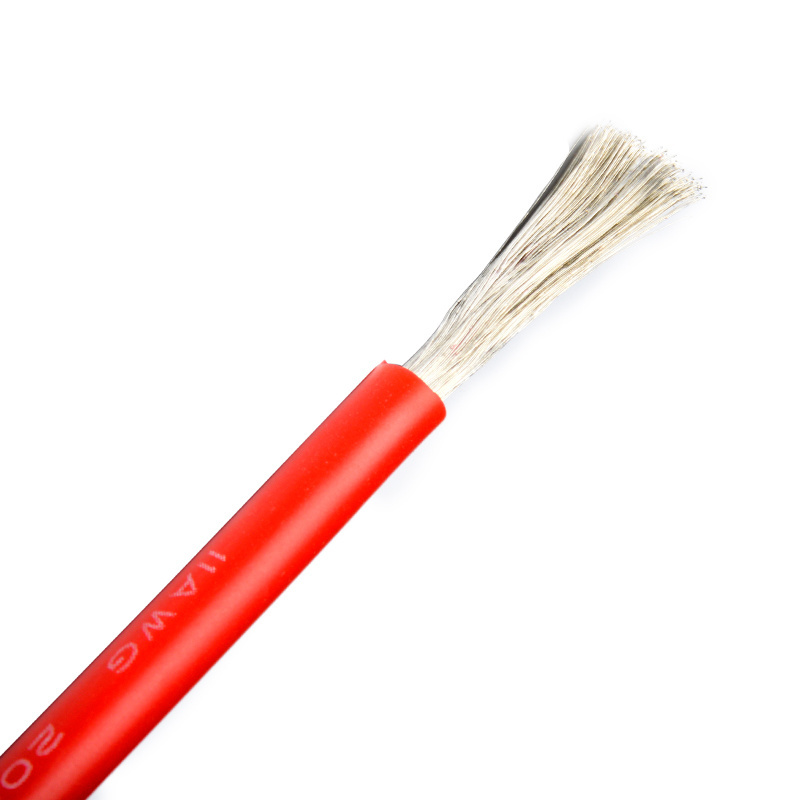

Heat-resistant silicone wire 5 7 9 11 13 15 17 19 AWG high temperature 200 C cold resistance -60 C inventory Cable silicone rubber,high temperature silicone wire, high voltage silicone wire , high temperature high voltage silicone wire
Construction:
| conductor | Insulator | Packing | |||
| 600V | |||||
| AWG | Conductor construction No.xΦmm | Diameter mm | Insulator Thick mm | Over Diameter mm | m/roll |
| 30 | 11/0.08 | 0.30 | 0.35 | 1.00 | 300.0 |
| 28 | 16/0.08 | 0.36 | 0.55 | 1.30 | 300.0 |
| 26 | 30/0.08 | 0.46 | 0.55 | 1.40 | 300.0 |
| 24 | 40/0.08 | 0.61 | 0.55 | 1.50 | 300.0 |
| 22 | 60/0.08 | 0.78 | 0.55 | 1.70 | 300.0 |
| 20 | 100/0.08 | 0.92 | 0.55 | 1.80 | 300.0 |
| 19 | 120/0.08 | 1.01 | 0.49 | 2.0 | 300.0 |
| 18 | 150/0.08 | 1.19 | 0.55 | 2.30 | 200.0 |
| 17 | 210/0.08 | 1.33 | 0.68 | 2.7 | 200.0 |
| 16 | 252/0.08 | 1.53 | 0.80 | 3.00 | 200.0 |
| 15 | 300/0.08 | 1.6 | 0.80 | 3.2 | 200.0 |
| 14 | 400/0.08 | 1.78 | 0.90 | 3.50 | 200.0 |
| 13 | 500/0.08 | 2.06 | 0.86 | 3.8 | 200.0 |
| 12 | 680/0.08 | 2.48 | 1.00 | 4.50 | 200.0 |
| 11 | 750/0.08 | 2.53 | 1.23 | 5.0 | 100.0 |
| 10 | 1050/0.08 | 3.06 | 1.25 | 5.50 | 100.0 |
| 9 | 1300/0.08 | 3.33 | 1.18 | 5.7 | 100.0 |
| 8 | 1650/0.08 | 3.75 | 1.25 | 6.30 | 100.0 |
| 7 | 2100/0.08 | 4.23 | 1.63 | 7.5 | 100.0 |
| 6 | 3200/0.08 | 5.9 | 1.73 | 8.50 | 100.0 |
| 5 | 3400/0.08 | 5.38 | 1.66 | 8.7 | 100.0 |
| 4 | 4300/0.08 | 6.9 | 1.0 | 9.0 | 100.0 |
| 2 | 6700/0.08 | 9.8 | 1.2 | 12.5 | 100.0 |
- 100 ft. 2~30 gauge super-flexible silicone wire
- Highly stranded tinned copper with superior conductivity
- Durable, extremely flexible silicone jacket
-
Also available in gauges 2, 4,6, 8, 12, 14, 16, 18, 20, 22, 24,26,28,30 .
- Also available in gauges 5,7,9,11,13,15,17,19
Our super-flexible silicone wire has virtually an unlimited number of uses! It's perfect for all kinds of DIY electrical and hobby projects! Featuring a durable silicone jacket, this highly stranded tinned copper wire is a great alternative to more rigid PVC coated wire, and it is completely (2002/95) compliant.
Specifications:10aw g example
- Max current: 140A
- Conductor area: 5.3mm
- Stranding: #1050/0.08mm
- Temperature: -60°C to +200°C
- Outer diameter: 5.5mm
Lead time:
Different type will be required for different
1, Samples within 1~2 days
2,Products in stock:1~3 days
3,Order for production 3~7 days
4,Customize products :8~15 days
Workshop:
Warehouse:
QC Testing:
International Cooperation:
Triumphcable since its inception, invest a lot of mmoney each year to promote international cooperation, with multinational partners to visit the factory,including: America,Japan,Pakistan,Iran,Canada,USA and Venezuela Rena etc.
May be you are the next one? Welcome to Triumph cable factory.
Enterprise Exhibition:
Our certification:
We have the UL certificate wires series as follow:
E249743: 1007;1015;1028;1095;1283;1533;1571;1617;1061;1185;1347;1569;1581;1672.
2096;2547;2725;2835;2919;2992;20288;2097;2549;2726;2851;2935;2993;2464;
2562;2733;2854;2990;2994;2468;2571;2833;2877;2991;20276;
E347603: 1330;1331;1332;1333;1430;3122;3135;3239;3271;3385;3132;3173;3266;3321;3386
E249745: SPT-1;SPT-2;SPT-3.
