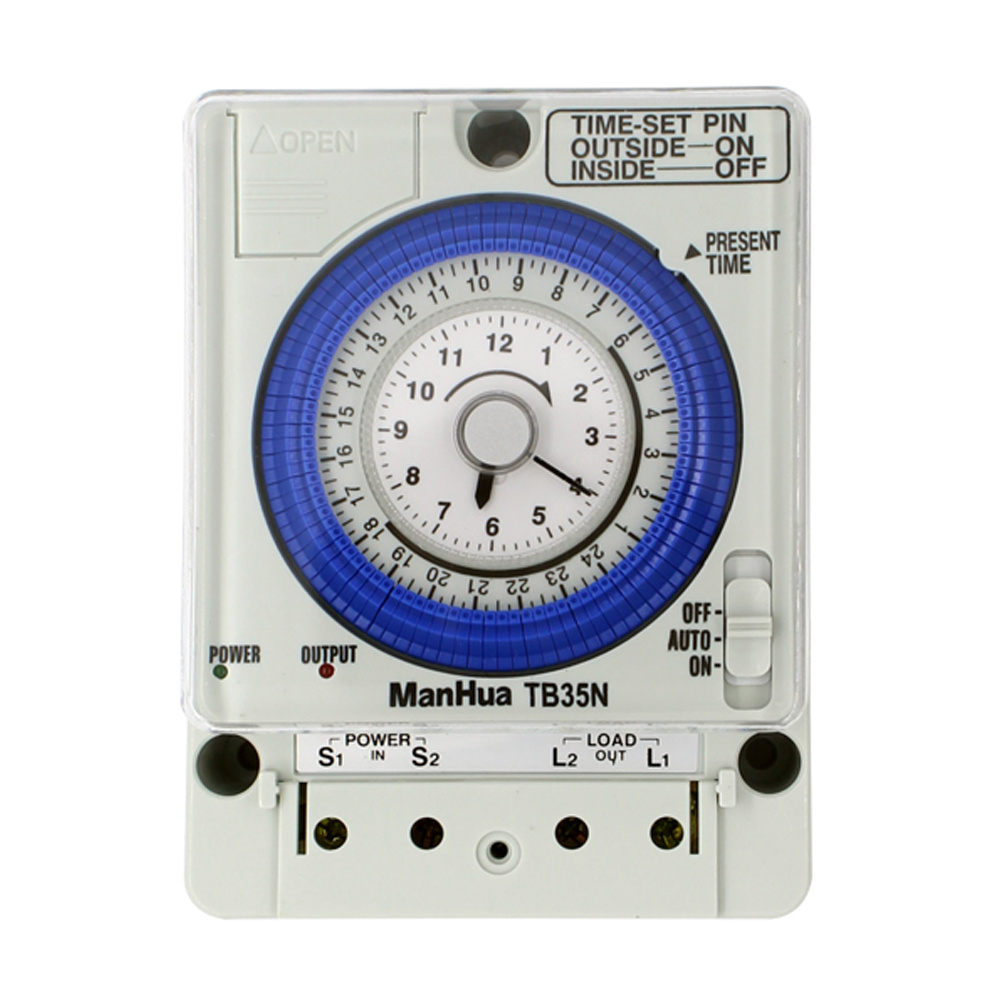

Quick Details
-
Model Number:
-
TB35-N
-
Max. Current:
-
10A
-
Contact Capacity:
-
60VDC,10A
-
Timing Range:
-
24h
-
Electrical Life:
-
1 000 000 times
-
Mechanical Life:
-
100 000 000 times
-
Operation Temperature:
-
-40℃ ~+55℃
-
Storage Battery:
-
100h
-
Min Setting Unit:
-
15 minutes
-
Set Up Times:
-
15m/per time 96 times
-
Certificates:
-
CE
-
Warranty:
-
12 Months
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
60VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Manhua
-
Model Number:
-
TB35-N
-
Max. Current:
-
10A
-
Contact Capacity:
-
60VDC,10A
-
Timing Range:
-
24h
-
Electrical Life:
-
1 000 000 times
-
Mechanical Life:
-
100 000 000 times
-
Operation Temperature:
-
-40℃ ~+55℃
-
Storage Battery:
-
100h
-
Min Setting Unit:
-
15 minutes
-
Set Up Times:
-
15m/per time 96 times
-
Certificates:
-
CE
-
Warranty:
-
12 Months
-
Certification:
-
CE
Product Description
Dimension &Wiring Drawing(mm):
| SPECIFICATION | |||
| Operation power voltage | 100-240VAC | ||
| Allowable operating Voltage | 85-264V AC | ||
| Power Source Frequency | 50Hz/60Hz common use | ||
| Driving Method | Quarts Motor | ||
| Power Failure Compensation | 100 hours | ||
| Time precision | Within±15 seconds permonth (attemperature25°C) | ||
| Program Cycle | 24hours | ||
| Consumption Power | 110V AC 1W • 220V AC 2W | ||
| OUTPUT | Circuit Quantity | 1 circuit | |
| Circuit Contiguration | Same Circuit(voltage-applied contact ouptut) | ||
| Contact Configuration | Single Pole.Single-through | ||
| Manual ON/OFF | With ON/AUTO/OFF Switch | ||
|
Contact Capacity |
Resistance | 15A | |
| Incandes cent Lamp | 10A | ||
| lnduction(cosφ=0.7) | 12A | ||
| Motor(cos 0=0.7) | 110V AC 750W • 220V AC 1500W | ||
|
Operetion time setting |
Method | Setting Tip all built-in | |
| Minimum Unit | 15minutes | ||
| Minimum Interval | 15minutes | ||
| Number of operations | 96as standard | ||
| Working Ambient Temperature | 10℃-50℃ | ||
| Working Ambient Humidity | 85% or less | ||
| Mass | 250g | ||
If you are interested in our products , please feel free to contact with us ,we will try our best to meet your demand.
