Quick Details
-
Brand Name:
-
LASER TREE
-
Weight (KG):
-
0.23 KG
-
Optical Power:
-
5W (±1W)
-
Wavelength:
-
450nm (±10nm)
-
Focus Length:
-
23mm
-
Input:
-
12V 1.5-2A
-
PWM Modulation:
-
0/3~12V, 0~5kHz
-
Interface:
-
XH2.54-3P Socket
-
Material:
-
Aluminum Alloy
-
Operating Temperature:
-
0~60℃
-
FAC Function:
-
Yes
-
Air Assist Support:
-
No
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser Engraving Cutting Module
-
Marketing Type:
-
Hot Product 2022
-
Brand Name:
-
LASER TREE
-
Weight (KG):
-
0.23 KG
-
Optical Power:
-
5W (±1W)
-
Wavelength:
-
450nm (±10nm)
-
Focus Length:
-
23mm
-
Input:
-
12V 1.5-2A
-
PWM Modulation:
-
0/3~12V, 0~5kHz
-
Interface:
-
XH2.54-3P Socket
-
Material:
-
Aluminum Alloy
-
Operating Temperature:
-
0~60℃
-
FAC Function:
-
Yes
-
Air Assist Support:
-
No
Recommend Products
Parameters
|
Product Name
|
Laser Engraving&Cutting Module
|
|
|
|
|||
|
Brand
|
LASER TREE
|
|
|
|
|||
|
Optical Power
|
5W (±1W)
|
|
|
|
|||
|
Input
|
12V 1.5-2A
|
|
|
|
|||
|
Wavelength
|
450nm (±10nm)
|
|
|
|
|||
|
Focus Length
|
23mm
|
|
|
|
|||
|
PWM Modulation
|
0/3~12V, 0~5kHz
|
|
|
|
|||
|
Fan Speed
|
10000rpm
|
|
|
|
|||
|
Operating Temperature
|
0~60℃
|
|
|
|
|||
|
Interface
|
XH2.54-3P Socket
|
|
|
|
|||
|
Cable
|
3PIN, 80cm
|
|
|
|
|||
|
Material
|
Aluminum Alloy
|
|
|
|
|||
|
Module Size
|
40*40*122mm
|
|
|
|
|||
|
Module Weight
|
230g
|
|
|
|
|||
|
Application
|
Engraving or Cutting
|
|
|
|
|||
|
With FAC or not
|
With FAC
|
|
|
|
|||
|
Air Assist Function Support
|
No
|
|
|
|
|||
Main Features
1. Engraved mirror stainless steel, no need to paint black.

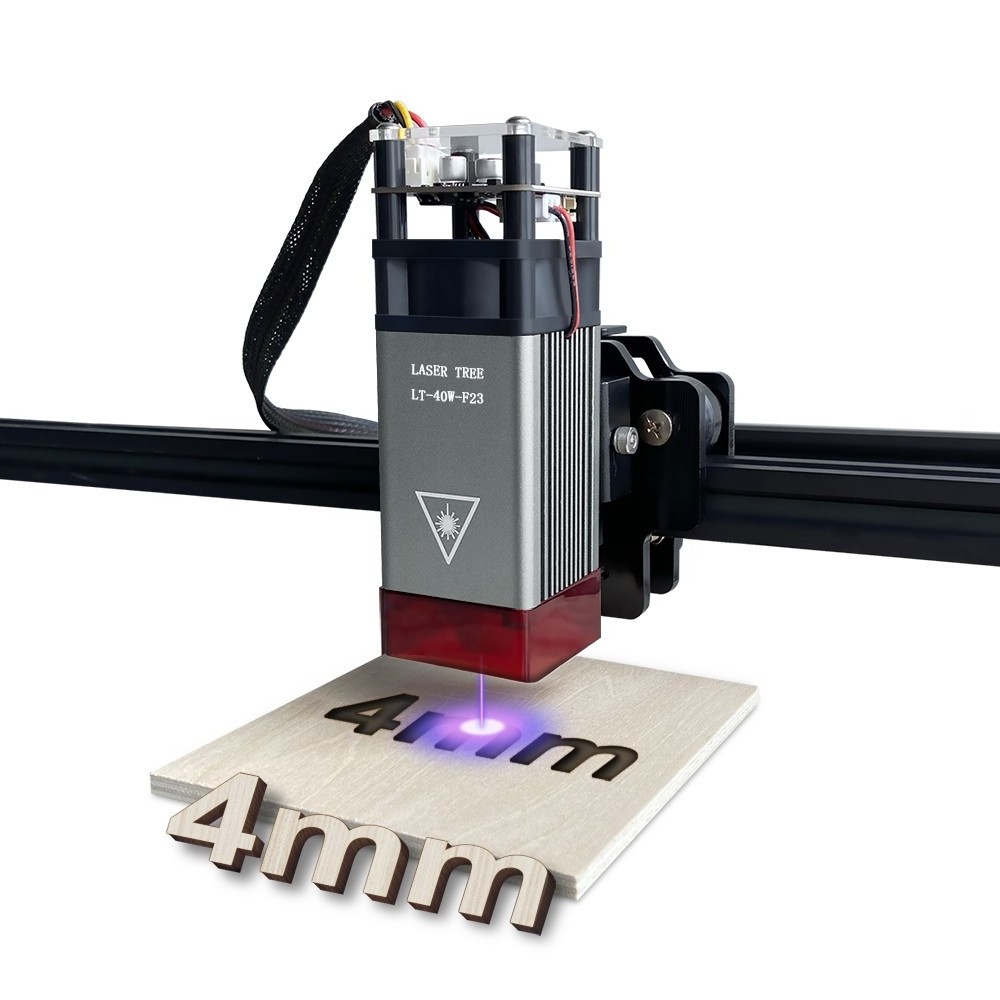

2. Excellent Cutting Ability: Cutting 4mm thickness plywood by one pass at a Speed of 80-100mm/min.
3. Super fast engraving speed: 304 stainless steel, up to 800mm/min, focal length 23mm.
4. Long life time design: The protective window piece design keeps the lens away from smoking and extends the life of the laser head.
5. Widely engraving and cutting material:
Engraving materials:
Cardboard, Plastic, Leather, MDF, Rubber, Stainless Steel, Aluminum with oxide layer, etc.
Cutting materials:
Wood, Black Acrylic, Acrylic, Cardboard, Non-woven, Bamboo, Laser safe plastic, etc.
6. Widely compatibility: Compatible with most of laser engraving & cutting machines.
2. Excellent Cutting Ability: Cutting 4mm thickness plywood by one pass at a Speed of 80-100mm/min.
3. Super fast engraving speed: 304 stainless steel, up to 800mm/min, focal length 23mm.
4. Long life time design: The protective window piece design keeps the lens away from smoking and extends the life of the laser head.
5. Widely engraving and cutting material:
Engraving materials:
Cardboard, Plastic, Leather, MDF, Rubber, Stainless Steel, Aluminum with oxide layer, etc.
Cutting materials:
Wood, Black Acrylic, Acrylic, Cardboard, Non-woven, Bamboo, Laser safe plastic, etc.
6. Widely compatibility: Compatible with most of laser engraving & cutting machines.
7.
With comprehensive functions and high cost performance, it is the best choice for beginners.
