Medical equipment,industrial equipment,smart home,power tools,robots,transportation and materials moving work, etc.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
T-DA
-
Model Number:
-
5840K732-31ZY
-
Torque:
-
1-150NM
Quick Details
-
Speed(RPM):
-
5~1500rpm
-
Continuous Current(A):
-
1.2(A)
-
Efficiency:
-
IE 1
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
T-DA
-
Model Number:
-
5840K732-31ZY
-
Torque:
-
1-150NM

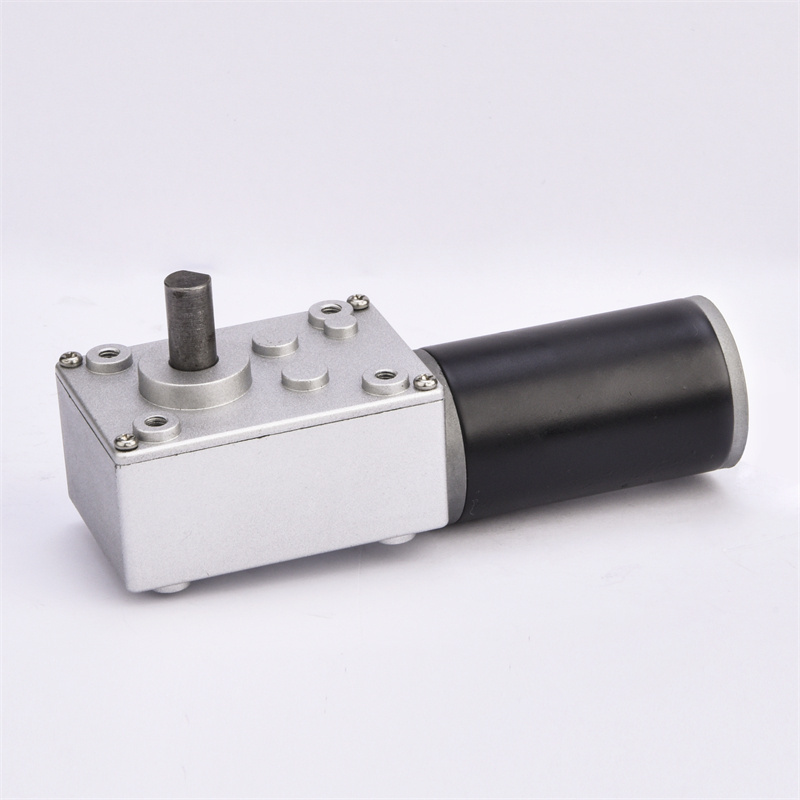

Details Images
5840K69-R555
Technical Specifications
|
Type
|
5840K732-31ZY
|
|
Rated voltage (VDC)
|
24
|
|
No-load current (A)
|
0.3
|
|
No-load speed (r/min)
|
8
|
|
Rated current (A)
|
1
|
|
Rated speed (r/min)
|
5
|
|
Rated torque (N.m)
|
7
|
|
Output power (W)
|
3.66
|
Note:
The technical specifications just for reference, detailed configuration can according to customer requirements, such as reduction ratio, motor specifications(customer specified or recommend by us),shaft specifications(circular,single flat position,double flat position,slot,screw thread, etc), all can be customized.
Gearbox specifications
|
Number of gear trains
|
Reduction ratio
|
Processing technology of gears
|
Processing technology of gears
|
|
3
|
35/69107/125/213/251
|
CNC
|
Hobbing
|
|
4
|
264/293/326/366/407/456/515/ 582/652/732/815/913/1031/1164
|
CNC
|
Hobbing
|
Note: The box for zinc alloy die casting molding, the gear is processing by hobbing, no powder metallurgy, high strength, high efficiency, long service life.
Dimensions
Note: The dimensions just for reference. all the specifications can be customized.
What can we do for you?
We Are Supplying FOUR Categories of Gear Motors:
1.DC spur gear motors
2.DC planetary gear motors
3.DC flat gear motors
4.DC worm gear motors
