Quick Details
-

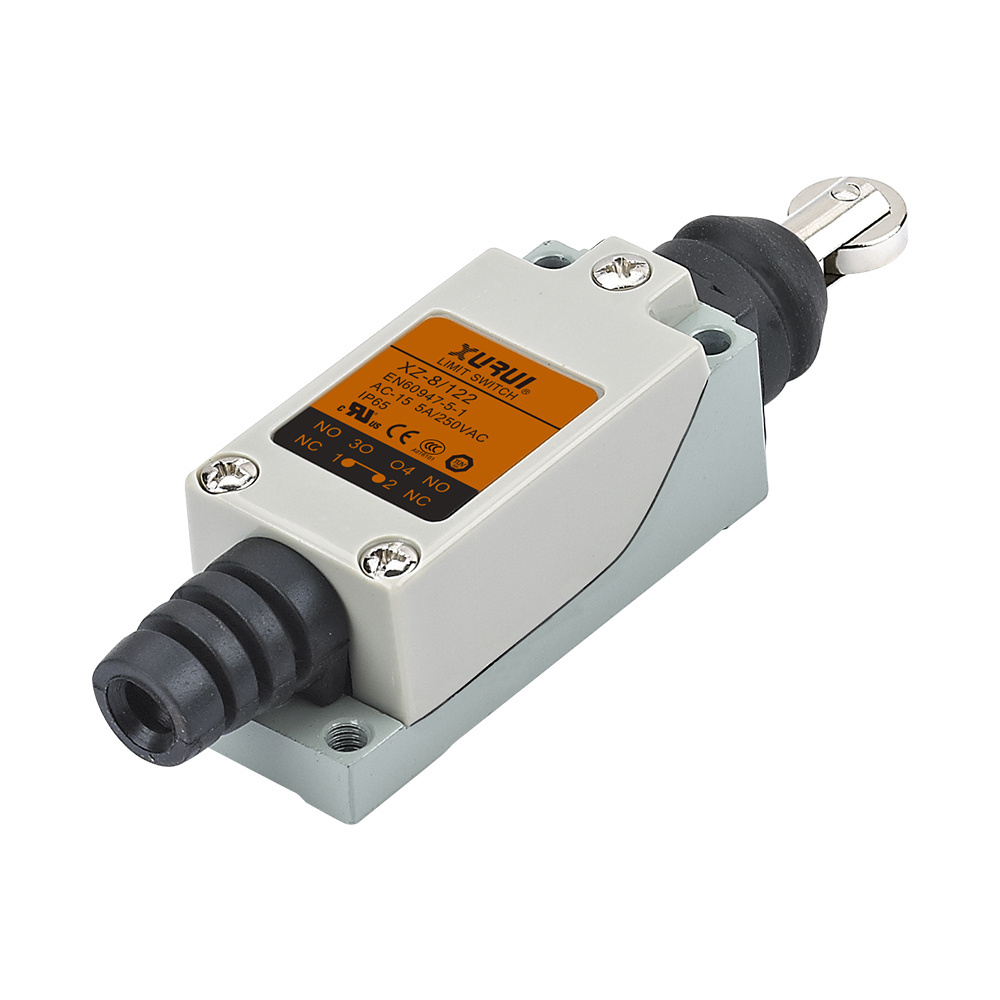

Model Number:
-
XZ-8/122,XZ-8/112
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20-60 degree
-
Max. Current:
-
5A
-
Materials Body:
-
zinc meal alloy
-
Drive Shaft Type:
-
variety of levers
-
Mechanical Life:
-
1,000,000times above
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ-8/122,XZ-8/112
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20-60 degree
-
Max. Current:
-
5A
-
Materials Body:
-
zinc meal alloy
-
Drive Shaft Type:
-
variety of levers
-
Mechanical Life:
-
1,000,000times above
- Strong Structure, made of zinc metal alloy and plastics, easy to contact line ;
- Small size, water and oil resistant;
- Double way switch, double spring inner switch;
- Variety of levers;
- Widely used in mechanical equipment, automatic machine, instrument, electro motion tool etc.
Click here for one-to-one information docking
| Item | Data | |
| Rating load | 5A/250VAC | |
| Operating speed | 5mm-50cm/s | |
| Operation frequency | Mechanical | 120 times/min |
| Electrical | 30 times/min | |
| Insulation resistance | 100mΩ (above) DC500V | |
| Contact resistance | 25mΩ (initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s² |
| Misoperation | 300m/s² | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection degree | IP65 | |
| Operating temperature | -10~+70℃ | |
| Operating humidity | <85℃ | |
| Models | XZ-8/122, XZ-8/122 |
| OF max. | 1100g(10.78N) |
| PF min. | 250g(2.45N) |
| PT max. | 2mm |
| OT min. | 0.6mm |
| MD max. | 1mm |
|
OP |
37±0.8mm |
| TT | ⁄ |
Our Service
We could supply the above size of micro switch,and also could design the micro switch according to your detailed demands.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 7*24 provides product use consultation
* We offer replacement if you receive defective or wrong items in 12 months from the shipping date
- Supplied directly from factory with more than 16 years experience.
- New packing design and new product research development.
- Accept to customize products up to specification.
- Small order welcome.
- Payment by Paypal, Western Union is supported.
- Provide prompt service and after-sale service.
Zhejiang Xurui Electronic Co., Ltd , established in 2002, is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Main markets: Europe, America, Australia, Asia, Middle East and so on.
Q: How do you control the products' quality?
A: 100% auto inspection machine and manual test together before packing.
Q: Would you accept to use our logo?
A: If you have good quantity, we would like to do OEM and ODM, customized specification.
Q: Can I get a sample for reference?
A: We are glad to send the samples for testing. Samples are free, but you may need to pay the express cost.
Q: What's your delivery time?
A: Normally it takes 15-20 working days for production. If we get stock, it only takes two days.
