Quick Details
-
D/C:
-
NA
-
Application:
-
LASER SHOW, Show laser
-
Max. Forward Voltage:
-
4.6V
-
Max. Reverse Voltage:
-
standard
-
Max. Forward Current:
-
1.6A
-
Max. Reverse Current:
-
85mA
-
Diode Type:
-
Semiconductor
-
Technology:
-
NA
-
Voltage - Peak Reverse (Max):
-
NA
-
Current - Average Rectified (Io):
-
NA
-
Voltage - Forward (Vf) (Max) @ If:
-
NA
-
Current - Reverse Leakage @ Vr:
-
NA
-
Operating Temperature:
-
NA
-
Mounting Type:
-
NA
-
Package / Case:
-
TO5
-
Diode Configuration:
-
NA
-
Voltage - DC Reverse (Vr) (Max):
-
NA
-
Current - Average Rectified (Io) (per Diode):
-
NA
-
Reverse Recovery Time (trr):
-
NA
-
Capacitance @ Vr, F:
-
NA
-
Current - Max:
-
1.6A
-
Resistance @ If, F:
-
NA
-
Power Dissipation (Max):
-
NA
-
Capacitance Ratio:
-
NA
-
Capacitance Ratio Condition:
-
NA
-
Q @ Vr, F:
-
NA
-
Configuration:
-
NA
-
Voltage - Zener (Nom) (Vz):
-
NA
-
Tolerance:
-
NA
-
Impedance (Max) (Zzt):
-
NA
-
Color:
-
Green light
-
Diameter:
-
9mm
-
Wavelength:
-
510nm ~ 525nm
-
Power:
-
1w
-
Operating Case Temperature:
-
0 to 50 degree
-
Storage Temperature:
-
-40 to 85 degree
-
Perpendicular Beam Divergence Full angle:
-
35 46 55 degree
-
Parallel Beam Divergence Full Angle:
-
5 11 25 degree .
-
Working current:
-
1.6A
-
Description:
-
Laser diode
Quick Details
-
Model Number:
-
JLD5210ZA
-
Brand Name:
-
Lanji
-
Place of Origin:
-
Guangdong, China
-
D/C:
-
NA
-
Application:
-
LASER SHOW, Show laser
-
Max. Forward Voltage:
-
4.6V
-
Max. Reverse Voltage:
-
standard
-
Max. Forward Current:
-
1.6A
-
Max. Reverse Current:
-
85mA
-
Diode Type:
-
Semiconductor
-
Technology:
-
NA
-
Voltage - Peak Reverse (Max):
-
NA
-
Current - Average Rectified (Io):
-
NA
-
Voltage - Forward (Vf) (Max) @ If:
-
NA
-
Current - Reverse Leakage @ Vr:
-
NA
-
Operating Temperature:
-
NA
-
Mounting Type:
-
NA
-
Package / Case:
-
TO5
-
Diode Configuration:
-
NA
-
Voltage - DC Reverse (Vr) (Max):
-
NA
-
Current - Average Rectified (Io) (per Diode):
-
NA
-
Reverse Recovery Time (trr):
-
NA
-
Capacitance @ Vr, F:
-
NA
-
Current - Max:
-
1.6A
-
Resistance @ If, F:
-
NA
-
Power Dissipation (Max):
-
NA
-
Capacitance Ratio:
-
NA
-
Capacitance Ratio Condition:
-
NA
-
Q @ Vr, F:
-
NA
-
Configuration:
-
NA
-
Voltage - Zener (Nom) (Vz):
-
NA
-
Tolerance:
-
NA
-
Impedance (Max) (Zzt):
-
NA
-
Color:
-
Green light
-
Diameter:
-
9mm
-
Wavelength:
-
510nm ~ 525nm
-
Power:
-
1w
-
Operating Case Temperature:
-
0 to 50 degree
-
Storage Temperature:
-
-40 to 85 degree
-
Perpendicular Beam Divergence Full angle:
-
35 46 55 degree
-
Parallel Beam Divergence Full Angle:
-
5 11 25 degree .
-
Working current:
-
1.6A
-
Description:
-
Laser diode
Features:
1. Visible light output : 520nm Typ
2. Optical output power : 1000mW CW
3. TO5 package: 9mm diameter

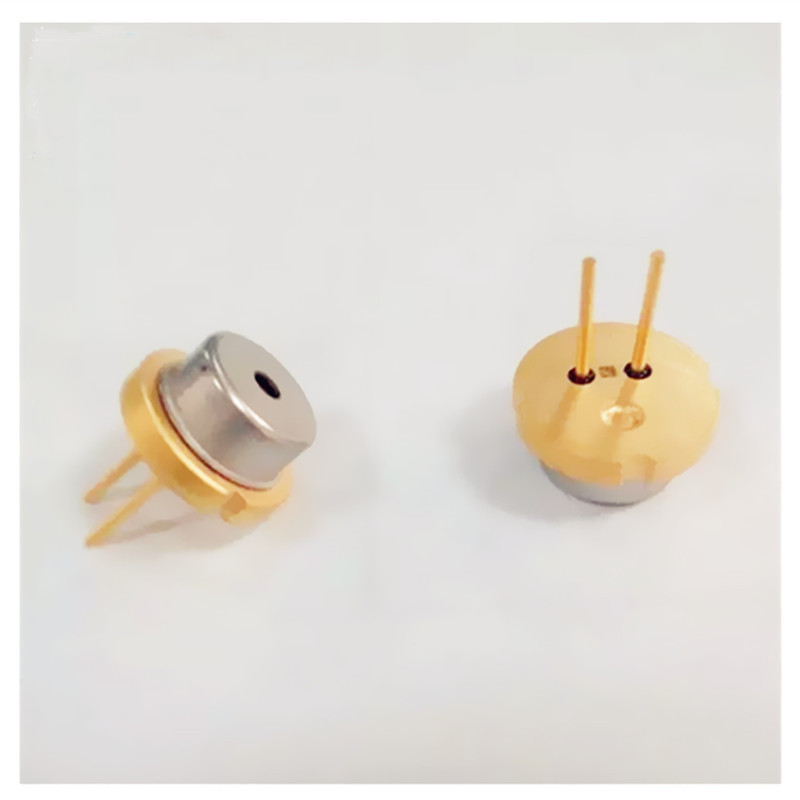

China Wholesale Nichia Original NDG7575 520nm Green Laser Diode 1w
China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
|
Absolute Maximum Ratings (Tc=25°C) |
|||
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current |
If |
1.8 |
A |
|
Allowable Reverse Current |
Ir (LD) |
85 |
mA |
|
Operating Case Temperature |
Tc |
0 to 50 |
°C |
|
Storage Temperature |
Tstg |
-40 to 85 |
°C |
China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
1. Multi Transverse Mode laser diode.
2. Can Type: φ 9.0 mm Floating Mounted with Protection device.
3. Salable Nichia high quality 520nm 1w laser diode NDG7575.
4. Package details : Plastic box package, it depends on different kinds of laser diodes with different sizes. China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
n Laser Diode 1w
Shipping Details:
- 1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
- And it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
China Wholesale Nichia Original NDG7K75 520nm Green Laser Diode 1w
