Quick Details
-
Place of Origin:
-
SHN
-
Machine Weight:
-
630 kg
-
Bucket capacity:
-
300kg
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
Other
-
Brand Name:
-
RIMA
-
Place of Origin:
-
SHN
-
Machine Weight:
-
630 kg
-
Bucket capacity:
-
300kg
Product Description
|
Model
|
RS300/1
|
RS300/2
|
|
Engine displacement
|
420cc
|
420cc
|
|
Engine rated speed
|
3000rpm
|
3000rpm
|
|
Effluent standard
|
EURO 5/ EPA
|
EURO 5/ EPA
|
|
Rated loading capacity
|
200kg
|
200kg
|
|
Max. lifting force
|
300kg
|
300kg
|
|
Max. excavation force
|
350KN
|
350KN
|
|
Drive speed
|
0-6km/h
|
0-6km/h
|
|
Working pressure
|
17-21Mpa
|
17-21Mpa
|
|
Fuel tank volume
|
5L
|
5L
|
|
Lifting time
|
4.3s
|
4.3s
|
|
Fall time
|
3.3s
|
3.3s
|
|
Tipping time
|
1.5s
|
1.5s
|
|
Track size
|
150*36*72
|
20*10*10
|
|
Operating weight
|
900kg
|
900kg
|
|
Bucket capacity
|
0.06m³
|
0.06m³
|
|
Max. operating height
|
2490mm
|
2490mm
|
|
Height to bucket hinge pin
|
1670mm
|
1670mm
|
|
Height to top
|
1320mm
|
1390mm
|
|
Overall length with GP bucket
|
2160mm
|
2160mm
|
|
Overall length without bucket
|
1540mm
|
1540mm
|
|
Unloading height
|
1564mm
|
1564mm
|
|
Unloading distance
|
446mm
|
446mm
|
|
Max. height unloading angle
|
139°
|
139°
|
|
Turning angle of the bucket on the ground
|
25°
|
25°
|
|
Bucket flip angle at maximum
|
115°
|
115°
|
|
Weight
|
630kg
|
630kg
|
|
40”container
|
26pcs
|
26pcs
|

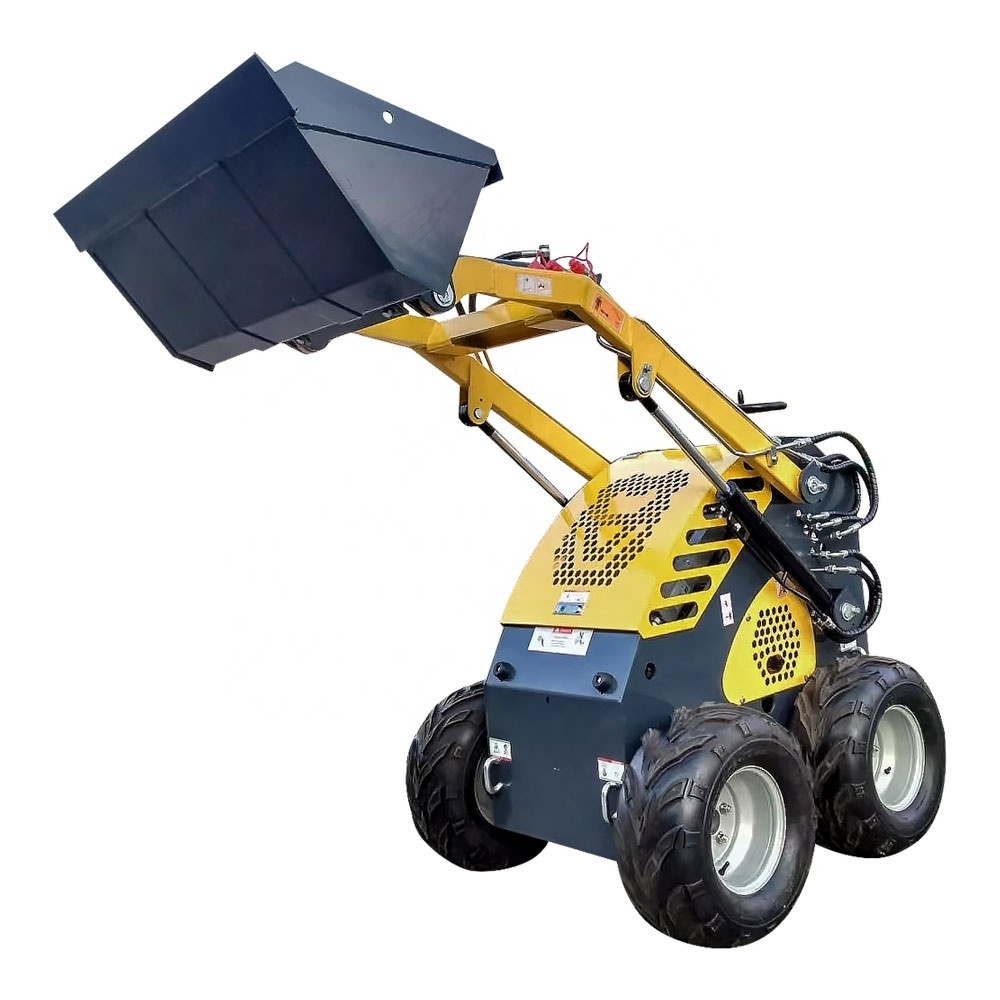

Products Show
