- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤0.1%
-
Voltage:
-
380V or customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BAIJI
-
Dimension(L*W*H):
-
According to machine model
-
Weight:
-
3500 KG
-
Beverage:
-
pure water / mineral water
-
Bottle type:
-
PET plastic bottle
-
Suitable bottle size:
-
200ml - 2000ml
-
Cap type:
-
plastic screw cap
-
Filling way:
-
gravity filling
-
Main machine:
-
3 in 1 washing filling capping
-
Water treatment plant:
-
RO reverse osmosis, hollow ultrafiltration
-
Bottle labeling:
-
shrink sleeve labeling machine
-
Finished bottle packaging:
-
PE film wrapping machine
-
Name:
-
mineral water filling machine price / drinking water making machine
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 10000BPH, 15000BPH, 24000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
≤0.1%
-
Voltage:
-
380V or customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BAIJI
-
Dimension(L*W*H):
-
According to machine model
-
Weight:
-
3500 KG
-
Beverage:
-
pure water / mineral water
-
Bottle type:
-
PET plastic bottle
-
Suitable bottle size:
-
200ml - 2000ml
-
Cap type:
-
plastic screw cap
-
Filling way:
-
gravity filling
-
Main machine:
-
3 in 1 washing filling capping
-
Water treatment plant:
-
RO reverse osmosis, hollow ultrafiltration
-
Bottle labeling:
-
shrink sleeve labeling machine
-
Finished bottle packaging:
-
PE film wrapping machine
-
Name:
-
mineral water filling machine price / drinking water making machine
Product Description
Automatic bottled drinking water making equipment / pure water bottling machine / mineral water filling plant price
It is mainly used for the filling of pure water, mineral water and other non-gas and sugar-free beverages in bottles. It is an integrated equipment for washing, filling and capping.
It adopts hanging type air conveyor to make change bottle model more convenient, faster and cleaner. The main machine adopts advanced PLC control technology, the key electric elements adopt international famous products or according to customer’s customized.
Detailed Images
Water treatment system
Raw water tank + Raw water pump
Quartz sand filter + Active carbon filter + Sodium ion exchanger + Precision filter
RO Reverse Osmosis ( one stage )
UV sterilizer / ozone generator
Finished water tank + Pure water pump

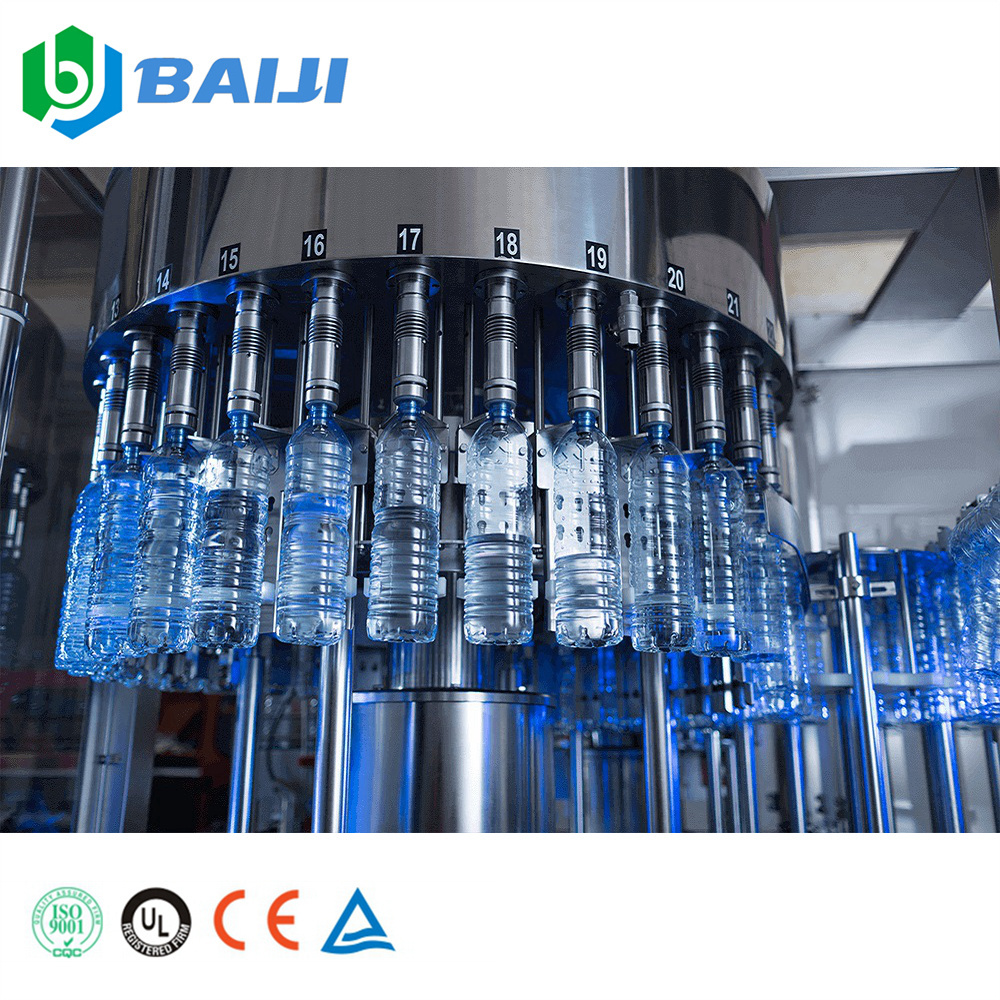

Automatic Water Bottle Washing Filling Capping 3 in 1 Machine
( Monoblock Type )
It can work for different size bottle from 200ml to 2000ml, but do make sure the same cap.
Actually, we can provide different models filling unit according to your speed needs. Min. 2000-3000bph, Max. 24000bph.
|
Technical parameter
|
|
|
|
|
|
|||||
|
Model
|
CGF8-8-3
|
CGF14-12-5
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-8
|
|||||
|
Capacity(for 500ml)
|
2000
|
3000-4000
|
4000-6000
|
8000-10000
|
10000-12000
|
|||||
|
Suitable bottle shapes
|
PET bottle
|
|
|
|
|
|||||
|
Bottle diameter(mm)
|
Dia50-Dia115mm
|
|
|
|
|
|||||
|
Bottle height (mm)
|
160-320mm
|
|
|
|
|
|||||
|
Compressor air
|
0.3-0.7Mpa
|
|
|
|
|
|||||
|
Washing meidium
|
Aseptic water
|
|
|
|
|
|||||
|
Rinsing pressure
|
>0.06Mpa <0.2Mpa
|
|
|
|
|
|||||
|
Application
|
pure water, mineral water, spring water, still water
|
|
|
|
|
|||||
Automatic shrink sleeve labeling machine
It consists of auto labeling machine, heat shrink tunnel and steam generator.
This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.
Automatic PE film wrapping machine
To pack several bottles into one package, make it easier for delivery.
You can decide 24 bottles one package, 12 bottles one package, etc. It is changeable.
Our Advantages
Related Products
Our Company
Zhangjiagang Baiji Machinery Co., Ltd.
is a professional manufacturer of beverage machinery in China. Our main products have: water filling production line, juice filling production line, carbonated drink filling production line, beer, cooking oil, wine, sauce filling production line, and all other auxiliary equipment. The liquid can be PET bottled, glass bottled, aluminum canned, 5 gallon barreled and so on.
We are not only a manufacturer of mechanical equipment, but also can provide you with plant design, equipment layout, waterway, circuit and airway layout, etc. Our task is to ensure the smooth production of your factories and help you win your markets.
