Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
POE31004P
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC part 15, FCC Class A, CE, RoHS
-
Product Name:
-
4 port PoE Switch with 4 PoE Ports and 1 rj45 uplink port
-
Model:
-
POE31004P
-
Bandwidth:
-
1.6Gbps
-
PoE Standard:
-
IEEE802.3af
-
Network Media:
-
100BASE-TX: Cat5 or more UTP (≤100 meter)
-
Power Supply:
-
Built-in Power (Input:AC100-240V 50/60Hz, Output:52V/5A)
-
Product Size:
-
185X113X36MM,0.38kg
-
Warranty:
-
1 Year
-
OEM:
-
Welcome
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6G
-
Brand Name:
-
ONV
-
Model Number:
-
POE31004P
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC part 15, FCC Class A, CE, RoHS
-
Product Name:
-
4 port PoE Switch with 4 PoE Ports and 1 rj45 uplink port
-
Model:
-
POE31004P
-
Bandwidth:
-
1.6Gbps
-
PoE Standard:
-
IEEE802.3af
-
Network Media:
-
100BASE-TX: Cat5 or more UTP (≤100 meter)
-
Power Supply:
-
Built-in Power (Input:AC100-240V 50/60Hz, Output:52V/5A)
-
Product Size:
-
185X113X36MM,0.38kg
-
Warranty:
-
1 Year
-
OEM:
-
Welcome

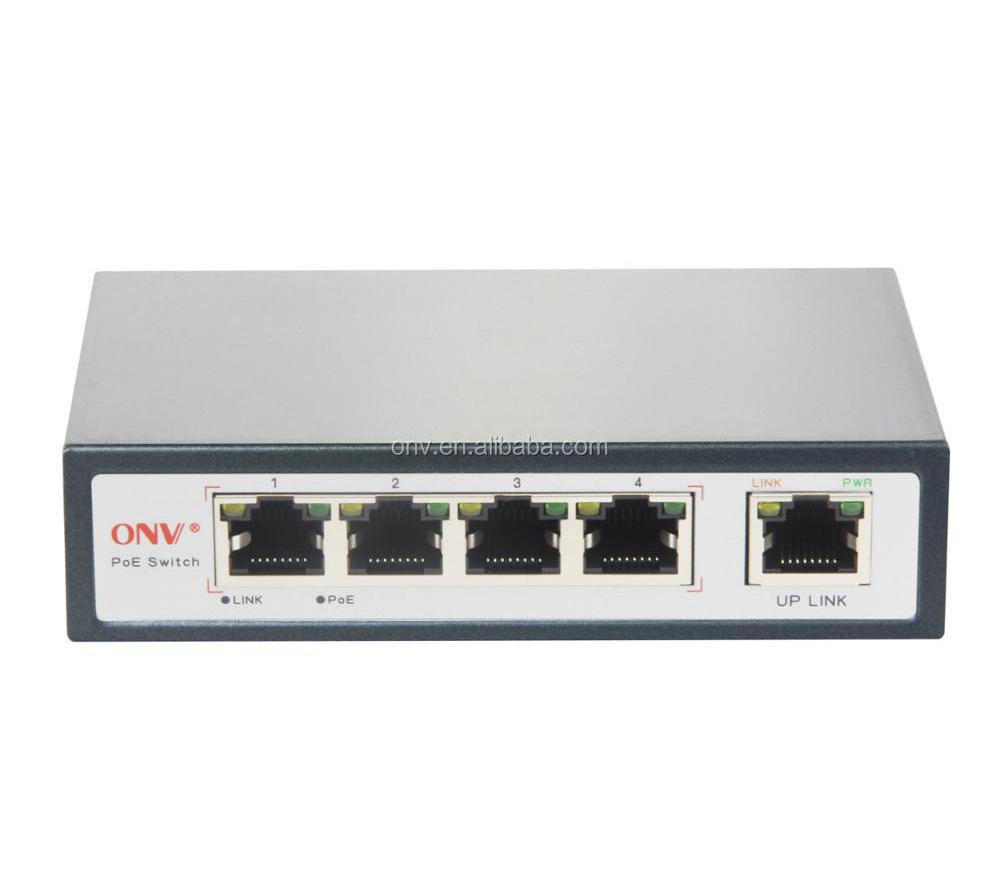

10/100M 4 ports poe Switch with 4 POE Port and 1 RJ45 uplink port 802.3af/at
Description:
Model number POE31004P,t his 5-port PoE switch features with compact and convenient design, coming with durable metal case. It can be easily placed on your desktop or a wall with the mounting hardware in the package box. The fan-less and no noise design is suitable for your small office environment.
This built-in power adapter PoE Switch integrates the data switching with Ethernet power supply into one unit, saving much space, reducing cables and no need to connect with the power outlets, all in all, which lowering installation costs .
Product features:
5-Port 100M PoE Switch with 4 PoE Ports and 1 Uplink Port
Supply power to 5 classes Ethernet wireless access point (AP) and IP surveillance cameras
Port 1 to port 4 is compatible with IEEE802.3af standard power
5x 10/100 Mbps automatic adjustment RJ45 ports
Compatible with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standard
Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
Auto-flip ports(Auto MDI/MDIX)
The uplink port has lighting-proof function(Port 5 meets the secondary lightning protection)
Maximum PoE Power: 60W( All PoE ports, that is port 1 to port 4), and each port maximum power is 15.4W
Store-and-forward architecture
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall
Target Industries: HD monitor transmission and power supply Wireless AP layout transmission and power supply Network telephone transmission , intelligent house and home system Intelligent transportation supervisory system ( ITS ) High-speed Way supervisory/Tele-Communication System Security protection system, TV medical treatment Long-distance Muti-media Schooling, Campus monitoring Long-distance broadcast television transmission system High-building Security Protection, Military Tele-Com projects
Specifications :
|
Product |
5-PORT 10/100 SWITCH WITH 4-PORT POE and 1 RJ45 uplink port |
|
Type |
POE31004P |
|
Network Ports |
5 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
|
Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
|
PoE Distance |
100meters |
|
Transmission Method |
Store-And-Forward |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
Performance Specifications |
Bandwidth : 1.6 Gbps |
|
Network latency : Less than 20 μ s for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission |
|
|
Buffer memory : 96 KB embedded memory per unit |
|
|
Address database size : 1,000 media access control (MAC) addresses per system |
|
|
Addressing : 48-bit MAC address |
|
|
Mean Time Between Failure (MTBF) : 190,000 hours (~ 21 years) |
|
|
Acoustic Noise : 0 dB |
|
|
Network Protocol and Standards |
IEEE 802.3i 10BASET |
|
IEEE 802.3u 100BASETX |
|
|
IEEE 802.3x Flow Control |
|
|
IEEE 802.1af DTE Power via MDI |
|
|
IEEE 802.3af |
|
|
Status LEDs |
System: Power, PoE Maximum Power |
|
Per Port: Link, Activity, Speed, PoE Active, PoE Fault |
|
|
Power Supply |
Total Power Consumption: 60 W maximum |
|
PoE Watt budget: 56W |
|
|
IEEE802.3af Power Consumption: 56W maximum (Ports 1 – 4) |
|
|
48VDC, 1.25A power output; plug is localized to country of sale |
|
|
Physical Specifications |
Dimensions (H x W x D) : 28 x 85.2 x 118.7mm |
|
Weight : 0.38kg |
|
|
Environmental Specifications |
Operating temperature: -20 to 55 ° C |
|
Storage temperature: -20 to 75 ° C |
|
|
Operating humidity: 90% maximum relative humidity, non-condensing |
|
|
Storage humidity: 95% maximum relative humidity, non-condensing |
|
|
Operating altitude: 10,000 ft (3,000 m) maximum |
|
|
Storage altitude: 10,000 ft (3,000 m) maximum |
|
|
Electromagnetic Emissions |
CE mark, commercial |
|
FCC Part 15 Class B |
|
|
VCCI Class B |
|
|
EN 55022 ( CISPR 22 ), Class B |
|
|
Safety |
CE Mark ,commercial |
|
CE/LVD EN60950 |
|
|
Warranty |
1 years for PoE Switch |
|
2 years for power supply |
|
|
Package Contents |
5-PORT 10/100 SWITCH WITH 4-PORT POE BUILT IN POWER (POE31004P-N) |
|
AC Adapter |
|
|
Installation guide |
|
|
Warranty/Support Information card |
Order Information:
Product Model: POE31004P
Product Description: 5-port 10/100M PoE switch, among which port 1 to port 4 support PoE and IEEE 802.3af international standard, each port power is 15.4W, the whole power 65W Ordering Note: Default PoE power supply type is end-span(12, 36 line pair), mid-span(45, 78 line pair) optional
Accessories in the package :
|
Package Contents |
5-PORT 10/100 SWITCH WITH 4-PORT POE BUILT IN POWER (POE31004P) |
|
AC Adapter |
|
|
Installation guide |
|
|
Warranty/Support Information card |
Product size(mm) : 185X113X36MM
Department / Workgroup PoE Switch :
Providing 4-Port PoE in-line power interfaces, the POE31004P can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. For instance, up to 4 PoE IP cameras can be installed around the corner in the company for surveillance demands or up to 4 PoE Wireless AP to build a wireless roaming environment in the office. Without the power-socket limitation, the Switch makes the installation of cameras or Wireless AP more easily and efficiently
Dimension:
Application diagram:
Certification:
Factory picture:
