Product Details

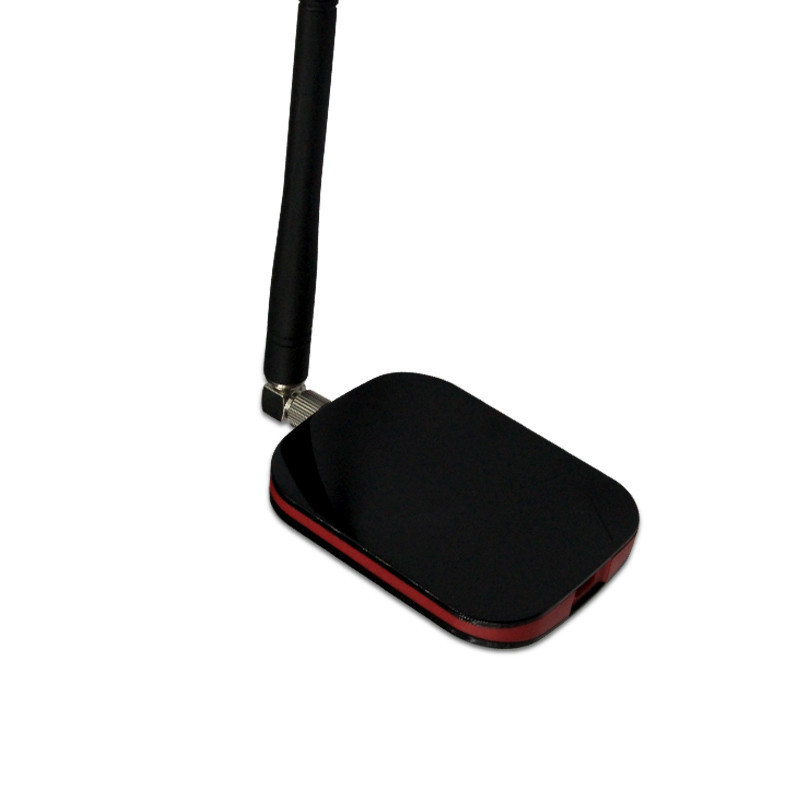

: one BT Wifi gateway unit, two dipole antennas, one 1M USB cable and one needle.
Introduction:
Wifi gateway is a bridge to send advertisement data, sensors data, or beacons data of local BLE devices to internet or server by WiFi. Users can configure its host address, port, request path and other information by connecting ble.
Through the WIFI network, Ankhmaway BT WIFI Gateway can quickly upload all the information broadcasting by Ble devices in the surroundings to the Server. It also can be applied for sensor data transmission, indoor staff positioning, object positioning and other scenarios. It is simple to use, with our App to easily configure the device parameters. While used as a Gateway, it's a Beacon to mark itself.
|
WiFi RF Specification
|
|
|
|
|||
|
Wireless
|
IEEE 802.11b/g/n
|
|
|
|||
|
Network modes
|
Wi-Fi Direct, soft-AP
|
|
|
|||
|
Frequency band
|
2.400 – 2.484 GHz
|
|
|
|||
|
Channel Bandwidth
|
20MHz
|
|
|
|||
|
Modulation
|
OFDM, DSSS (Direct Sequence Spread Spectrum), DBPSK, DQPSK, CCK , 16QAM, 64QAM
|
|
|
|||
|
Maximum receive input level
|
- 10dBm (with PER < 8%@11 Mbps)
|
- 20dBm (with PER < 10%@54 Mbps)
|
- 20dBm (with PER < 10%@MCS7)
|
|||
|
Minimum receive input level
|
- 70dBm (typ. with PER < 10%@54 Mbps)
|
- 70dBm (typ. with PER < 10%@54 Mbps)
|
- 70dBm (typ. with PER < 10%@MCS7)
|
|||
|
Transmit Power
|
17dBm (typical)@802.11b
|
13dBm (typical)@802.11g
|
11dBm (typical)@802.11n
|
|||
|
Range
|
130M in open area
|
|
|
|||
|
Security
|
WPA/WPA2
|
|
|
|||
|
BLE RF Specification
|
|
|
|
|||
|
Receiver Sensibility
|
-96 dBm
|
|
|
|||
|
Range
|
130M in open area
|
|
|
|||
Case customization
For the bulk purchase consumer, we provide the case customization and even the hardware design just for your customized housing
Logo printing customization
We can print your own logo on the case in any color (Gradient color will relatively cost more).
Firmware customization
We provide the firmware customization.you can change the UUID, major, minor and other parameters.
Q1. Do you provide the technical support to the developers?
Re: Sure. After you place an order and get the beacons, we will provide tool APP with API document, and iOS/Android SDK and Android Source Code for your programming.
Q2. Can we brand your product with our company LOGO?
Re: Yes, we will provide customization including logo printing, tooling design for housing, firmware customization, PCB re-design, etc.
Q3. How can we get the samples to test?
Re: You can submit an order in Alibaba or contact us directly. All of the samples can be supplied from stock. Samples will be sent within 1-5 days after paid.
Q4. How will you deliver my goods to me?
A: We always ship samples order and MOQ order by Express ( Door To Door), such as DHL,UPS,Fedex... to enable our customers to get their goods rapidly. We can ship mass order by Air, or Sea, or Express, according to customers' choice.
Q5. What's the warranty of the product?
Re: We supply 6 months warranty from the shipping date if it is quality issue.
Q6. What is the lead time of your products?
A: 1-5 business days for samples order, 7-15 days for MOQ order, 10-30 days for mass production orders (based on different quantities)..
Q7. What is your product quality?
A: We have a QA team to guarantee our products quality. All beacons are 100% manually checking.
|
