Quick Details
-
Weight:
-
as per model
-
Size:
-
as per model
-
Power:
-
0.55kw
-
Weight (KG):
-
300 kg
-
Product name:
-
A700 series available filtration automatic self cleaning water filters
-
Color:
-
Red or Customized
-
Water flow:
-
80~4200 m3/hr
-
Filtration degree:
-
50~3000 micron
-
Pressure rating:
-
10bar/16bar/25bar
-
Cleaning way:
-
Brush
-
Drive way:
-
Motor
-
Control mode:
-
DP/TIMER/MANUAL
-
Connection mode:
-
Flange
-
Operating voltage:
-
3ph/380V/50HZ
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
AIGER
-
Material:
-
plywood box
-
Weight:
-
as per model
-
Size:
-
as per model
-
Power:
-
0.55kw
-
Weight (KG):
-
300 kg
-
Product name:
-
A700 series available filtration automatic self cleaning water filters
-
Color:
-
Red or Customized
-
Water flow:
-
80~4200 m3/hr
-
Filtration degree:
-
50~3000 micron
-
Pressure rating:
-
10bar/16bar/25bar
-
Cleaning way:
-
Brush
-
Drive way:
-
Motor
-
Control mode:
-
DP/TIMER/MANUAL
-
Connection mode:
-
Flange
-
Operating voltage:
-
3ph/380V/50HZ

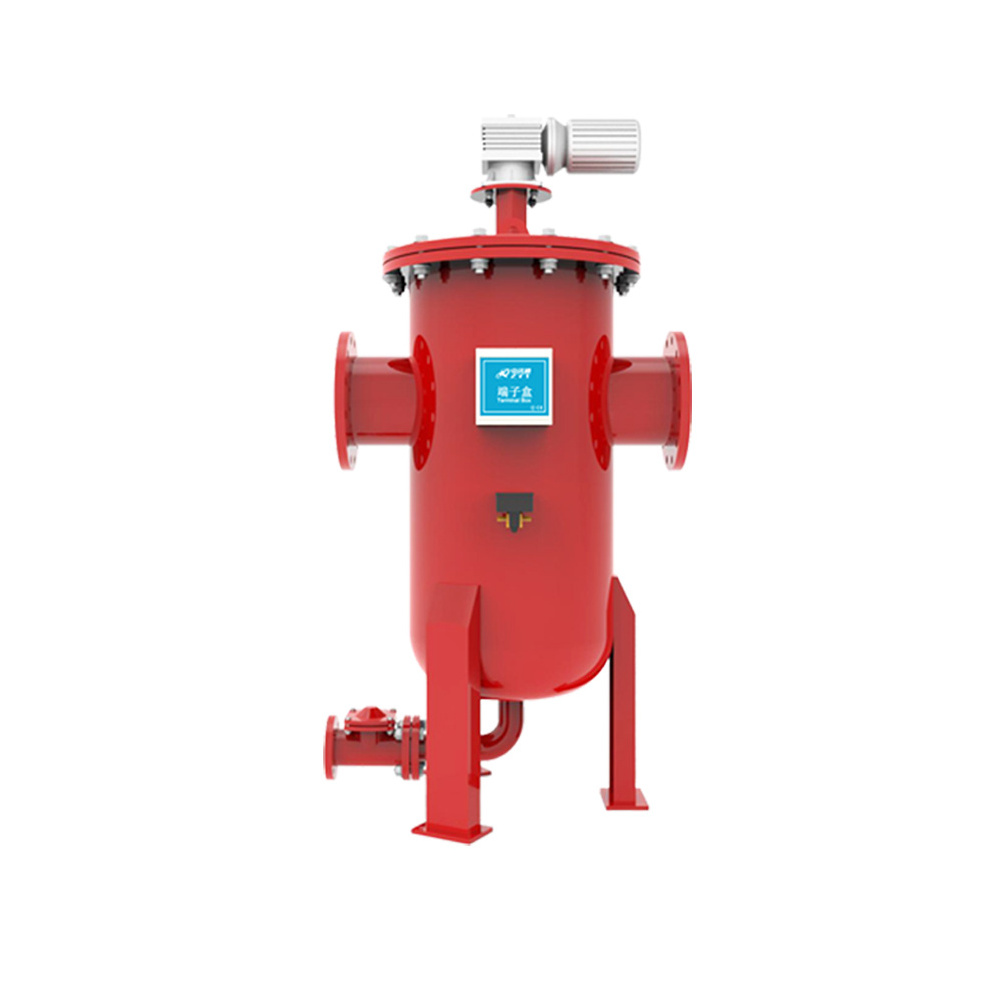

Preprocessing automatic lake water filter for irrigation
The position of inlet and outlet are designed on the side, the installation is very convenient.
The maximum flow rate of up to 4200m³/h, suitable for high water flow.
|
Filter flow |
80-4200 m³/h |
|
Max. recommended working pressure |
10 bar/16 bar/25 bar |
|
Min. operating working pressure during backwash |
2.5 bar |
|
Water temperature range |
0 ~ 65 °C |
|
Available filtration |
From 100micron |
|
Pressure loss |
< 0.1 bar |
|
Connections |
Flange |
|
Backwash time |
20-30 seconds |
|
Water consumption during backwash |
1%-3% of filtered water |
|
Control model |
DP/Timer/Manual |
|
Cleaning way |
Brush |
|
Drive way |
Motor drive |
|
Filter element |
Stainless steel 304 mesh |
|
Filter housing material of construction |
Carbon steel ST37-2/SS304/SS316 |
|
Sewage way |
Fully automatic |
|
Installation |
Vertical |
|
Rated operating voltage |
3ph/380V/50Hz or Customized |
Filtering Process
Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet. The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen.
A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.
Self Cleaning Process
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.
Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.
|
Model |
DN |
Flow |
Dimensions |
||||||||
|
Filtration Area |
Weight |
D |
H |
H1 |
H2 |
H2* |
L |
||||
|
inch |
mm |
m³/h |
cm2 |
Kg |
mm |
||||||
|
A710 |
10 |
250 |
400 |
7910 |
600 |
615 |
1000 |
150 |
1820 |
2400 |
1000 |
|
A712 |
12 |
300 |
600 |
10880 |
650 |
615 |
1200 |
150 |
2120 |
3000 |
1000 |
|
A714 |
14 |
350 |
900 |
13820 |
1250 |
820 |
1200 |
150 |
2220 |
3250 |
1300 |
|
A716 |
16 |
400 |
1100 |
13820 |
1340 |
820 |
1200 |
150 |
2220 |
3250 |
1300 |
|
A718 |
18 |
450 |
1500 |
13820 |
1500 |
920 |
1200 |
150 |
2240 |
3400 |
1400 |
|
A720 |
20 |
500 |
2000 |
21760 |
2000 |
1120 |
1250 |
150 |
2340 |
3400 |
1500 |
|
A724 |
24 |
600 |
2800 |
32640 |
2400 |
1324 |
1300 |
150 |
2440 |
3450 |
1700 |
|
A728 |
28 |
700 |
3200 |
41450 |
3200 |
1428 |
1700 |
180 |
3150 |
5300 |
1800 |
|
A732 |
32 |
800 |
4200 |
55360 |
3600 |
1628 |
1800 |
180 |
3350 |
5350 |
2000 |
AIGER Self-Cleaning Filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
