- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
HYW-21150-020
-
Dimension (L x W x H):
-
21
-
Type:
-

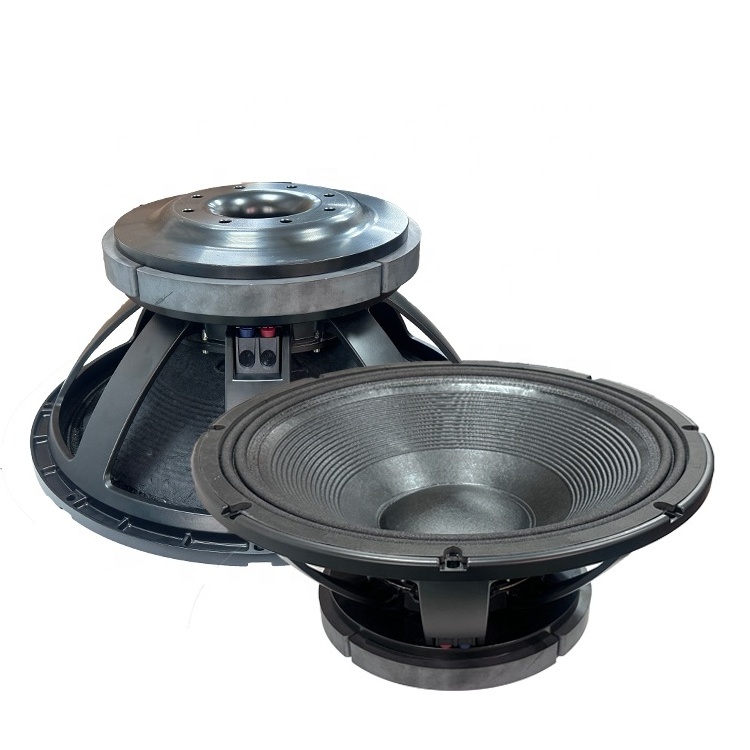

21 inch woofer speaker
-
Sensitivity(1w/1m):
-
99dB
-
Frequency Response:
-
42Hz-500Hz
-
Nominal Impedance:
-
8 ohm
-
Rated Power:
-
3000W
-
Max power:
-
6000W
-
Basket material:
-
Die-casting aluminium
-
Magnet material:
-
Ferrite
-
Voice coil diameter:
-
150mm/6 inch
-
Cone material:
-
Paper
Quick Details
-
Power:
-
3000wrms
-
Frequency Range (Hz):
-
42Hz-500Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
HYW-21150-020
-
Dimension (L x W x H):
-
21
-
Type:
-
21 inch woofer speaker
-
Sensitivity(1w/1m):
-
99dB
-
Frequency Response:
-
42Hz-500Hz
-
Nominal Impedance:
-
8 ohm
-
Rated Power:
-
3000W
-
Max power:
-
6000W
-
Basket material:
-
Die-casting aluminium
-
Magnet material:
-
Ferrite
-
Voice coil diameter:
-
150mm/6 inch
-
Cone material:
-
Paper
Products Description
|
Specification
|
|
|
||
|
Nominal diameter
|
540/21
|
mm/inch
|
||
|
Nominal impedance
|
8
|
ohm
|
||
|
Min impedance
|
5.8
|
ohm
|
||
|
Frequency response
|
40-500
|
Hz
|
||
|
Magnet material
|
Ferrite
|
|
||
|
Sensitivity (1w/1m)
|
99
|
dB
|
||
|
RMS power handling
|
3000
|
Watts
|
||
|
Continuous power handling
|
6000
|
Watts
|
||
|
Voice coil diameter
|
150/6
|
mm/ inch
|
||
|
Winding material
|
Copper
|
|
||
|
Cone material
|
Paper
|
|
||
|
Surround material
|
Cloth
|
|
||
|
T/S Parameter
|
|
|
||
|
Fs
|
41
|
Hz
|
||
|
Re
|
5.8
|
Ω
|
||
|
Qes
|
0.47
|
|
||
|
Qts
|
0.45
|
|
||
|
Qms
|
9.97
|
|
||
|
Vas
|
128
|
L
|
||
|
Rms
|
40.3
|
kg/s
|
||
|
Cms
|
0.03
|
mm/N
|
||
|
Mms
|
453
|
gr
|
||
|
BL
|
38
|
N/A
|
||
|
Mounting information
|
|
|
||
|
Overall diameter
|
549
|
mm/inch
|
||
|
Bolt Circle diameter
|
529
|
mm/inch
|
||
|
Baffle Cutout diameter
|
509
|
mm/inch
|
||
|
Depth
|
363
|
mm/inch
|
||
|
Shipping information
|
|
|
||
|
Net weight
|
34.6
|
KG
|
||
|
Shipping weight
|
37
|
KG
|
||
|
Shipping box
|
570x570x400
|
mm
|
||
