- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG brand
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3500*1600*2000mm
-
Weight:
-
3500 kg
-
Model:
-
YG-CQ850
-
Punching speed:
-
180-200 times/min
-
Feed width:
-
860mm
-
Unwinding diameter:
-
1400mm
-
Die cutting width:
-
400*850mm
-
Precise positioning:
-
±0. 15mm
-
Stacking length:
-
400mm
-
Total pressure:
-
0.6mp
-
Total power:
-
8.5kw
Quick Details
-
Type:
-
Punching Machine
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1000mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG brand
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3500*1600*2000mm
-
Weight:
-
3500 kg
-
Model:
-
YG-CQ850
-
Punching speed:
-
180-200 times/min
-
Feed width:
-
860mm
-
Unwinding diameter:
-
1400mm
-
Die cutting width:
-
400*850mm
-
Precise positioning:
-
±0. 15mm
-
Stacking length:
-
400mm
-
Total pressure:
-
0.6mp
-
Total power:
-
8.5kw

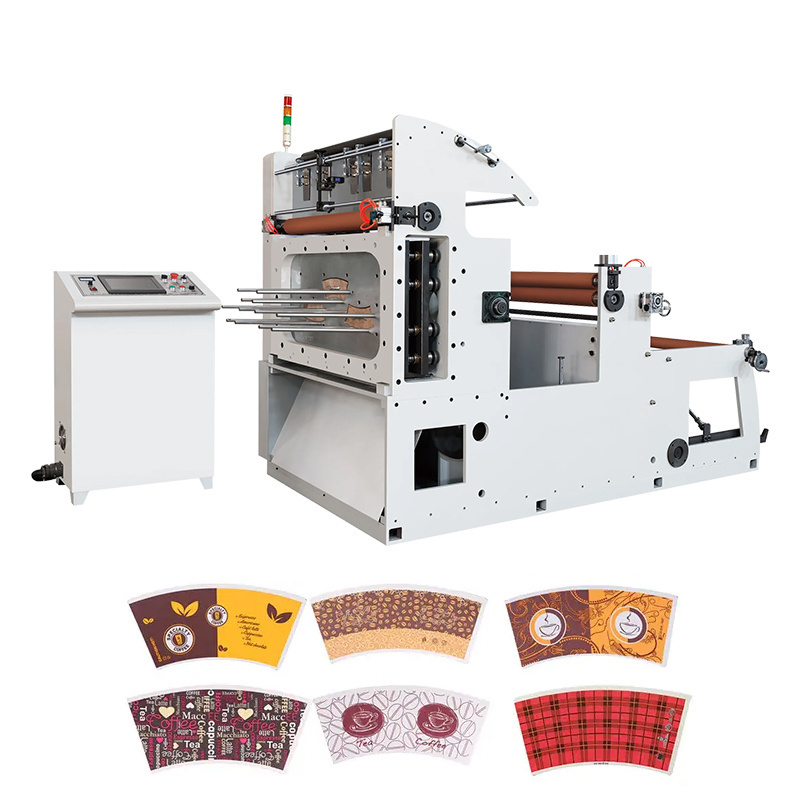

Automatic Paper Roll Die Cutting Punching Machine Price
1. Use ceramic anilox roller to transfer ink and automatically separate from the printing roller when the machine stops.
2. Each group has a separate 360°circumferential plate alignment device and an independent drying system.
3. The feeding adopts magnetic powder brake (automatic constant tension control).
4. The receiving adopts frequency conversion motor (automatic constant tension control).
5. This machine adopts imported frequency conversion stepless speed regulation.
6. Automatic hydraulic lifting is designed for collecting and discharging materials.
7. This machine has complete functions, from feeding, corona, deviation correction, printing, receiving materials to complete at one time
| Punching machine(cutting machine) | |
| Model | YG-CQ850 |
| Punching speed | 180-200 times/min |
| Feed width | 860mm |
| Unwinding diameter | 1400mm |
| Die cutting width | 400*850mm |
| Precise positioning | ±0. 15mm |
| Stacking length | 400mm |
| Total pressure | 0.6mp |
| Voltage | 380V |
| Total power | 8.5kw |
| Weight | 3500kg |
| Dimensions | 3500*1600*2000mm |
Packaging: General export packing or customized packaging according to your requirement.
Shipping:
Professional goods shipping forwarders.
Delivery Time:
20-30working days after deposit.
