Quick Details
-
Fork Length:
-
1220-1520mm
-
Fork Width:
-
160-180mm
-
Overall Dimensions:
-
5020*2250*2340
-
Weight (KG):
-
8800 kg
-
Product Name:
-
telehandler
-
Type:
-
Diesel Foklift
-
Power type:
-
diesel
-
Model:
-
HNT-30
-
Loading Capacity:
-
3 TON
-
Key words:
-
Telescopic forklift
-
Engine:
-
Cummins
-
Brand:
-
SOCMA
-
Capacity:
-
3000KG
-
Color:
-
Customized
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SOCMA
-
Fork Length:
-
1220-1520mm
-
Fork Width:
-
160-180mm
-
Overall Dimensions:
-
5020*2250*2340
-
Weight (KG):
-
8800 kg
-
Product Name:
-
telehandler
-
Type:
-
Diesel Foklift
-
Power type:
-
diesel
-
Model:
-
HNT-30
-
Loading Capacity:
-
3 TON
-
Key words:
-
Telescopic forklift
-
Engine:
-
Cummins
-
Brand:
-
SOCMA
-
Capacity:
-
3000KG
-
Color:
-
Customized
Product Overview

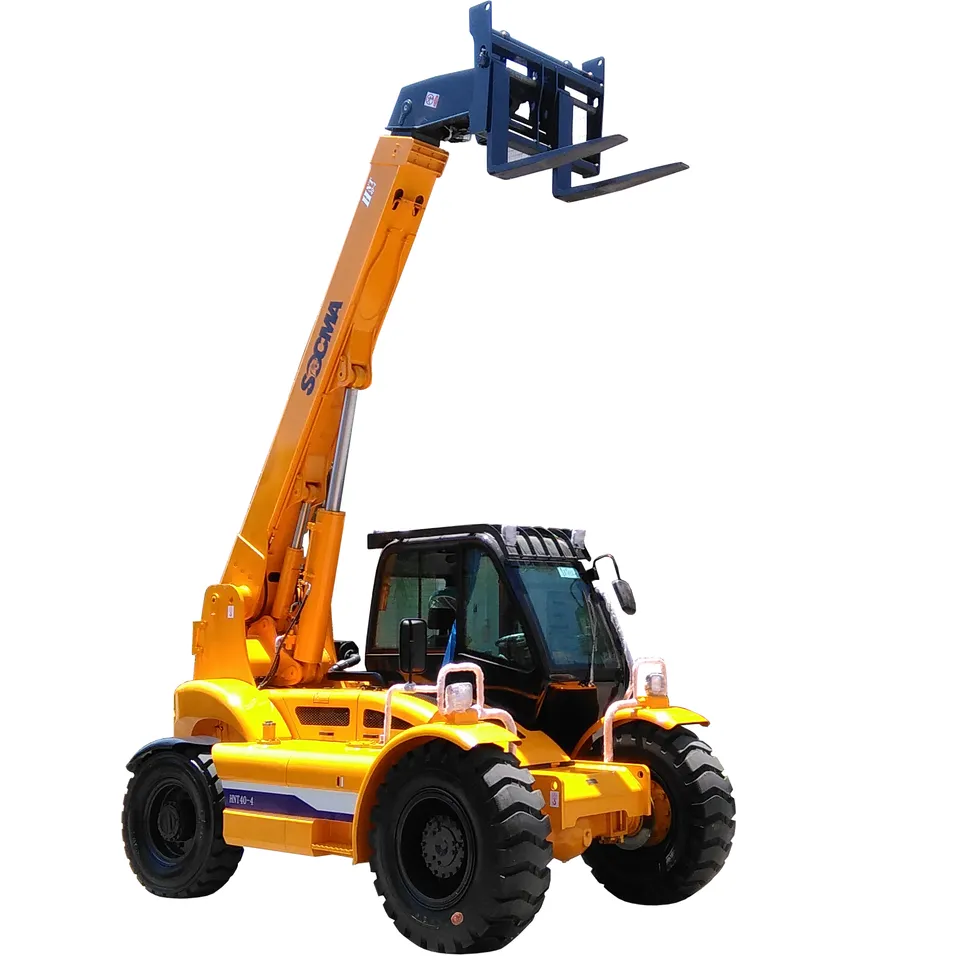

HNT-30
Telescopic Froklift
HNT-30 multi-purpose off-road telescopic forklifts are widely used in construction, agriculture, mining, port logistics and other industries.
PRODUCT SPECIFICATIONS
|
Item
|
|
|
Unit
|
HNT30-4
|
||
|
Main Spec.
|
Rated lifting capacity
|
|
kg
|
3000
|
||
|
|
Load center
|
|
mm
|
500
|
||
|
|
Lifting capacity in max. outreach
|
|
kg
|
1250
|
||
|
|
Max. working height for basic boom
|
|
mm
|
4850
|
||
|
|
Max. working height for whole arm
|
|
mm
|
7000
|
||
|
|
Max. outreach(without fork)
|
|
mm
|
3350
|
||
|
|
Min. outreach
|
|
mm
|
930
|
||
|
|
Min. ground clearance
|
|
mm
|
400
|
||
|
|
Min. turning radius
|
|
mm
|
6200
|
||
|
|
Amplitude elevation angle
|
Max. elevation of the boom
|
°
|
60
|
||
|
|
|
Min. elevation of the boom
|
°
|
-11
|
||
|
|
Operating weight
|
|
kg
|
8600
|
||
|
Overall size
|
Length with fork
|
|
mm
|
5730
|
||
|
|
Width
|
|
mm
|
2390
|
||
|
|
Height
|
|
mm
|
2485
|
||
|
|
Wheel track
|
|
mm
|
1870
|
||
|
|
Wheel base
|
|
mm
|
2700
|
||
|
Transmission system
|
Max. traveling speed without load
|
|
km/h
|
30
|
||
|
|
Max. gradeability
|
|
%
|
≥30%
|
||
|
Tyres
|
Front (2)
|
|
-
|
16/70-24
|
||
|
|
Rear (2)
|
|
-
|
10.00-20-16
|
||
|
Engine
|
DF Cummins
|
Model
|
|
4BTA3.9-C80II
|
||
|
|
|
Rated power
|
kW/rpm
|
60/2000
|
||
