- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GUANGMING
-
Model Number:
-
GM/XY-155
-
Dimension(L*W*H):
-
500*710*560mm
-
Weight:
-
88kg
-
Warranty:
-
12 months
-
Certification:
-
ISO9001:2000
-
Pulverizer type:
-
small coal pulverizer
-
Pulverizing object:
-
coal, coke, bentonite etc
-
Feeding size:
-
6mm
-
Discharge size:
-
<0.2mm
-
Feeding device:
-
screw type feeder
Quick Details
-
Power:
-
1.1kw
-
Capacity(t/h):
-
10-20kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
GUANGMING
-
Model Number:
-
GM/XY-155
-
Dimension(L*W*H):
-
500*710*560mm
-
Weight:
-
88kg
-
Warranty:
-
12 months
-
Certification:
-
ISO9001:2000
-
Pulverizer type:
-
small coal pulverizer
-
Pulverizing object:
-
coal, coke, bentonite etc
-
Feeding size:
-
6mm
-
Discharge size:
-
<0.2mm
-
Feeding device:
-
screw type feeder
New design electric coal pulverizer for sample preparation in laboratory
COAL PULVERIZER APPLICATION:
The XY-155 laboratory pulverizer is used for grinding the coal, coke, bentonite etc material to analyzable fineness quickly for component analysis.
Such as:
Coal industry: Coal, coke, blind coal, clean coal, brown coal, benonite;
The pulverizer is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, chemic, scientific research and so on.
XY-155 Coal pulverizer advantages:
1. Rapid grinding, screw type feeding way;
2 Equipped with 0.2mm sieve that insusres discharge size<0.2mm;
3.No sample leak thanks to perfect full-sealed design;
4. No dust pollution which meet environment requirements;
5. Low working noise and easy for sample collecting;
6. It can work on the flat ground without fixing any base.
Working principle:
Coal, coke, benonite material is feeding from top hopper, then the screw type device conveys the material to grinding chamber, the rotor in the grinding chamber will grind the coal, coke material with high speed to small size, that portion material less than 0.2mm will pass the seive to sample silo.
Technical parameter of the coal pulverizer
| New design electric coal pulverizer for sample preparation in laboratory | |||
| Model No. | GM/XY-155 | ||
| Entrance size(mm) | ≤150 | ||
| Feeding size(mm) | ≤6 | ||
| Discharging size(mm) | 0.2 | ||
| Handing capacity(kg/h) | 24 | ||
| Dimension(mm) | 500*710*560 | ||
| Total weight(kg) | 90 | ||
| Motor power(kw) | 1.1 | ||
| Working power supply(V) | 220V | ||

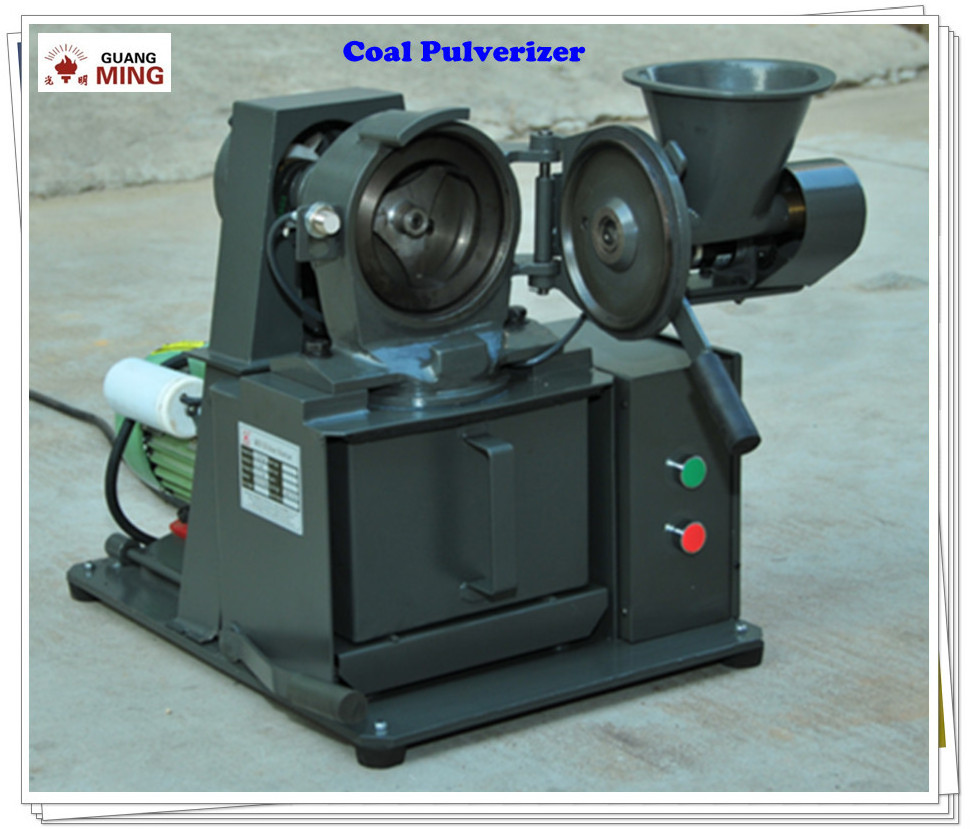

XY-155 Coal Pulverizer picture
Packaging way: Guangming laboratory coal pulverizer standard packaging way is to pack every coal pulverizer a customized plywood case, it can protect the jaw crusher greatly during transportation process;
Shipping way: we have long-term cooperated shipping agent, sea shipping, air shipping and DHL shipping way are ok as customer's requirement.
1. What's the coal pulverizer warranty time:
=>One year
2. How long is the lead time?
=>It is flexible, normally 15-30days, 1-2days is also available when we have stock;
3. What's XY-155 coal pulverizer power supply?
=> Our standard is 220V, 50Hz. We also customize motor to according to customer's local power supply.
