Quick Details
-
Model Number:
-
wind power system FD 3000W
-
Certification:
-
ce
-
Output Voltage:
-
110v/220v
-
rotor diameter:
-
3200mm
-
working way:
-
home use/ solar system
-
special design:
-
Magnetic saturation technology
-
blades choose:
-
3 or 5 pcs
-
delivery time:
-
5-7 days for normal products
-
warranty:
-
Generator for 3 years .other parts for 1-2 years
-
after sales service:
-
Ship the free materials for service
-
promise:
-
Best quality and technical support
-
Starting wind speed:
-
3m/s
-
Rated DC voltage:
-
12V/24V/48v/96v
-
Packing dimension:
-
1110*580*240 mm
Quick Details
-
Rated Power:
-
3kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tanfon
-
Model Number:
-
wind power system FD 3000W
-
Certification:
-
ce
-
Output Voltage:
-
110v/220v
-
rotor diameter:
-
3200mm
-
working way:
-
home use/ solar system
-
special design:
-
Magnetic saturation technology
-
blades choose:
-
3 or 5 pcs
-
delivery time:
-
5-7 days for normal products
-
warranty:
-
Generator for 3 years .other parts for 1-2 years
-
after sales service:
-
Ship the free materials for service
-
promise:
-
Best quality and technical support
-
Starting wind speed:
-
3m/s
-
Rated DC voltage:
-
12V/24V/48v/96v
-
Packing dimension:
-
1110*580*240 mm
1KW 2kw 3kw wind turbine permanent magnet alternator / wind power plant 3KW 5KW / wind type power station 5KW 10KW 15kw
F oshan Tanfon is professional manufacturer for solar power system , wind turbine system factory , we can produce 1KW 2KW 3KW 5KW 8KW 10KW 20KW 50KW solar power system and wind turbine power system.
O ur engineers have been to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan, Bangladesh for installation support.
O ur products have access to many customers recognization, more and more customers are introduced through the customer.
1 KW Wind Power System Normally for house use,can carry about 4lights, 1 computer, 1 color TV, 1 fan, 1 washing machine, 1 electric cooker, 1 water pump ect... This wind power system work with battery, when battery not enough, and there is no wind, it will automatically switch to city power to work loads, and charge battery.
I f you dont know how many power you need for your home use, Please feel free to contact us, we will help you.

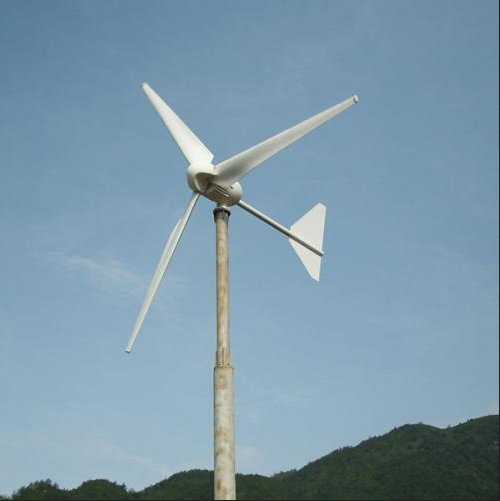

Wind turbine Feature:
1.Rare earth permanent-magnet generator
2.small vibration and tiny friction, stable rotation in higher speed
3.streamlined wind turbine body and blade outline design
4.Blades have 2 kinds ,300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5.Noice level below 55dBaround the wind turbine tower
6.state of the art, workmanship and beautiful appearance
7.Use magnetic saturation technology, with 20years designed life;
8.Select high quality bearing, free to maintenance;
9.Anti-twist device, generator can whirl in each direction
10.Anti strong wind, the blade protect itself automatically,
11.Supply matched controller/inverter, make the system more stable.
|
Off grid wind power supply systems-FD3000 |
||
|
System Basic Information |
Wind generator power:3000W Annual average energy: 7500kWh Supply power for air-condition, refrigerator, water pump, washer |
|
|
Wind generator |
|
|
|
Wind controller
|
Ws3kw/48v wind charger controller Rated Battery Voltage: 48V Wind Turbine Maximum Input: 125A Unload Voltage(factory default): 56V Unload Current(factory default): 60A |
|
|
Battery
|
12V200AH 8PCS, gel battery Rechargeable battery for wind turbine system, high storage for wind energy Free maintenance. Use life:6~8years,Warranty:2years |
|
|
Off-Grid inverter
|
TF3KW/48V pure sine wave inverter 110/120/220/230V output; with grid charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc. |
|
|
Guy cable tower
|
9m tower; It help fasten wind generator in safe altitude. Use steel material with rust prevention. Easy to install |
|
Q: What can be included for this system from TANFON?
A:This system includes: wind turbine, inverter ,sontroller, Gel free maintenance battery,guy cable tower,cables.,etc.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes, we can provide solution of complete set. If you don't need complete set, basic parts are available also.
Q: Is the system solution always the same? Can I customize one?
A: No. We have professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: wind generator's lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years.
Q:how about TANFON solar system quality?
A: we promise for our quality materials, and after sales service. We have many projects in all over the world, contact our sales get the project feedback photos.
Q:what is your trade Assurance?
A:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction!
