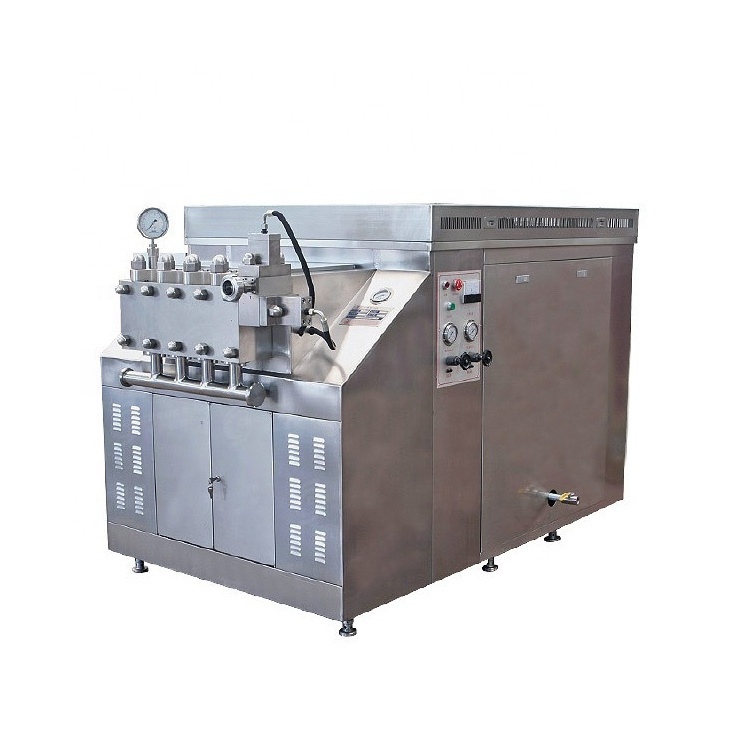

Through the reciprocating motion of the three plungers, the processed materials are sent to the homogenization valve in the form of high pressure, so that the moment when the materials flow through the small gap between the valve disc and the valve seat are subjected to the combined forces of turbulence, cavitation and shear, and the original rough emulsion is processed into fine, uniform and stable liquid-liquid mixed emulsion or liquid-solid dispersion. The average fineness of emulsification is less than 1um, and the average particle size of solid dispersion is less than 2um. It integrates the functions and principles of internal jet, ultrasonic homogenizer, chest mill and ball mill. After high pressure homogenization, the material has many advantages: high stability, reducing stratification, improving storage quality, accelerating reaction time, saving additives, etc.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V,50Hz
-
Power:
-
15Kw
-
Weight:
-
1300 KG
-
Dimension(L*W*H):
-
1250*1000*1350mm
-
Keywords:
-
homogenizer
-
Capacity:
-
500L - 12000L /Hour
-
Material:
-
Stainless Steel 304/316
-
Max pressure:
-
25-100Mpa
-
Feed diameter:
-
25-50mm
-
Discharge diameter:
-
15-25mm
-
Outlet:
-
ZG3/4
-
Certification:
-
CE ISO
-
Speed Range:
-
8000-30000rpm
-
Features:
-
High Efficency Mixing Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZYL
-
Model Number:
-
GJB-2-25
-
Voltage:
-
220V,50Hz
-
Power:
-
15Kw
-
Weight:
-
1300 KG
-
Dimension(L*W*H):
-
1250*1000*1350mm
-
Keywords:
-
homogenizer
-
Capacity:
-
500L - 12000L /Hour
-
Material:
-
Stainless Steel 304/316
-
Max pressure:
-
25-100Mpa
-
Feed diameter:
-
25-50mm
-
Discharge diameter:
-
15-25mm
-
Outlet:
-
ZG3/4
-
Certification:
-
CE ISO
-
Speed Range:
-
8000-30000rpm
-
Features:
-
High Efficency Mixing Machine
Products Description
Homogenizer is widely used in dairy, beverage, chemical, pharmaceutical, textile, biochemical engineering and other industries. It can reduce the problems of easy stratification and precipitation of natural health drinks with protein and plant fiber. Homogenizer is suitable for homogenizing and emulsifying liquid materials with viscosity lower than 0.2pa. S and temperature lower than 80 ℃.
|
MODEL
|
CAPACITY
|
MAX. PRESSURE
|
POWER
|
DIMENSIONS
|
WEIGHT
|
|
GJB-0.5-25
|
500L/H
|
25Mpa
|
4Kw
|
1010*616*975mm
|
650KG
|
|
GJB-1-25
|
1000L/H
|
25Mpa
|
7.5Kw
|
1100*770*1100mm
|
1100KG
|
|
GJB-2-25
|
2000L/H
|
25Mpa
|
15Kw
|
1410*850*1190mm
|
1350KG
|
|
GJB-3-25
|
3000L/H
|
25Mpa
|
22Kw
|
1410*960*1280mm
|
1500KG
|
|
GJB-4-25
|
4000L/H
|
25Mpa
|
30Kw
|
1550*1050*1380mm
|
1600KG
|
|
GJB-5-25
|
5000L/H
|
25Mpa
|
37Kw
|
1605*1200*1585mm
|
1900KG
|
|
GJB-0.5-40
|
500L/H
|
40Mpa
|
7.5Kw
|
1100*676*1065mm
|
780KG
|
|
GJB-1-40
|
1000L/H
|
40Mpa
|
15Kw
|
1410*850*1190mm
|
1100KG
|
|
GJB-2-40
|
2000L/H
|
40Mpa
|
22Kw
|
1550*1050*1380mm
|
1350KG
|
|
GJB-3-40
|
3000L/H
|
40Mpa
|
30Kw
|
1605*1200*1585mm
|
1700KG
|
|
GJB-4-40
|
4000L/H
|
40Mpa
|
40Kw
|
1671*1260*1420mm
|
2000KG
|
|
GJB-5-40
|
5000L/H
|
40Mpa
|
50Kw
|
2000*1400*1500mm
|
2200KG
|
Wording principle:
Related products
About us
FAQ
Q1: Where is your factory? How can I visit your factory?
A: Our factory is located in Henan Province. If you have a travel plan, we warmly welcome you to visit our factory
Q2: Can you send me a video to show me how the machine works?
A: Of course, we made videos of each machine
Q3: How do I know your machine is designed for my product?
A: You can send us your product samples, and we will test them on the machine
Q4: How do I pay for my order?
Answer: Usually we accept L/C, D/A, D/P, T/T, Western Union, MoneyGram and cash payment
Q5: Do you have a Ce certificate?
A: For each model of machine, it has CE certification
