The 316 stainless steel probe adopts humidity chip with high temperature tolerance, the upper limit can withstand 200℃.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HENGKO
-
Model Number:
-
HT406 / HT407
-
Supply voltage:
-
24V DC±10%
-
Current consumption:
-
Max 80mA
-
Electrical connection:
-
Terminal
-
Product name:
-
HT406 temperature ransmitter 200 degrees
-
Humidity range:
-
0~100%RH
-
Temperature range:
-
0~200℃
-
Humidity accurac:
-
±2%RH
-
Temperature accuracy:
-
±0.3℃
-
Response time:
-
≤15s
-
Output:
-
4-20mA current signal with RS485 interface
Quick Details
-
Warranty:
-
6 months
-
Customized support:
-
With or without display
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGKO
-
Model Number:
-
HT406 / HT407
-
Supply voltage:
-
24V DC±10%
-
Current consumption:
-
Max 80mA
-
Electrical connection:
-
Terminal
-
Product name:
-
HT406 temperature ransmitter 200 degrees
-
Humidity range:
-
0~100%RH
-
Temperature range:
-
0~200℃
-
Humidity accurac:
-
±2%RH
-
Temperature accuracy:
-
±0.3℃
-
Response time:
-
≤15s
-
Output:
-
4-20mA current signal with RS485 interface

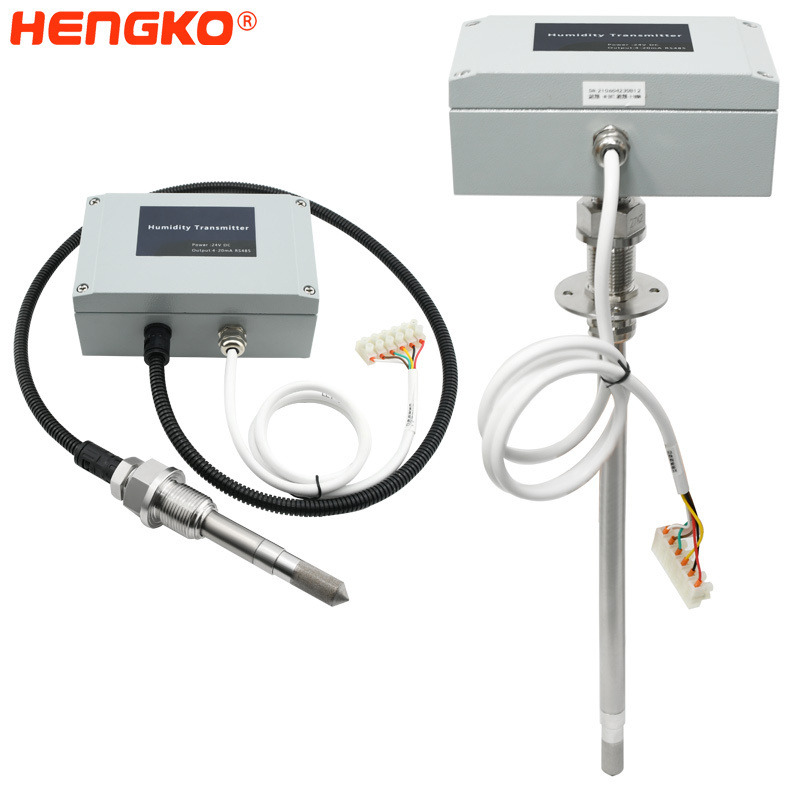

HENGKO 0~200 Degrees Temp Humidity Monitor Sensor Transmitter Anti-Condensation High Temperature Measurement Instruments
Using our accumulated technology and industry experience, we can provide you with the best and more suitable temperature and humidity measurement products, services and solutions that can be effectively applied in your industry
This temperature and humidity transmitter is specialized in strict industrial application with HENGKO RHT series humidity measuring element. It has the advantage of accurately measuring, adapts to a wide temperature range, excellent chemical pollution resistance, steady working and long service time, etc. 2-pin temperature and humidity 4-20mA current signal output.
Max temperature resistance: 200℃
The chip of HT406
HT407
has excellent temperature resistance and can works under the 200 ℃ for a long time.
The special handling of the sensor surface can make sensor keeping working in the chemical contamination.
HT406
HT407
is the best choice in the high temperature harsh environment.
Product Description
|
Humidity range
|
0~100%RH
|
|
Temperature range
|
0~200℃
|
|
Humidity accuracy
|
±2%RH
|
|
Temperature accuracy
|
±0.3℃
|
|
Response time
|
≤15s
|
|
Output
|
4-20mA current signal with RS485 interface
|
Application:
Industrial on-site measuring, Petrochemical gas emission measuring, Thermoelectric gas emission measuring, tobacco industry, drying bak er, environmental test chamber.
Feature:
*
0~100%RH full range measuring
* It can be calibrated in the field
* Temperature, humidity, dew point, mixture ratio, absolute humidity and other 4-20mA output for choice
* Precision measuring - with Switzerland original measuring chip, has excellent accuracy of measuring.
* Widely measuring range - the measuring range of temperature is 0~200℃
* Chemical contamination resistance - excellent chemical contamination ability and can be worked steady in various complex chemical contamination for a long time.
* Digital inteface - with RS485 digital interface with real-time communication, accuraci calibration, multi monitor, etc.
* It can be calibrated in the field
* Temperature, humidity, dew point, mixture ratio, absolute humidity and other 4-20mA output for choice
* Precision measuring - with Switzerland original measuring chip, has excellent accuracy of measuring.
* Widely measuring range - the measuring range of temperature is 0~200℃
* Chemical contamination resistance - excellent chemical contamination ability and can be worked steady in various complex chemical contamination for a long time.
* Digital inteface - with RS485 digital interface with real-time communication, accuraci calibration, multi monitor, etc.
On-site correction
HT406 HT407 has be multi-point corrected at the factory. It also can be corrected via 485 interface or software entering the on-site correction menu doing multi--point correction. Sending us transmitter for calibration also available.
Reasonable structure
1. High gas permeability, fast gas humidity flow and exchange speed;
2. Excellent dust-proof, anti-corrosion and waterproof capabilities (IP65);
3. Protect the PCB module from dust, particle pollution and oxidation of most chemical substances to ensure long-term stable
operation, higher reliability and longer service life of the sensor;
