Quick Details
-
Model Number:
-
SD1000
-
Product name:
-
Portable Handheld VOCs Monitor
-
Model:
-
SD1000
-
Brand:
-
A.M.S Technology
-
Sensors:
-
10.6 eV UV lamp PID sensor(optical)
-
Detection Range:
-
0.001-10000ppm
-
Resolution:
-
1ppb
-
Response Time(T90):
-
2s
-
Detection Accuracy:
-
±3%
-
Weight:
-
700g
-
Country of Origin:
-
China
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
A.M.S. Technology
-
Model Number:
-
SD1000
-
Product name:
-
Portable Handheld VOCs Monitor
-
Model:
-
SD1000
-
Brand:
-
A.M.S Technology
-
Sensors:
-
10.6 eV UV lamp PID sensor(optical)
-
Detection Range:
-
0.001-10000ppm
-
Resolution:
-
1ppb
-
Response Time(T90):
-
2s
-
Detection Accuracy:
-
±3%
-
Weight:
-
700g
-
Country of Origin:
-
China
Products Description

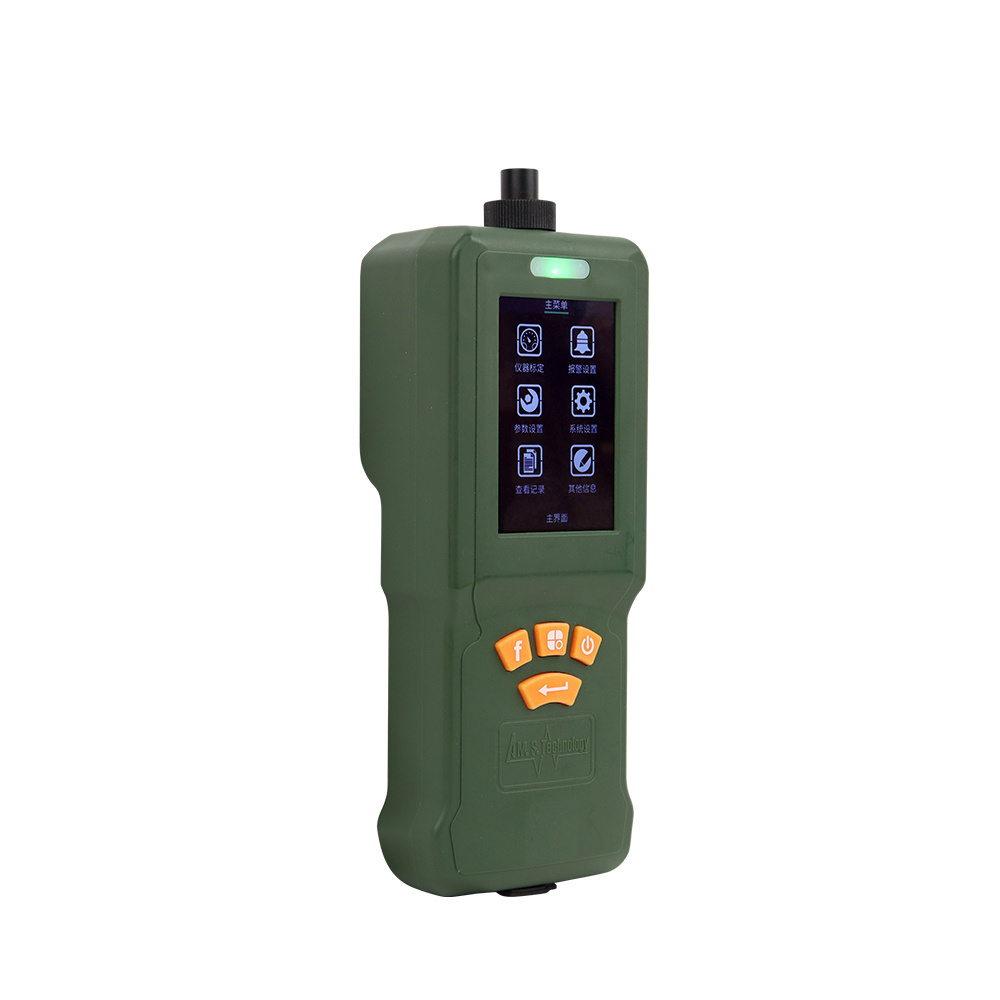

SD1000 is a highly sensitive broad-spectrum handheld volatile organic compound (VOCs) gas detector. It uses a new generation of photoionization detector (PID) to enhance detection accuracy and response time. The detection range is from 1 ppb to 10000 ppm. Through the wireless module, it can achieve wireless data transmission and remote monitoring with the console. It can be widely used in environmental protection, occupational health, emergency rescue, industrial safety, petroleum, and petrochemical industries.
FEATURE AND BENEFITS
•Accurate VOCs detecting
•2-Seconds Response Time
•Build-in Bluetooth and wireless module, •transmit data in real-time
•Easy to operate and maintain
•Auto-cleaning lamp technology
•Wide Linear range and High accuracy
•Large Graphic and Text Display
APPLICATION
•Environmental Protection
•Occupational Health and Safety
•Emergency Rescue
•Petroleum and Petrochemical
•Indoor Environmental Testing
•In-Vehicle Environmental Testing
•National Security
•Battery Manufacturing
•Spray Painting
•Semiconductor Manufacturing
•Pharmaceutical
•Papermaking
•Coking
•Aerospace Industry
•Chemical Industry
Technical parameters
|
ITEMS
|
TECHNICAL PARAMETER
|
|
Sensor Type
|
10.6 eV UV lamp PID sensor
|
|
Detection Range
|
0.001-10000ppm
|
|
Resolution
|
1ppb
|
|
Response Time
|
2s
|
|
Detection Accuracy
|
±3%
|
|
Correction Coefficient
|
Built-in for over 220 VOCs
|
|
Sapmling Method
|
Pump suction/Diffusion(optional)
|
|
Housing Material
|
Engineering plastic with rubber boot
|
|
IP Rating
|
IP66(Power On)/IP67(Power Off),dustproof,waterproof
|
|
Safety Certification
|
Ex ia IIC T4
|
|
Temperature
|
-20℃∽+50℃
|
|
Humidity
|
0%∽95% RH(non-condensing)
|
|
Display
|
Large graphic LCD display
|
|
Language
|
English+symbols
|
|
Direct Readout
|
Real time data, TWA, STEL, peak data, battery voltage, date and time
|
|
Alarm Method
|
95Db@30cm buzzer,flashing red LED
|
|
Alarms
|
Gas exceeds the limit, low battery voltage, sensor failure, low battery.
|
|
Alarm Setting
|
Independent settings for TWA, STEL, high/low alarm limits
|
|
Data Storage
|
Built-in storage capacity for 260,000 data points(approximately 2 months with a 1 minute inveral),including date, time, serial number, user ID, detection point ID, etc.
|
|
Sapling interval
|
Adjustable from 1 to 3600 seconds.
|
|
Data Communication
|
Built-in Bluetooth module for real-time wireless data transmission
|
|
Pump type
|
Built-in
|
|
Pump Flow Rate
|
250 ∽ 400cc/min
|
|
Battery
|
Rechargeable lithium-ion battery: 7.4V/6000mAH
|
|
Operating Hours
|
Continuous operation for up to 16 hours (depending on the working environment and frequency of use)
|
|
Charging Time
|
8 hours for Lithium Battery
|
|
Dimensions
|
229mm×52mm×82mm
|
|
Weight
|
700g(invluding battery)
|
