Quick Details
-
Power (kW):
-
17
-
Weight (KG):
-
1200
-
Product name:
-
Automatic Metal Polishing deburring Machine
-
Application:
-
laser cutting/plasma cutting parts
-
Usage:
-
Workpieces Surface Deburring Polishing
-
Keyword:
-
Metal Polishing Machine Used
-
Function:
-
deburring
-
Processing Width:
-
600mm/1000mm/1600mm
-
Application material:
-
Machined Parts
-
Polishing material:
-
abrasive belt. brush wheel
-
Polishing work piece material:
-
metal, stainless steel, aluminum,copper
-
Other:
-
OEM/ODM/Oversea after-sales support
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JOTUN
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
17
-
Weight (KG):
-
1200
-
Product name:
-
Automatic Metal Polishing deburring Machine
-
Application:
-
laser cutting/plasma cutting parts
-
Usage:
-
Workpieces Surface Deburring Polishing
-
Keyword:
-
Metal Polishing Machine Used
-
Function:
-
deburring
-
Processing Width:
-
600mm/1000mm/1600mm
-
Application material:
-
Machined Parts
-
Polishing material:
-
abrasive belt. brush wheel
-
Polishing work piece material:
-
metal, stainless steel, aluminum,copper
-
Other:
-
OEM/ODM/Oversea after-sales support

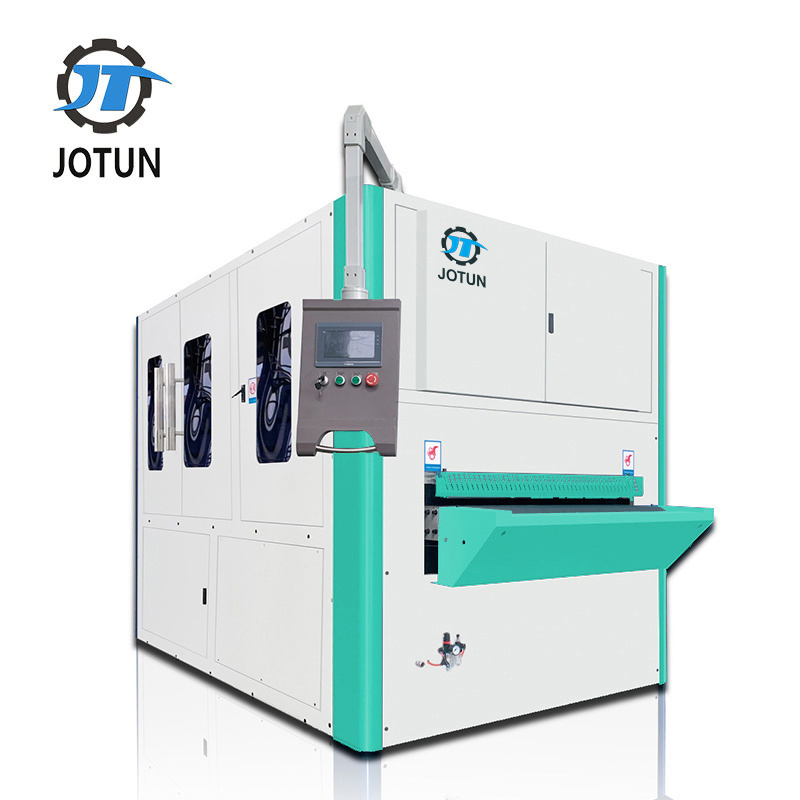

JT-SDJ Metal Sheet Surface Polishing Grinding Deburring Machine
This machine is mainly used for grinding and polishing plates.It uses a buffing wheel to get the best finish. At the same time,the
installation, operation, and maintenance is simple and convenient, move-aided time is short, and low labor intensity Iron plate
deburring / descaling, laser cutting deburring, flat wire drawing, metal wire drawing, stainless steel plate polishing and wire
drawing.
Polishing machine refers to the ultra-precision machining of the workpiece to remove the scratches, spots, and collapse on the
surface of the workpiece, so that the surface of the workpiece is bright, smooth, and has a mirror effect.
installation, operation, and maintenance is simple and convenient, move-aided time is short, and low labor intensity Iron plate
deburring / descaling, laser cutting deburring, flat wire drawing, metal wire drawing, stainless steel plate polishing and wire
drawing.
Polishing machine refers to the ultra-precision machining of the workpiece to remove the scratches, spots, and collapse on the
surface of the workpiece, so that the surface of the workpiece is bright, smooth, and has a mirror effect.
|
Model
|
JT-SDJ
|
|
|
|
|||
|
Processing min width
|
30mm
|
|
|
|
|||
|
Processing thickness
|
0.5-80mm
|
|
|
|
|||
|
Worktable height
|
860-980mm
|
|
|
|
|||
|
Feeding speed
|
0.5-6m/min
|
|
|
|
|||
|
Brush speed
|
8-12r/s
|
|
|
|
|||
|
Function
|
Brushing,Polishing,Deburring,Rust Removal,Chamfering
|
|
|
|
|||
|
Additional configuration
|
Wet polishing+adsorption fan(according to customer require)
|
|
|
|
|||
|
Noted
|
Our machine all Non-Standard Customization(the above date for reference only)
|
|
|
|
|||
|
|
600mm
|
800mm
|
1000mm
|
1600mm
|
|
Processing width
|
650mm
|
850mm
|
1050mm
|
1650mm
|
|
Abrasive belt size
|
1900*650mm
|
1900*650mm
|
2200*1050mm
|
2200*1650mm
|
|
Belt motor power
|
7.5KW*2
|
7.5KW*2
|
11KW*2
|
30KW*2
|
|
Belt+Universal rollers
|
/
|
7.5KW*2.2KW*2
|
11KW+2.2KW*3
|
30KW+2.2KW*4
|
|
Conveying motor power
|
1.5KW
|
1.5KW
|
1.5KW
|
3KW
|
|
Lifting motor power
|
0.37KW
|
0.37KW
|
0.75KW
|
1.1KW
|
|
Machine size
|
1920*1200*2100mm
|
1920*1400*2100mm
|
2100*1700*2100mm
|
2500*1700*2100mm
|
|
Machine weight
|
1300kgs
|
1400kgs
|
1600kgs
|
3500kgs
|
