HDP8500 industrial id card double sided plastic nfc id card printer & encoder delivers dtc passport printer

HDP8500 industrial id card double sided plastic nfc id card printer & encoder delivers dtc passport printer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $18000

≥50 Pieces

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Colors:: 256 shades per pixel

Print Method:: HDP dye sublimation / resin thermal transfer

Resolution:: 300 dpi

Print Platform:: Standard, dual-sided printing

Print Speed (batch mode):: Up to 1200 cards per shift

Accepted Card Sizes:: CR-80

Dual Input Card Hoppers:: 200-card hoppers; Total capacity 400 cards

Output Hopper Card Capacity:: 200-card hopper

Warranty:: 2 years

Quick Details

Max. Resolution:: 300 dpi

Place of Origin:: China

Product Name:: HDP8500

Colors:: 256 shades per pixel

Print Method:: HDP dye sublimation / resin thermal transfer

Resolution:: 300 dpi

Print Platform:: Standard, dual-sided printing

Print Speed (batch mode):: Up to 1200 cards per shift

Accepted Card Sizes:: CR-80

Dual Input Card Hoppers:: 200-card hoppers; Total capacity 400 cards

Output Hopper Card Capacity:: 200-card hopper

Warranty:: 2 years

Products Detail

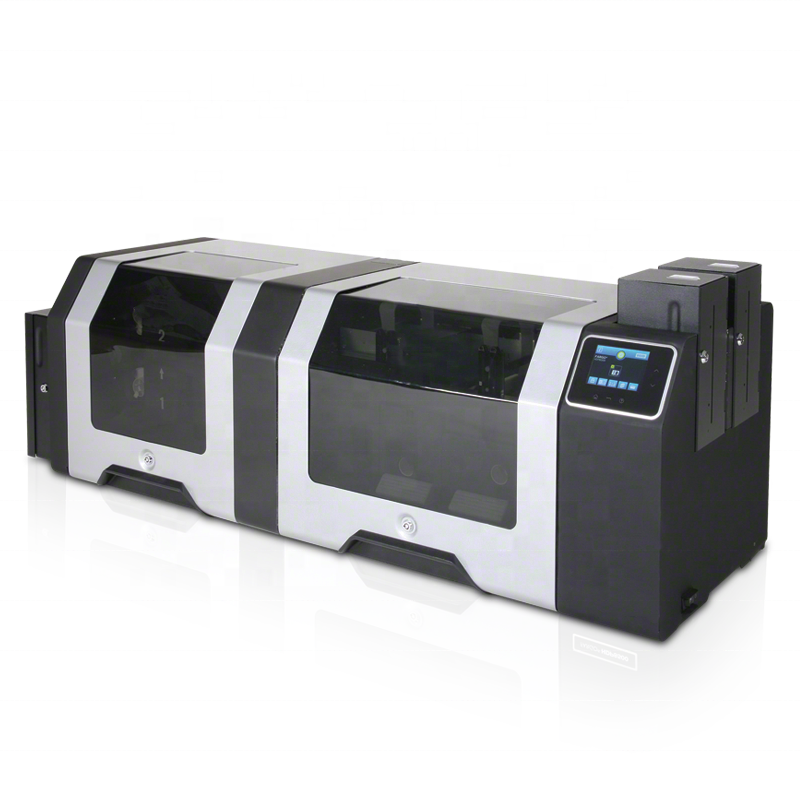

HDP8500 Industrial & Government ID Card Printer & Encoder

The HDP8500 industrial ID card printer and encoder is the superior industrial ID printer for extended-run, high
throughput ID personalization and issuance. It's especially suited for large government ID card programs and laborious service bureau conditions, as well as demanding university and large enterprise environments.
Solid metal cabinetry and precision-engineered interior components ensure a stable printing environment that operates reliably over high-volume, continuous runs. Built for ease-of-use and ideal for even the most challenging environments, standard features include dual-side printing, dual input card hopper with a 400-card input capacity, built-in airflow and filtration system, canopy dust seals, internal temperature sensors, multiple in-line cleaning stations, accessible card path, user-friendly graphical touch screen interface and a FARGO Workbench™ diagnostic utility with Color Assist™ spot-color matching.

Specifications

Dual-Sided Printing	Standard
Printhead Warranty	Lifetime***
Print Resolution	300 DPI
Cards per Shift	Up to 1000/8-hour shift
Single-side YMC* Print Speed	Up to 150 cph / 24 seconds per card
Single-side YMCK* Print Speed	Up to 124 cph / 29 seconds per card
Dual-side YMCKK* Print Speed	Up to 90 cph / 40 seconds per card
Multiple Print Mode Selection	Yes
Simultaneous Printing / Encoding	Yes
Memory	32MB RAM
Printer Password Protection	Yes (Workbench and display)
Locking Card Input Hopper	Yes
Locking Card Output Hopper	Yes
Lockable Printer and Laminator Housing	Yes
Security Resin Erase	Yes (Standard)
Network Data Encryption	Yes
Interface	USB 2.0 & Ethernet standard
One-Wire USB Encoding	Standard
Internal Ethernet Server	Standard
Supported Software Drivers	Windows® XP / Server 2003 / Vista (32 & 64 bit) / Server 2008 R2 (64 bit) / Windows® 7 (32 & 64 bit)
Touch Screen Display	3.2” display for status and help information
Dual-Cooling Fans	Yes
Replaceable Fan Filter	Yes
Card Input Capacity (2 Hoppers)	400
Dual Input Hopper Capability	Yes
Card Output Capacity (1 Hopper)	200
Card Thickness	30-50 mil
Card Exception Feed	Yes
Card Cleaning Station	Two
Cartridge Loadable Ribbons	Yes
Fluorescing/UV Ribbon	Yes
Full-Color – YMC* (maximum images per roll)	750
Full-Color – YMCK* (maximum images per roll)	500
Full-Color – YMCKK* (maximum images per roll)	500
Retransfer Film (maximum images per roll)	1500
Dimensions	15.5" H x 28.2" W x 14.0" D
Weight (printer only)	Dual-sided only: 61 lbs / 27.7 kg
Heavy Duty Metal Enclosure	Yes
Fully Accessible Card Path	Yes
OPTIONS
Dual-Sided Simultaneous Lamination**	Yes
Andon Production Status Light**	Yes
ISO Card Flattener	Yes
Embedded iCLASS SE® Encoder**	Yes
Wi-Fi® Module**	Yes
ISO Magnetic Encoding**	Yes
Contact Smart Card Encoding**	Yes
Contactless Smart Card Encoding**	Yes
Workbench Diagnostic Utility with Color Assist	Included

HDP8500 Industrial ID Card Printer/Encoder Features

1. Multiple processing functions:simultaneous encoding/printing/laminating

2. Two locked input slots with a total capacity of 400cards

3. 3.5 inch graphic touch screen, open with password

4. 2 years full warranty, lifetime warranty on the print head

5. Provide printing protection with durable HDP® consumables

6. Hardware lock

7. Ventilation and filtration system: microporous air filter,large flow fan, dust-proof seal at the door and internal temperature sensor

8. Multiple rows of card cleaners

9. Resin erasing, data protection function

10. A variety of printer options that can be upgraded on site

Ultra high performance

HDP8500 is durable, not easily interrupted, and can complete printing in batches with high productivity. Large-capacity consumables and card input slots help minimize downtime. A clean and stable printing environment and internal card calender can ensure that the produced cards always maintain high quality

Highest security :

HDP8500 meets the security requirements of global government ID card issuing organizations. For example, physical locks can be set on the input/eject slot and the internal waste box can provide protection for cards with incorrect printing or coding.
